K41091

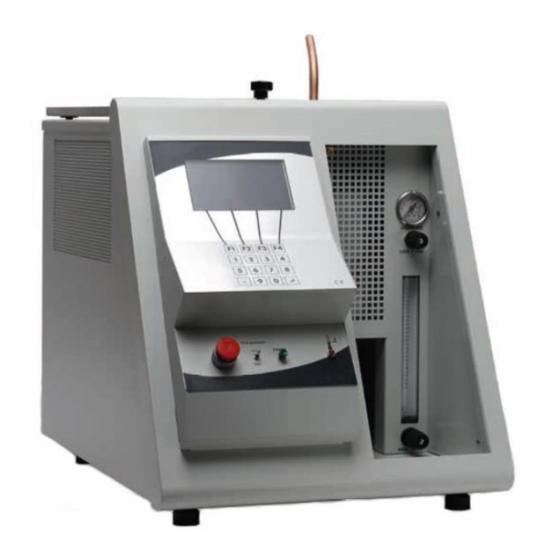

Micro Conradson Carbon Residue
and Ash Tester
Operation and Instruction Manual
REV A .
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Advertisement
Table of Contents
Related Manuals for Koehler K41091
Summary of Contents for Koehler K41091
- Page 1 Ash Tester Operation and Instruction Manual REV A . Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
-
Page 3: Table Of Contents
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual Table of Contents 1 Introduction ........................2 1.1 Koehler’s Commitment to Our Customers ..................... 2 1.2 Recommended Resources and Publications ..................2 1.3 Instrument Specifications ........................3 2 Safety Information and Warnings ................3 3 Getting Started....................... -
Page 4: Introduction
ISO Publication: provide you with the best solutions. You can ISO 10370: Petroleum Products – depend on Koehler for a full range of accurate and Determination of Carbon Residue – reliable instrumentation as well as support for your Micro Method laboratory testing programs. -
Page 5: Instrument Specifications
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual DIN Publication: Test Programs: 2 Preprogrammed 18 User Programmable DIN 51551: Testing of Lubricants and Liquid Fuels – Determination of Carbon Maximum Heating Residue – Conradson Method Rate: 15°C/min... -
Page 6: Getting Started
2 mL Borosilicate Glass Sample Vial Packing List K41000-3 16 mL Borosilicate Glass Sample K41091 Micro Carbon Residue and Ash Tester Vial Cleaning Cable (1) K41100-3 16 ml vials (pack of 144) for single RS232 Serial Cable (2) ... -
Page 7: Descriptions
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual Gas. The gas circuit of the apparatus can be 5. Key Function Buttons. navigation connected to a maximum gas pressure of 2.5 bars through the instruments sub-menus. (250 kPa) with the pipes and collar accessories Note: The function of these buttons and provided. -
Page 8: Operation
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual 1. Gas Inlet Connections. For connection of Air Chimney Extension Pipe in an attempt to further and Nitrogen Gas to the instrument from an evacuate the exhaust fumes. The chimney must external source. -
Page 9: Starting A Test
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual 6. Basic Functions of the Apparatus: NOTE: The calculation of residue percentage can also be determined by the apparatus. Inputting the The apparatus has been designed to perform tests initial and final weight of the samples into the for both carbon residue and ash. -
Page 10: Control Panel Operation
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual 3. Remove the Hot Lid with the provided hook 12. If desired, enter the weights of the samples. accessory. This allows for an automatic calculation of the percentage (ratio) of residue remaining at the end of the test. -
Page 11: Software Configuration Functions
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual The maximum time duration is 240 minutes per segment. The type of gas flow to choose from is For example, to enter 2.45 G, the user must listed in section 5.1 of this manual. -
Page 12: Hardware Configuration Functions
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual of the furnace. This value can be adjusted 3. Calibration Function. This function allows from 600 to 900°C. the user to calibrate the furnace temperature probe. 4. Remote Loading Function. This function 3.1 Physical Calibration. -
Page 13: Maintenance
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual parameters and configuration Depending on the frequency of use and the type of instrument. It is highly recommended to samples being tested, it is recommended to print this logbook before and after each perform routine maintenance procedures. -
Page 14: Temperature Check Of The Furnace
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual Figure 11: Cleaning Cable_Top View Grab the end of the cleaning cable from where the condensate tank normally sits. See Figure 12 below: Figure 12: Cleaning Cable_Bottom View ... -
Page 15: Replacement Parts And Accessories List
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual 6.3 Replacement Parts and Accessories List Please Inquire with Koehler Customer Service for item part numbers. Description Cleaning Cable Mixed Vial Holder Small Vial Holder Large Vial Holder Chimney Extension Pipe... -
Page 16: Diagrams
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual 7 Diagrams 7.1 Flow Meter Calibration Chart -14- K41091-Manual... -
Page 17: Function Flow Chart
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual 7.2 Function Flow Chart -15- K41091-Manual... -
Page 18: Service
Warranty such a way that they cannot be returned to stock for future sale. We, at Koehler, would like to thank you for your equipment purchase, which is protected by the following warranty. If within one (1) year from the... -
Page 19: Notes
K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual Notes -17- K41091-Manual... - Page 20 K41091 Micro Carbon Residue and Ash Tester Operation and Instruction Manual Notes -18- K41091-Manual...
