K41100

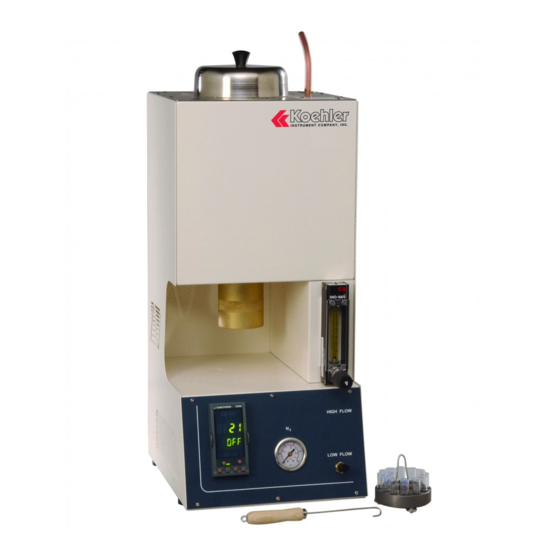

Micro Conradson Carbon Residue Tester
Operation and Instruction Manual
REV A
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koehler K41100
Summary of Contents for Koehler K41100

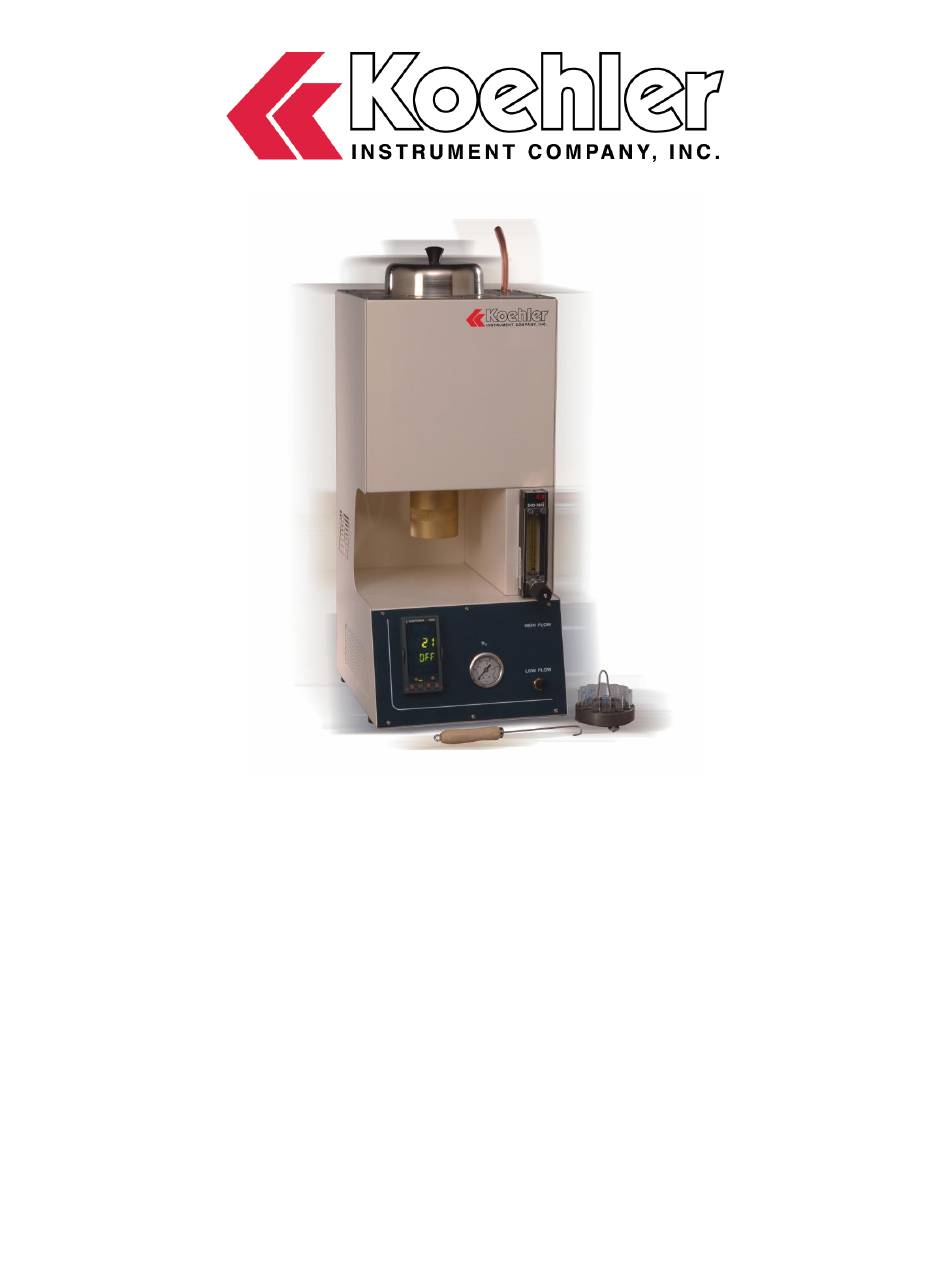

- Page 1 Micro Conradson Carbon Residue Tester Operation and Instruction Manual REV A Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
- Page 3 ASTM D4530 This unit is tested before it leaves the factory, to ensure total functionality and compliance to the above specifications and ASTM standards. Test and inspection records are on file for verification. Jesse Kelly Application Engineer Koehler Instrument Company...
-
Page 5: Table Of Contents
K41100 TABLE OF CONTENTS 1 - GENERAL ..3 1.1 - Safety rules ..3 1.2 - Instructions for use ..4 1.3 - After-sales service guarantee ... 1.4 - Contact in case of emergency ... 1.5 - Symbols used ... -
Page 6: General
K41100 - GENERAL 1.1 - Safety rules Basic precautions must be observed when using Koehler Instrument Company, Inc. instruments and their accessories. 1. Read and understand in full these instructions prior to use. 2. In the case of damage or dropping of the appliance, have it examined by a qualified technician. -
Page 7: Instructions For Use
K41100 In all cases, the operator must wear the necessary protective clothing: gloves, goggles, protective garments. 1.2 - Instructions for use The appliance must be used solely: ►In conformity to the methods described in the instructions ►With the accessories supplied and designated in the instructions ►In accordance with the test and commissioning procedures described in the... -
Page 8: After-Sales Service Guarantee
During this period, any part with defects in the materials of construction or in operation and which is returned to KOEHLER INSTRUMENT CO. will be replaced free of charge, except for consumables (lamps, printing paper, sample bowl, etc.). -
Page 9: Symbols Used
K41100 1.5 - Symbols used Warning To be respected scrupulously to avoid any physical injury or damage to your appliance Maintenance Supplies important information concerning the maintenance of your appliance Remark Provides useful advice for optimum use of your appliance... -
Page 10: Technical Aspect
K41100 2 - TECHNICAL ASPECT 2.1 - Scope of application This appliance is intended for the treatment of samples in compliance with the following standards: ASTM D 4530 2.2 - Technical characteristics Ambient temperature for use 15 to 30° C... -
Page 11: Description Of The Appliance
K41100 2.3 - Description of the appliance 2.3.1 Front panel 8/30... -
Page 12: Rear Panel
K41100 2.3.2 Rear Panel 9/30... -
Page 13: Accessories
K41100 2.3.3 Accessories 10/30... -
Page 14: Commissioning
K41100 - COMMISSIONING 3.1 - Installation Install the appliance on a horizontal and stable surface. The environment must be clean and free from dust. Avoid locations that would expose the appliance to direct sunlight or draughts. Unpack and remove the protective packaging from the appliance and its accessories. - Page 15 K41100 Position the flue extension. No connection for smoke evacuation should be made on the flue or its extension. The flue must remain free to ensure optimum exhausting. Any connection on the flue or its extension risks causing: - condensates on the appliance pipework - a counter-pressure that would interfere with the test by modifying the flow rates and causing leaks through the hot cover of the oven.
-
Page 16: Use Of Instant Connectors
K41100 3.2.1 Use of instant connectors 3.2.1.1 Connection of a pipe Simply push the pipe totally home in the connector. The connection and leak tightness are made instantaneously. 3.2.1.2 Disconnection of a pipe Press the push button on the outside of the connector. -
Page 17: Starting Up
K41100 3.3 - Starting up Power on the appliance by pressing the switch on the rear panel of the appliance. When the temperature regulator is powered on, for three seconds it runs a series of automatic tests. After each sequence, the display shows the temperature measured on the upper display and displays ‘OFF’... -
Page 18: Use Of The Appliance
K41100 4 - USE OF THE APPLIANCE 4.1 - Description of the temperature regulator 4.2 - Starting a test The appliance must be placed under an evacuation hood to allow evacuation of smoke generated by the test. Reminder: It is vital to be familiar with the standards concerning the tests to be initiated. - Page 19 K41100 Prepare the sample or samples in compliance with the standard (marking, weighing, etc.), and place on the vial holder. Check that the condensates container is empty. This operation can only be performed on an oven where the temperature is below 100 °C...
- Page 20 K41100 During a test, the regulator follows five stages: 1. Hold time of ten minutes at the oven temperature at the start of the test. Entry of nitrogen to the oven (high flow rate). 2. Heating according to a ramp of 12.5°...
-
Page 21: Interruption Of A Test
K41100 To reinitialize the program, press and hold the key for 2 seconds (the RUN LED goes out). The regulator is then ready to restart a test. 4.3 - Interruption of a test To stop a test in progress, press and hold down the key for 2 seconds (the RUN LED goes out). -
Page 22: Alarm
K41100 4.4 - Alarm This appliance is equipped with a high temperature safety device. When the temperature of the oven exceeds 550° C, the heating is cut off. The heating power supply will be restored when the oven is cold. -
Page 23: Important Remark
K41100 If the regulator is waiting (no test in progress) the safety device switches the regulator to manual mode (the AUTO LED goes out and the MAN LED lights up). When the oven is cold, the regulator reverts to wait mode. In the case of an alarm, it is always necessary to investigate the cause. -
Page 24: Inspections And General Maintenance Of The Appliance
- INSPECTIONS AND GENERAL MAINTENANCE OF THE APPLIANCE Koehler Instrument Co. has reduced the maintenance requirements of the appliance to the strict minimum. However, in order to ensure reliability of results, it is vital to carry out basic maintenance of the appliance at regular intervals. -
Page 25: Checking The Oven Temperature
K41100 5.2.1.2 Removing carbon deposits from the oven The outlet at the base of the oven may be a point for deposits of carbon, which by accumulation could block the oven exhaust. To avoid total blockage of the oven, it is preferable to clean this part regularly, using the cable supplied. -
Page 26: Main Causes Of Poor Results
K41100 6 - MAIN CAUSES OF POOR RESULTS Since the function of the appliance is to process a sample, the cause of poor results may not be attributable to the appliance. Poor manipulation of samples (with absorption of humidity at the end of the test), inaccurate weighing, an error in entering the weight, an error in identifying the samples may all cause errors in the expression of results. - Page 27 K41100 7- LIST OF ACCESSORIES AND SPARE PARTS Designation Cleaning cable Mixed vial holder Small hole vial holder Large hole vial holder Flue extension Handling hook Complete oven Oven thermo-couple Safety thermo-couple Insulating cover Glass vial, 2 ml Glass vial, 16 ml...
-
Page 28: Annexes
K41100 8 - ANNEXES 8.1 Flow meter abacus 25/30... - Page 29 26/30...
-
Page 30: Diagrams
K41100 9 - DIAGRAMS temperature sensor EUROTHERM 24 08 thermocouple 1 2 3 4 safety relay static relay r elais sécurité r elais statiq ue r elay l og ic nitr og en azote nitr og en azote safety thermocouple thermocouple sécurité... - Page 31 K41100 max. 2.5 bars (2 50 KPa) solenoid valve Furnace électrovanne air input Four NITROGEN valve low flow vanne petit débit max. 2.5 bars (2 50 KPa) solenoid valve électrovanne nitrogen input flowmeter débitmètre NITROGEN solenoid valve manometer électrovanne Furnace...
-
Page 32: Index
K41100 10 - INDEX Abacus ..2, 11, 17, 22, 25 HOLD ..18, 19 After-sales service guarantee ... Holder ..12, 16, 24 Air ..7, 11, 17, 24 Hood..4, 12, 15, 16 Alarm ..2, 19, 20 Hook ... - Page 33 K41100 Thermocouple ... Tube ..13 Safety rules ... Sample..3, 5, 7, 11, 12, 15, 16, 21, 23 Seal..21, 24 Smoke..4, 12, 15 Stud ..22 Switch ..14, 17, 19, 20 Valve ..16, 24 Vial ...
