PRODUCT AND INSTALLATION MANUAL
Whole Home and Light Commercial
Water Filtration Systems
for 1.5" incoming line size
Model NuMbers:
Whole Home and light Commercial Water Filtration & Conditioning systems:
eWs-1354-1.5
Whole Home and light Commercial Water Filtration systems:
CWl-1354-1.5
Retain this Product & Installation Manual
for Helpful Information
Please Register Your System
Revised 12/01/2017 V: N.1.0
Advertisement
Table of Contents
Related Manuals for Environmental Water Systems EWS-1354-1.5
Summary of Contents for Environmental Water Systems EWS-1354-1.5
- Page 1 Whole Home and Light Commercial Water Filtration Systems for 1.5” incoming line size Model NuMbers: Whole Home and light Commercial Water Filtration & Conditioning systems: eWs-1354-1.5 Whole Home and light Commercial Water Filtration systems: CWl-1354-1.5 Retain this Product & Installation Manual for Helpful Information Please Register Your System Revised 12/01/2017 V: N.1.0...
- Page 2 If you don’t read this service guide at least read these 7 simple steps SIMPLe STePS FOR A CORReCT INSTALLATION AND A HAPPY CUSTOMeR set up system and install it on the main water supply coming into the home Page 6-7 outlet inlet from valve...
- Page 3 - Model #’s EWS-SPECTRUM, CWL-SPECTRUM, EWS-1035, CWL-1035 For Illustration Purposes Only: Tank, valve and all contents (as pictured below) for these systems are delivered fully assembled. Plumber installed bypass is required. Pictured: eWs-1354-1.5 CWl-1354-1.5 depth: minimum 22” needed for proper installation overall height 63”...
-
Page 4: Table Of Contents
SIMPLe STePS FOR A CORReCT INSTALLATION AND HAPPY CUSTOMeR ........INSTALLATION DIMeNSIONS FOR eWS-1354-1.5 OR CWL-1354-1.5 ..........IMPORTANT SAFeTY INFORMATION – All Systems Instructions Before Using ......................LOCATION AND SeTUP - All Systems ....................... Unpacking and Inspection... -
Page 5: Important Safety Information - All Systems
IMPORTANT SAFeTY INFORMATION - ALL SYSTeMS CAUTION: Read and follow the information in this manual to minimize the risk of electric shock or personal injury. IMPORTANT! If you are unsure about the installation of your system, contact eWs customer service or consult a professional plumber. IMPORTANT! This system must be installed in compliance with applicable state and local codes, law, and regulations. -
Page 6: Where To Install The System
location and setup UNPACKING AND INSPeCTION - Check the system components for damage or missing parts. WHeRe TO INSTALL THe SYSTeM Place system on the main water supply in order to supply filtered water to the entire home. Place the system where you want to install the unit. Whether inside or outside, make sure the unit is level and on a firm base. ... -
Page 7: Installation Instructions - All Systems
installation Instructions - all systems - plumbing connections - bypass INSTALLATION Turn off gas or electric supply to the water heater(s). Turn off the main water supply. open a hot and cold faucet to drain house water pipes. NOTe: Keep those hot and cold faucets open until these instructions tell you to close. Move the assembled system into installation position and check that Valve is securely fastened to the Tank. -
Page 8: Drain Line
valve - big picture of flow direction in & out Valve Back View - Outlet Side drain line Outlet Inlet outgoing filtered water incoming to the home raw water from supply A flexible capability will assist with the installation where the rough plumbing and finish measurements are slightly off. WARNING: All threaded connections: do not use pipe joint compound or pipe dope. - Page 9 bypass - big picture with some great information FOR ILLUSTRATION PURPOSeS ONLY: This is an example of 3 valve bypass using corrugated flexible stainless to make the final connections with the valve. Configuration may vary ReCOMMeNDATION LET’S BUILD ThE ByPASS AgAInST ThE WALL, use less space and make the correct connections: 1.
- Page 10 installation Instructions - all systems - drain connections A word about the proper installtion of a drain line. It appears simple, however if simple mistakes are made it can create many problems associated with this or any system. Please read the instructions below to avoid any issues. Plumb rigid tubing only (PVC recommended if code applicable) directly to the 3/4”...
- Page 11 installation Instructions - all systems - electrical connection INSTALL eLeCTRICAL CONNeCTION Connect electrical power by plugging the system nto a standard grounded and unswitched 110/115/120v electrical outlet. If outlet is over 16 feet away use 18 gauge extension cord to connect up to 100 feet away. Do not exceed 100 feet. do not cut or splice original equipment.
-
Page 12: Set The Time Of Day

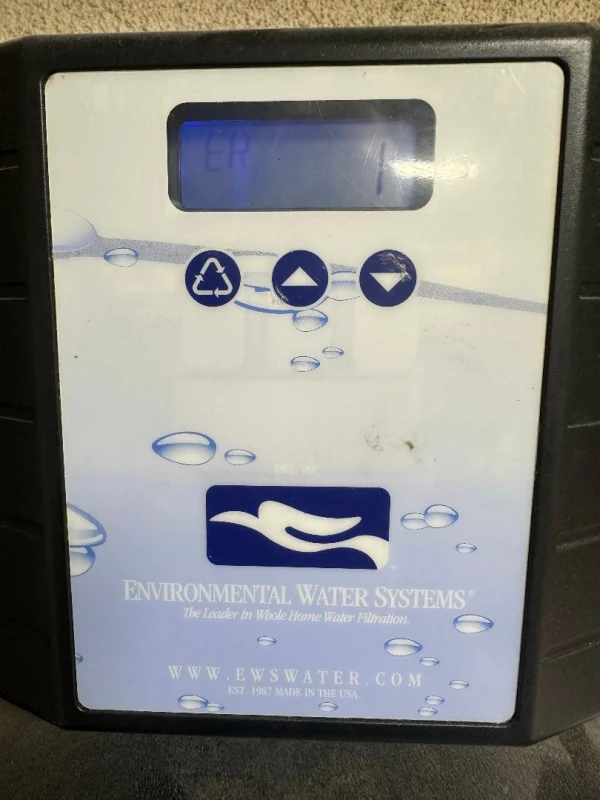

installation Instructions - all systems - set the clock SeT THe TIMe OF DAY SET TIME OF DAY: a. Press and Hold the up or down button for 2 seconds. 10:29PM Time of day screen will appear b. Press the shift button to select what digit you want to change Note: The hour or minutes you are changing will be __ underlined. - Page 13 flush the system and what the system is doing START UP TO FLUSH THe SYSTeM NoTe: day & Time are the only changes needed. Press the extra Cycle button extra system does not need any Cycle additional programming. Button Please follow the instructions and allow system to run through CYCLE 1 00:09:59 screen will change to Cycle 1...
- Page 14 check the drain water and put system in service CYCLE 3 00:09:59 Observe the drain water during Cycle 3. Rapid Rinse RAPID RINSE If the water is running clear - proceed to Step #16. If the water remains grey - go back to Step #13 on Page 13. look for clear minimum water coming...
-
Page 15: System Ready For Use
go through home checklist and check your work System is ready for use. Turn on gas or electric supply to the water heater(s). To ready home for filtered water, please flush all the water throughout the home. open as many hot and cold faucets through out the home as possible, remove the aerators or any restriction at the end of the faucets, run tubs, flush toilets,... - Page 16 ICN Manifold for Conditioning. eWs-1354-1.5 system - 2 ICN’s not Shown: optional stainless steel cover & plastic dome for 1354 sized tanks only. CAuTIoN: If installing other equipment in addition to this system - Contact customer service for proper order of installation...
-
Page 17: Warranty
Warranty Notification - As Published and Available Online Notification: This warranty is referenced by EWS, Inc. in all literature, addressed in general Terms and Standard Conditions of Sale, and is published in its entirety in all EWS, Inc. product manuals, websites, and in all service guides supplied with all product. Limited Warranty: EWS, Inc., a nevada corporation, hereby warrants all products to the original consumer purchaser to be free from defects in material and workmanship as stated in the following paragraphs:... - Page 19 left blank if any adjustments have been made to backwash frequency (up to 10 days for a water conservation setting) or any other settings, this is a good page to write those notes...
- Page 20 Digestive: Crohn’s & Colitis • • • • • • • oceans Inland Water Ways Wetlands Forestry soil ALL FILTRATION PRODUCT PROUDLY MADE & ASSEMBLED IN THE USA EWS Logo and Environmental Water Systems are Registered Trademarks and the Property of EWS, Inc.
