Summary of Contents for Textron BROUWER TR130

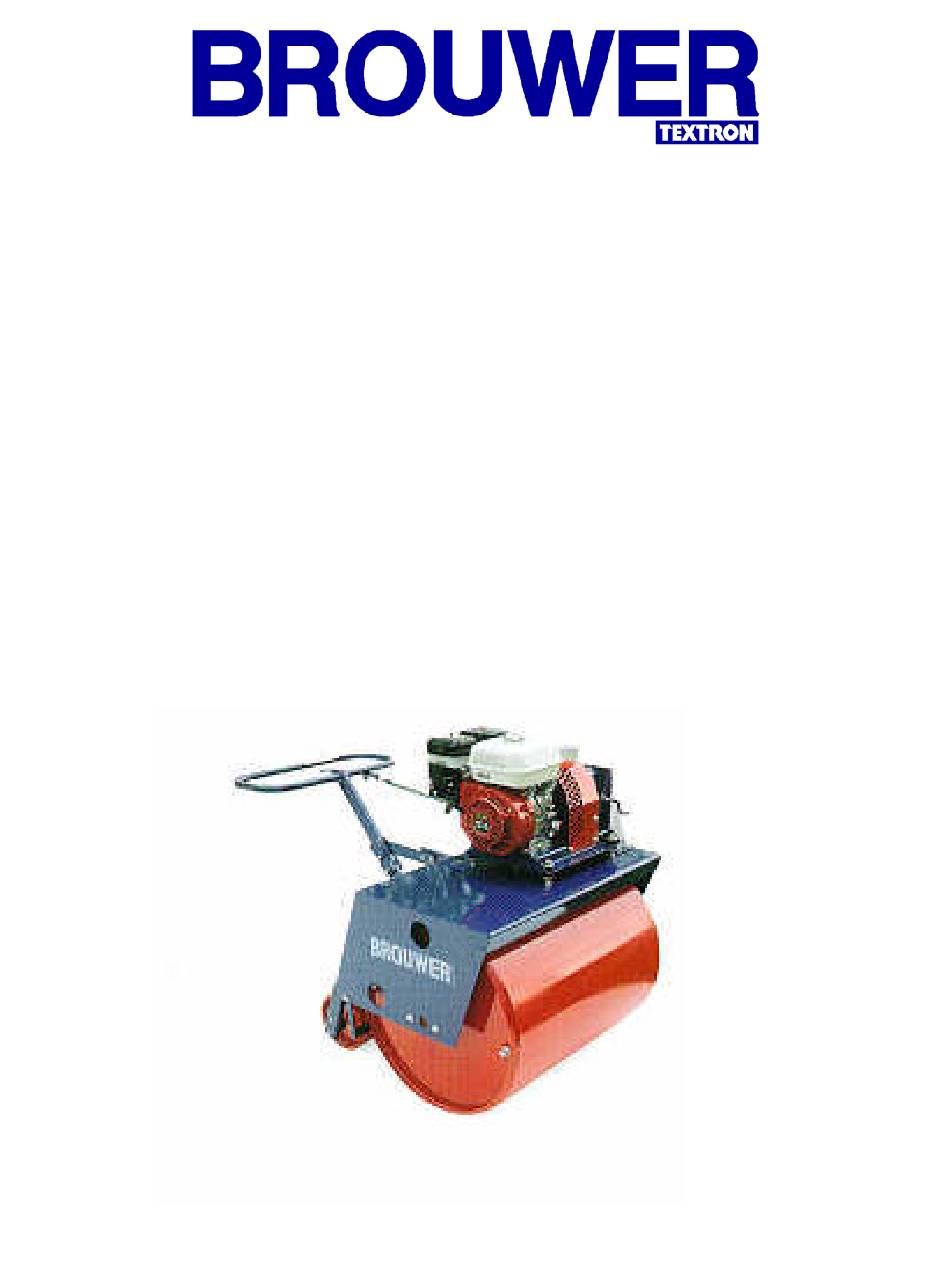

- Page 1 TURF ROLLER Model TR130 Start ing Se rial No. 1001 Owner / Op era tor's Man ual Il lus trated Parts List Form # 350019...
- Page 2 289 N. Kur zen Rd., PO Box 504, Dal ton, OH 44618 Tel. (330) 828- 0200 Fax. (330) 828- 1008 Date of Pur chase: Month ________________Day____________________Year _______________ Dealer Name _________________________Phone__________________ Se rial Num ber ________________________ Model Num ber ________________________ AL WAYS GIVE MODEL AND SE RIAL NUM BER WHEN OR DER ING SERV ICE PARTS...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SECTION 1 page Specifications ...................1-1 Description ....................1-1 SAFETY SECTION 2 General Safety ..................2-1 Operator Safety ..................2-1 PRE-START INSTRUCTIONS SECTION 3 Starting Instructions..................3-1 Specifications for Fuels and Oils ..............3-2 OPERATION SECTION 4 Controls ....................4-1 Operating Precautions................4-1 Freewheel Control ..................4-2 SERVICE SECTION 5 Service Schedule ..................5-1... -
Page 4: Specifications
INTRODUCTION section 1 DESCRIPTION The Turf Roller TR130 is the compact roller that is easy to operate and transport - to get that rolling job done quickly. It has the dual fill / drain plugs and special rounded-edge design roller to prevent turf damage and a large rear support roller. -
Page 5: General Safety
SAFETY section 2 ATTENTION: This symbol ATTENTION: Your safety identifies potential health and the safety of others is and safety hazards. It involved. marks safety precautions. BE ALERT! SIG NAL WORD DEFI NI TIONS Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 6: Pre-Start Instructions Section
PRE-START INSTRUCTIONS section 3 SPECIFICATIONS FOR FUELS AND OILS BEFORE STARTING: EN GINE OIL 1. READ SAFETY DE CALS Fill the crankcase with oil that meets API service designation SF, SF/CC, or SF/CD. Do not mix brands 2. Check en gine and hy dro static trans mis sion oil lev els. - Page 7 OPERATION section 4 Operating Instructions EN GINE Always use a slow steady movement when moving The Brouwer Turf Roller is equipped with a 5--1/2 HP the control lever from neutral to forward or reverse engine. so that the machine will not leap forward or reverse Complete details and operation instructions can be -- not only for the safety of the operator, but also to found in the engine manufacturer's manual.
-
Page 8: Operation Section
OPERATION section 4 EN GINE SPEED CON TROL This control is located on the engine. Set engine speed between 2/3 and full throttle as desired. For operation, see the engine manual. Running engine at low throttle settings could cause hydrostatic transmission damage inadequate cooling air flow. - Page 9 SERVICE section 5 PERIODIC MAINTENANCE Check the hydrostatic drive oil level daily. Make sure the oil is at the correct level for hot or cold. Markings for hot or cold levels are located on the breather level indicator. To fill the expansion tank, unscrew the reservoir breather cap. After filling to the correct level, replace the cap.
-
Page 10: Parts Section
PARTS section 6 Engine and Drive Parts Figure 1 rev 10/00 6 - 1 350019... - Page 11 PARTS section 6 Parts List for Figure 1 Part no. De scrip tion Quan tity M5268 ENGINE, HONDA 5.5 HP 115013 CHAIN, ROLLER #50 X 47-1/4" LG 81-055 HALF LINK, #50 81-053 CONNECTOR LINK, #50 301686 GUARD, CHAIN 99-K02 FLANGE BOLT, 5/16 X 1 94-05 FLAT WASHER, 5/16 USS 95-04...
- Page 12 PARTS section 6 Hydrostatic Drive Parts Figure 2 rev 5/00 6 - 3 350019...
- Page 13 PARTS section 6 Parts List for Figure 2 Part no. De scrip tion Quan tity 85-K0312 KEY, SQ. 3/16 X 3/16 X 1-1/2 (C/W ENGINE) 301656 COUPLING, HALF 87-021 INSERT, JS4U BROWNING 301456 COUPLING, HALF 301748 FAN, 7" OD 01-043 SCREW, MACHINE 10-24 X 3/8 F0080 WASHER, #10 SHAKEPROOF...
- Page 14 PARTS section 6 Front Roller Parts Figure 3 rev 5/00 6 - 5 350019...
- Page 15 PARTS section 6 Parts List for Figure 3 Part no. De scrip tion Quan tity A31611 ROLLER ASSY, FRONT (Incl. Ref. 2 - 14) 99-E21 JAM NUT, 3/8 99-K33 BOLT, 3/8 x 2 ALL THREAD GRADE 2 92-07 NUT, 7/16 95-07 FLAT WASHER, 7/16 SAE 90-0712...
- Page 16 PARTS section 6 Sprocket Assembly Parts Figure 4 rev 5/00 6 - 7 350019...
- Page 17 PARTS section 6 Parts List for Figure 4 Part no. De scrip tion Quan tity A31628 ASSEMBLY, SPROCKET IDLER SPINDLE (Incl Ref. 2-11) 301758 SPROCKET WELDMENT, IDLER M5222 PLUG, PLASTIC SNAP IN 1-1/4" G1515 RING, RETAINING, EXT. 3/4 SHAFT L4006 RING, INNER .75"...
- Page 18 PARTS section 6 Decals Figure 5 BEFORE USE: Make sure all guards are in place. Clear area of bystanders. DURING USE: Wear hearing protection. Avoid sudden machine movements, move shift lever SLOWLY. Avoid roll over: - stay off side slopes when rollers are empty. - avoid side slopes greater than 20°...
- Page 19 PARTS section 6 Parts List for Figure 5 Part no. De scrip tion Quan tity A31639 DECAL, PACKAGE (Includes Ref. 2 - 8) 301678 DECAL, F. N. R. 301775 DECAL, MAINTENANCE 301800 DECAL, OPERATING INSTRUCTIONS 301799 DECAL, CAUTION / SAFETY INSTRUCTIONS 401257 DECAL, “BROUWER”...
-
Page 21: Warranty
STATEMENT OF LIMITED WARRANTY BROUWER TURF EQUIPMENT warrants its full line of equipment to be free from defects in material and factory workmanship for a period of 12 months and warrants its 1555, 1560, 1565, 1570, and Rollmax Harvesters to be free from defects in material and factory workmanship for a period of 24 months. - Page 22 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. CALIFORNIA PROPOSITION 65 Battery Warning Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.
