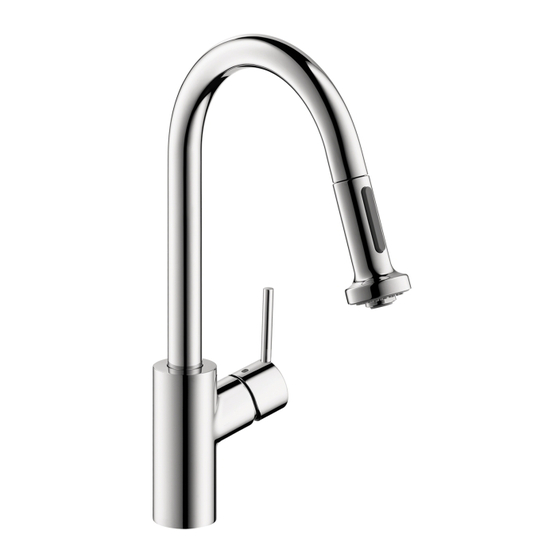

Hans Grohe Talis S SemiArc 2-Spray Pull-Out 04247 0 Series Installation/User Instructions/Warranty
Hide thumbs
Also See for Talis S SemiArc 2-Spray Pull-Out 04247 0 Series:
- Installation/user instructions/warranty (24 pages) ,
- Installation/user instructions/warranty (24 pages)
Advertisement
Quick Links
EN Installation / User Instructions / Warranty
FR Instructions de montage / Mode d'emploi / Garantie
ES Instrucciones de montaje / Manejo / Garantía
Talis S² HighArc 1-Spray
Pull-Down
14872xx1
Talis S SemiArc 2-Spray
Pull-Out
04247xx0
04921xx0
Focus HighArc 2-Spray
Pull-Down
04505xx0
04920xx0
Focus Prep 2-Spray
Pull-Down
04506xx1
Talis S² HighArc 2-Spray
Pull-Down
14877xx1
04310xx1
Talis S² Prep 2-Spray
Pull-Down
04286xx0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hans Grohe Talis S SemiArc 2-Spray Pull-Out 04247 0 Series
Summary of Contents for Hans Grohe Talis S SemiArc 2-Spray Pull-Out 04247 0 Series
- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Talis S SemiArc 2-Spray Pull-Out 04247xx0 04921xx0 Focus HighArc 2-Spray Pull-Down 04505xx0 04920xx0 Focus Prep 2-Spray Pull-Down 04506xx1 Talis S² HighArc 1-Spray Talis S² HighArc 2-Spray Pull-Down Pull-Down 14877xx1 14872xx1 04310xx1 Talis S² Prep 2-Spray Pull-Down 04286xx0...
-
Page 2: Technical Information
English Technical Information Water pressure Recommended 15 - 75 PSI (0.1 - 0.5 MPa) Maximum 145 PSI (1 MPa) Hot water temp. Recommended 120°-140° F (48° - 60° C)* Maximum 158°F (70° C)* Max. flow rate 04310xx1, 04920xx0 1.5 GPM (5.7 L/min) 04921xx0 04505xx0, 14877xx1, 1.75 GPM (6.6 L/min) 04286xx0, 04247xx0,... - Page 3 Français Données techniques Pression d’eau recommandée 15 - 75 PSI (0.1 - 0.5 MPa) maximum 145 PSI (1 MPa) Température d'eau chaude recommandée 120°-140° F (48° - 60° C)* maximum 158°F (70° C)* Capacité nominale 04310xx1, 04920xx0 1.5 GPM (5.7 L/min) 04921xx0 04505xx0, 14877xx1, 1.75 GPM (6.6 L/min) 04286xx0, 04247xx0,...
- Page 4 Español Datos tecnicos Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140° F (48° - 60° C)* max. 158°F (70° C)* Caudal máximo 04310xx1, 04920xx0 1.5 GPM (5.7 L/min) 04921xx0 04505xx0, 14877xx1, 1.75 GPM (6.6 L/min) 04286xx0, 04247xx0,...
- Page 5 Talis S² HighArc 2-Spray Talis S² Prep 2-Spray Pull-Down Pull-Down 14877xx1 04286xx0 04310xx1 Ø1⅛" (28 mm) Ø1⅛" 3⅛" (80 mm) 5¼" (132 mm) 2⅛" 8¾" (222 mm) 3¾" (54 mm) (93 mm) 5¼" (132 mm) 7⅜" (192 mm) 3¾" (93 mm) Ø2"...
- Page 6 Focus HighArc 2-Spray Pull-Down Focus Prep 2-Spray Pull-Down 04505xx0 04506xx1 04920xx0 9¼" (235 mm) 8⅝" (220 mm) 8¼" (210 mm) 7⅜" (187 mm) Ø1⅛" Ø1⅛" (28 mm) (28 mm) 3¾" 3¾" (96 mm) (96 mm) 5⅜" (136 mm) 2½" 2½" 4"...
-
Page 7: Installation / Installation / Instalación
Installation / Installation / Instalación 04286xx0, 04247xx0, 04505xx0, 04506xx1, 04921xx0 04310xx0, 04920xx0 14872xx1, 14877xx1 Español English Français Place the faucet and sealing ring Placez l'anneau d'étanchéite Coloque el oro de sellado y on the mounting surface. et le robinet sur la surface de el grifo sobre la superficie de montage. - Page 8 English Français Español Connect the hot and cold sup- Connectez les tuyaux d'arrivée Conecte las mangueras de sumi- ply hoses to the stops. Use two d'eau chaude et d'eau froide nistro de agua caliente y fría a wrenches. aux tuyau d'alimentation. las alimentaciones de la red.
- Page 9 Español English Français Install the hose weight on the Installez le contrepoids sur le Instale el contrapeso. handshower side of the hose, tuyau. near the loop. Tire del rociador de mano. Debe Tirez sur la douchette. Elle moverse con facilidad y retraerse Test the handspray hose.
- Page 10 > 2 min English Français Español Remove the sprayhead. Retirez la douchette. Retire la ducha. Remove the hose filter. Retirez le filtre. Retire el filtro. Flush the faucet for at least two Rincez le robinet pour un mini- Enjuague el grifo durante un minutes.
- Page 11 Español English Français Flush the hose filter. Rincez le filtre. Enjuague el filtro. Reinstall the hose filter and Installez le filtre et la douchette. Instale el filtro y la ducha. sprayhead.
- Page 12 Set hot water limiter / Positionner le limiteur de température / Ajustar tope 140 °F 50 °F 44 PSI 60° C 10° C 0.3 Mpa 4 mm 100ºF 38ºC 95ºF 140ºF 36ºC 122ºF 60ºC 50ºC 131ºF 108ºF 55ºC 43ºC 17 x 4 mm 3.7 ft-lb 5 Nm...
- Page 13 Replacement Parts / Pièces détachées / Repuestos Talis S² HighArc 2-Spray Pull-Down Talis S² HighArc 1-Spray Pull-Down 14877xx1 14872xx1 04310xx1 Talis S² Prep 2-Spray Pull-Down 97735000 04286xx0 96338000 95562xx0 95560xx0 (14877/14872 / 04310) 95498xx0 37x2 97209000 95376000 (04310xx1) 93218000 (14877xx1, 14872xx1, 04310xx0, 04286xx0) 92730000...
- Page 14 Replacement Parts / Pièces détachées / Repuestos Focus HighArc 2-Spray Pull-Down 04505xx0, 04920xx0 Focus Prep 2-Spray Pull-Down 04506xx1 95562xx0 98193000 (04505xx0) (32x2) 98460xx0 98127000 (11x2) 96338000 95498xx0 97209000 92730000 97735000 93218000 - 04505xx0, 04506xx0 95376000 - 04920xx0 97350000 98231000 (18x1.5) 95140000 95008000 96316001...
- Page 15 Replacement Parts / Pièces détachées / Repuestos Talis S SemiArc 2-Spray Pull-Out 04247xx0, 04921xx0 95560xx0 96338000 93218000 - 04297xx0 95376000 - 04921xx0 95140000 95008000 96316001 96468xx0 97209000 97999xx1 92730000 88624000 98551000 xx = Colors / Couleurs / Acabados 00 = Chrome 82 = Brushed Nickel...
- Page 16 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold froid chaud frío caliente 14877xx1, 04310xx1, 04286xx0...
- Page 17 04505xx0 / 04247xx0 04506xx1/ 04921xx0 04920xx0 14877xx1 only / seulement / solamente " / . 2 ¾ m i n...
- Page 18 Cleaning / Nettoyage / Limpieza Check valve maintenance / Entretien de les clapets anti-retour/ Mantenimiento de las válvulas antirretornos...
- Page 19 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
- Page 20 Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •...
- Page 22 Hansgrohe, Inc. Limited Warranty Offering our customers the highest quality at all times is a funda- • abuse, neglect or improper or incorrectly performed mental part of the Hansgrohe, Inc. company philosophy. We of- installation, maintenance or repair, including the use of fer consumers a limited warranty on our hansgrohe and AXOR abrasive or caustic cleaning agents or “no-rinse”...
- Page 23 TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE This warranty gives you specific legal rights, and you may also PRODUCT FOR AN UNINTENDED APPLICATION), FREEZING have other rights which vary from state to state. WATER, EXCESSIVE WATER PRESSURE, PIPE CORROSION IN THE HOME IN WHICH THE PRODUCT IS INSTALLED, ABUSE, PRODUCT INSTRUCTIONS AND QUESTIONS NEGLECT OR IMPROPER OR INCORRECTLY PERFORMED...
- Page 24 Hansgrohe, Inc. 1490 Bluegrass Lakes Parkway Alpharetta, GA 30004 Tel. 800-334-0455 Fax 770-889-1783 www.hansgrohe-usa.com...
