Altronix WayPoint10A Installation Manual page 3

10. Measure output voltage on terminals marked [COM, 24V, 28V] before connecting devices
(Fig. 2, pg. 4, Fig. 3, pg. 5, Fig. 4, pg. 6). This helps avoiding potential damage.
11. Set illuminated master power disconnect circuit breaker to the (OFF) position
(Fig. 2, pg. 4, Fig. 3, pg. 5, Fig. 4, pg. 6).
12. For 24VAC output connect devices to terminals marked [COM, 24V] (Fig. 2, pg. 4, Fig. 3, pg. 5, Fig. 4, pg. 6).
For 28VAC output connect devices to terminals marked [COM, 28V] (Fig. 2, pg. 4, Fig. 3, pg. 5, Fig. 4, pg. 6).
13. Set illuminated master power disconnect circuit breaker to the (RESET/ON) position
(Fig. 2, pg. 4, Fig. 3, pg. 5, Fig. 4, pg. 6).
14. LEDs will illuminate indicating each output is powered (Fig. 2, pg. 4, Fig. 3, pg. 5, Fig. 4, pg. 6).
15. Upon completion of wiring, secure enclosure door with latches and optional lock.
Caution: Equipment to be installed / serviced by authorized / trained personnel only.
Shut branch circuit power before installing / servicing equipment.
WARNING: When installing in a non-restricted service area use lock or other fastened means
on door latches. This installation should be made by qualified service personnel and should
conform to the National Electrical Code and all local codes.
Output
LED
Terminals
COM & 24V 24VAC
COM & 28V 28VAC
Fig. 1
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of
sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WayPoint AC Series Installation Guide
Terminal and LED Identification Chart:
ON
Normal operating condition.
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
LED Status
No AC output. Blown fuse, illuminated master power
disconnect circuit breaker is tripped or OFF, AC failure.

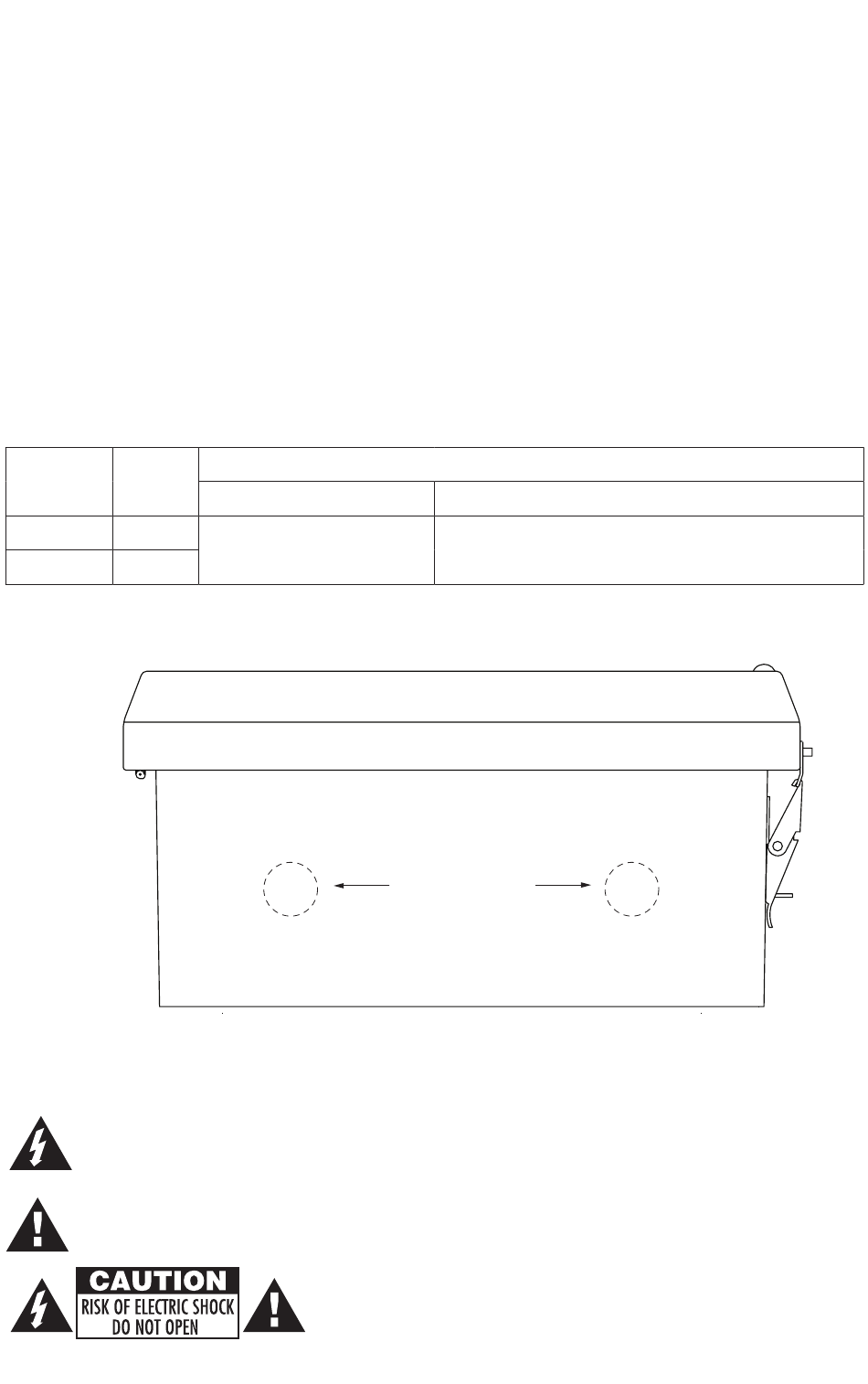

Suggested
Locations
for Wiring Inlets
Bottom of Enclosure
OFF
- 3 -
