- Page 1 3SR-P Series Customer: Customer Part Number: Innodisk Part Number: Innodisk Model Name: Date: Innodisk Customer Approver Approver...
-
Page 2: Table Of Contents
1.8” SATA SSD 3SR-P Table of contents REVISION HISTORY ....................4 LIST OF FIGURES ......................6 1. PRODUCT OVERVIEW ....................7 1.1 I 1.8” SATA SSD 3SR-P ..........7 NTRODUCTION OF NNODISK 1.2 P ..................7 RODUCT IEW AND ODELS 1.3 SATA I .................... - Page 3 1.8” SATA SSD 3SR-P 4. INSTALLATION REQUIREMENTS ................16 4.1 1.8” SATA SSD 3SR-P P ..............16 EFINITION 4.2 E 1.8” SATA SSD 3SR-P ..........16 LECTRICAL ONNECTIONS FOR 4.3 F ...................... 16 ACTOR 4.4 D ....................16 EVICE RIVER 5.
-
Page 4: Revision History
1.8” SATA SSD 3SR-P EVISION ISTORY Revision Description Date Preliminary First Released Dec., 2013 Rev. 1.0 1. Update performance Apr., 2014 2. Update power consumption 3. Add CE/FCC certificates 4. Update TBW Rev. 1.1 Add specification of Quick Erase function Nov., 2014 Rev. - Page 5 1.8” SATA SSD 3SR-P List of Tables 1: D ................... 9 ABLE EVICE PARAMETERS 2: P ....................9 ABLE ERFORMANCE 3: I 1.8” SATA SSD 3SR-P P ......... 9 ABLE NNODISK OWER EQUIREMENT 4: P ..................9 ABLE OWER ONSUMPTION 5: T 1.8”...
-
Page 6: List Of Figures
1.8” SATA SSD 3SR-P List of Figures 1: I 1.8” SATA SSD 3SR-P ..............7 IGURE NNODISK 2: I D 1.8” SATA SSD 3SR-P B ........14 IGURE NNODISK LOCK IAGRAM 3: S .............. 16 IGURE IGNAL EGMENT AND OWER EGMENT Rev. -
Page 7: Product Overview

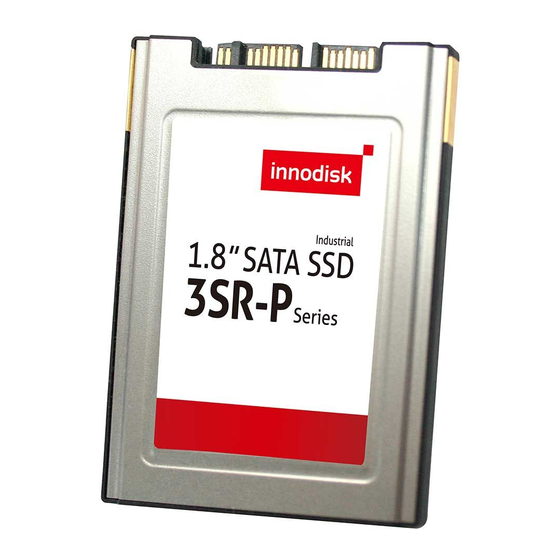

1. Product Overview 1.1 Introduction of Innodisk 1.8” SATA SSD 3SR-P Innodisk 1.8” SATA SSD 3SR-P products provide high capacity flash memory Solid State Drive (SSD) that electrically complies with the Serial ATA (SATA) standard. Innodisk 1.8” SATA SSD 3SR-P is a SATA III 6.0Gb/s flash based disk, which delivers excellent performance and reliability. -
Page 8: Inch Form Factor
1.8” SATA SSD 3SR-P Innodisk 1.8” SATA SSD 3SR-P supports SATA III interface, and is backward compatible with SATA I and SATA II. The SATA III interface can also work with Serial Attached SCSI (SAS) host system, which are located on server motherboards. Innodisk 1.8” SATA SSD 3SR-P is compliant with Serial ATA Gen 1, Gen 2 and Gen 3 specification (Gen 3 supports 1.5Gbps /3.0Gbps/6.0Gbps data rate). -
Page 9: Product Specifications
340 MB/sec 340 MB/sec Write (max.) Note: Based on CrystalDiskMark 3.01 with file size 1000MB 2.3 Electrical Specifications 2.3.1 Power Requirement Table 3: Innodisk 1.8” SATA SSD 3SR-P Power Requirement Item Symbol Rating Unit Input Voltage +5 DC +- 5% 2.3.2 Power Consumption... -
Page 10: Environmental Specifications
The mean number of life units during which all parts of the item will perform within their specified limits, during a particular measurement interval under stated conditions. Table 7: 1.8” SATA SSD 3SR-P MTBF Product Condition MTBF (Hours) Innodisk 1.8” SATA SSD 3SR-P Telcordia SR-332 GB, 25°C >3,000,000 Rev. 1.3 TPS, March 2017... -
Page 11: Ce And Fcc Compatibility
Serial ATA II 3.0Gbps Serial ATA I 1.5Gbps 2.9 Pin Assignment Innodisk 1.8” SATA SSD 3SR-P uses the standard SATA pin-out. See Table 8 for 1.8” SATA SSD 3SR-P pin assignment. Table 8: InnoDisk 1.8” SATA SSD 3SR-P Pin Assignment... -
Page 12: Mechanical Dimensions
1.8” SATA SSD 3SR-P 3.3V Power 3.3V Power, Pre-charge 5V Power, Pre-charge 5V Power Reserved Optional Vendor Specific *Quick Erase Note: * Active low “Quick Erase”, the SSD will be triggered the QEraser function 2.10 Mechanical Dimensions Rev. 1.3 TPS, March 2017... -
Page 13: Assembly Weight
The total weight of SSD will be less than 45 grams. 2.12 Seek Time Innodisk 1.8” SATA SSD 3SR-P does not have magnetic rotating motor so there is no seek or rotational latency for this drive. 2.13 Hot Plug The SSD supports the hot plug function and can be removed or connected when the system is powered on. -
Page 14: Theory Of Operation
Communication with the flash memory occurs through Innodisk’s SATA III controller. 3.2 SATA III Controller Innodisk 1.8” SATA SSD 3SR-P is designed with ID 167, a SATA III 6.0Gbps (Gen. 3) controller. The Serial ATA physical link and transport layers are compliant with Serial ATA Gen 1, Gen 2 and Gen 3 specification (Gen 3 supports 1.5Gbps/3.0Gbps/6.0Gbps data rate). -
Page 15: Error Detection And Correction
Innodisk’s power cycling management is a complete data protection system that functions before and after a sudden loss of power to Innodisk’s SSD. A Low-power detection circuit terminates data writes before an abnormal power cycle. Once power is restored, table-remapping deletes corrupted data to maintain data integrity. -
Page 16: Installation Requirements
Please boot the installation Operation System from CD-ROM, and install Operation System into SSD. 4.4 Device Driver No additional device drivers are required. Innodisk 1.8” SATA SSD 3SR-P can be configured as a boot device or storage device. Rev. 1.3... -
Page 17: Part Number Rule
1.8” SATA SSD 3SR-P 5. Part Number Rule CODE D R S 1 8 - B 5 6 D 6 1.8” SATA Flash Operation Internal Customization Description Disk Capacity Category CH. Flash SSD 3SR-P Mode Temp. Control Code Definition Code 1 (Disk) Code 13 (Flash Mode) -
Page 18: Appendix
1.8” SATA SSD 3SR-P 6. Appendix Rev. 1.3 TPS, March 2017... - Page 19 1.8” SATA SSD 3SR-P Rev. 1.3 TPS, March 2017...
- Page 20 1.8” SATA SSD 3SR-P Rev. 1.3 TPS, March 2017...
- Page 21 1.8” SATA SSD 3SR-P Rev. 1.3 TPS, March 2017...
