- Page 1 3ME3 Series Customer: Customer Part Number: InnoDisk Part Number: InnoDisk Model Name: Date: InnoDisk Customer Approver Approver...
-
Page 2: Table Of Contents
SATADOM-MV 3ME3 Table of contents LIST OF FIGURES .............................. 6 1. PRODUCT OVERVIEW ..........................7 1.1 I SATADOM-MV 3ME3 ..................7 NTRODUCTION OF 1.2 P ........................7 RODUCT IEW AND ODELS 1.3 SATA I ............................7 NTERFACE 2. PRODUCT SPECIFICATIONS ........................8 2.1 C ...................... - Page 3 SATADOM-MV 3ME3 4.2 E SATADOM-MV 3ME3 ................16 LECTRICAL ONNECTIONS FOR 4.3 D ............................16 EVICE RIVE 4.4 P 7 VCC ..............................16 4.5 P ............................17 OWER CABLE 5. PART NUMBER RULE ..........................18 Rev. 1.0 TPS, September, 2015...
- Page 4 SATADOM-MV 3ME3 EVISION ISTORY Revision Description Date Preliminary First Released May, 2015 Rev 1.0 Official Released September, 2015 Rev. 1.0 TPS, September, 2015...
- Page 5 SATADOM-MV 3ME3 List of Tables 1: D ..........................8 ABLE EVICE PARAMETERS 2: P ............................8 ABLE ERFORMANCE 3: I SATADOM-MV 3ME3 P ................. 8 ABLE OWER EQUIREMENT 4: P ..........................9 ABLE OWER ONSUMPTION 5: T SATADOM-MV 3ME3 .................. 9 ABLE EMPERATURE RANGE FOR 6: S...
-
Page 6: List Of Figures
SATADOM-MV 3ME3 List of Figures 1: I SATADOM-MV 3ME3 ......................7 IGURE NNODISK 2: I SATADOM-MV 3ME3 B ................13 IGURE NNODISK LOCK IAGRAM 3: S ..................... 16 IGURE IGNAL EGMENT AND OWER EGMENT Rev. 1.0 TPS, September, 2015... -
Page 7: Product Overview

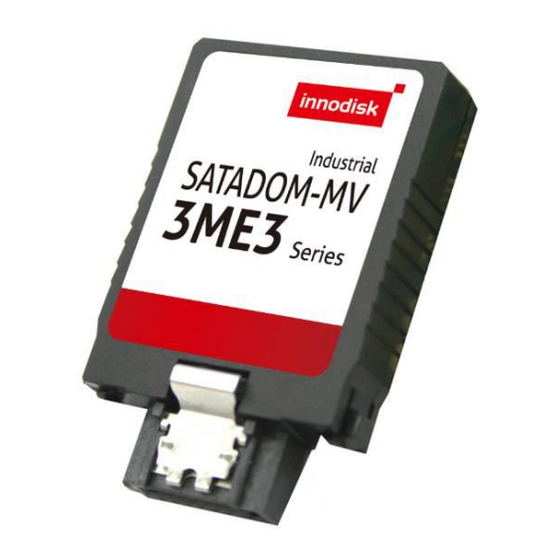

1. Product Overview 1.1 Introduction of Innodisk SATADOM-MV 3ME3 Innodisk Serial ATA Disk on Module (SATADOM) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-MV 3ME3 is designed as the smallest form factor size that could enhance compatibility with various design applications. Particularly the 7th pin of standard SATA 7pin connector can optionally be the built-in power VCC pin. -
Page 8: Product Specifications
21500 IOPS 20600 IOPS Write (QD32) Note: the information is based on CrystalDiskMark 3.01 with file size 1000MB test patent 2.3 Electrical Specifications 2.3.1 Power Requirement Table 3: InnoDisk SATADOM-MV 3ME3 Power Requirement Item Symbol Rating Unit Input voltage +5 DC +- 5% 2.3.2 Power Consumption... -
Page 9: Environmental Specifications
Table 7: SATADOM-MV 3ME3 MTBF Product Condition MTBF (Hours) Innodisk SATADOM-MV 3ME3 Telcordia SR-332 GB, 25°C >3,000,000 Rev. 1.0 TPS, September, 2015... -
Page 10: Ce And Fcc Compatibility
SATADOM-MV 3ME3 support following transfer mode: Serial ATA I 1.5Gbps Serial ATA II 3.0Gbps Serial ATA III 6.0Gbps 2.9 Pin Assignment Innodisk SATADOM-MV 3ME3 uses a standard SATA pin-out. See Table 8 for SATADOM-MV 3ME3 pin assignment. Rev. 1.0 TPS, September, 2015... -
Page 11: Mechanical Dimensions
2.11 Assembly Weight An Innodisk SATADOM-MV 3ME3 within flash ICs, 32GB’s weight is 7 grams approximately. 2.12 Seek Time Innodisk SATADOM-MV 3ME3 is not a magnetic rotating design. There is no seek or rotational latency required. Rev. 1.0 TPS, September, 2015... -
Page 12: Hot Plug
2.14 NAND Flash Memory Innodisk SATADOM-MV 3ME3 uses Multi Level Cell (MLC) NAND flash memory, which is non-volatility, high reliability and high speed memory storage. Each cell stores 2 bits or holds four states per cell. Read or Write data to flash memory for SSD is control by microprocessor. -
Page 13: Theory Of Operation
SATADOM-MV 3ME3 3. Theory of Operation 3.1 Overview Figure 2 shows the operation of Innodisk SATADOM-MV 3ME3 from the system level, including the major hardware blocks. Figure 2: Innodisk SATADOM-MV 3ME3 Block Diagram Rev. 1.0 TPS, September, 2015... -
Page 14: Sata Iii Controller
3.2 SATA III Controller Innodisk SATADOM-MV 3ME3 is designed with ID 108/ 109, a SATA III 6.0Gbps (Gen. 3) controller. The Serial ATA physical, link and transport layers are compliant with Serial ATA Gen 1, Gen 2 and Gen 3 specification (Gen 3 supports 1.5Gbps/3.0Gbps/6.0Gbps data rate). -
Page 15: Garbage Collection
SATADOM-MV 3ME3 with use. 3.7 Garbage Collection Garbage collection is used to maintain data consistency and perform continual data cleansing on SSDs. It runs as a background process, freeing up valuable controller resources while sorting good data into available blocks, and deleting bad blocks. -
Page 16: Installation Requirements
The followings are the points customers have to be careful of while designing in SATADOM-MV 3ME3 series with Pin7 VCC. SATADOM-MV 3ME3 series with Pin7 VCC is designed with a fuse (poly switch 500mA, 6V) on Pin7’s circuit. Such a design could avoid any potential damage to customers’ system. -
Page 17: Power Cable
7, external power must be provided to the SATADOM from the 2pin connector on the side. To have the advantages of SATADOM-MV 3ME3 series with Pin7 VCC, and to avoid any potential damage to customers’ board designed with VCC power supply, InnoDisk suggests that customers MUST design their board with a fuse which should be designed before the SATA socket Pin7 VCC. -
Page 18: Part Number Rule
SATADOM-MV 3ME3 5. Part Number Rule CODE Definition Code 1 (Disk) Code 14th (Operation Temperature) C: Standard Grade (0℃~ +70℃) D : Disk Code 2 (Feature set) W: Industrial Grade (-40℃~ +85℃) Code 15th (Internal control) E : Embedded series 1~9: TSOP PCB version. - Page 19 SATADOM-MV 3ME3 Appendix CE/FCC Rev. 1.0 TPS, September, 2015...
- Page 20 SATADOM-MV 3ME3 Rev. 1.0 TPS, September, 2015...
- Page 21 SATADOM-MV 3ME3 Rev. 1.0 TPS, September, 2015...
- Page 22 SATADOM-MV 3ME3 Rev. 1.0 TPS, September, 2015...
