Communication Ports
The RUGGEDCOM i802 can be equipped with various types of communication ports
to enhance its abilities and performance. To determine which ports are equipped on
the device, refer to the factory data file available through RUGGEDCOM i802 . For
more information on how to access the factory data file, refer to the RUGGEDCOM
ROS Configuration Manual for the RUGGEDCOM i802.
Each communication port type has a specific place in the RUGGEDCOM i802 chassis.
2
1
1
2

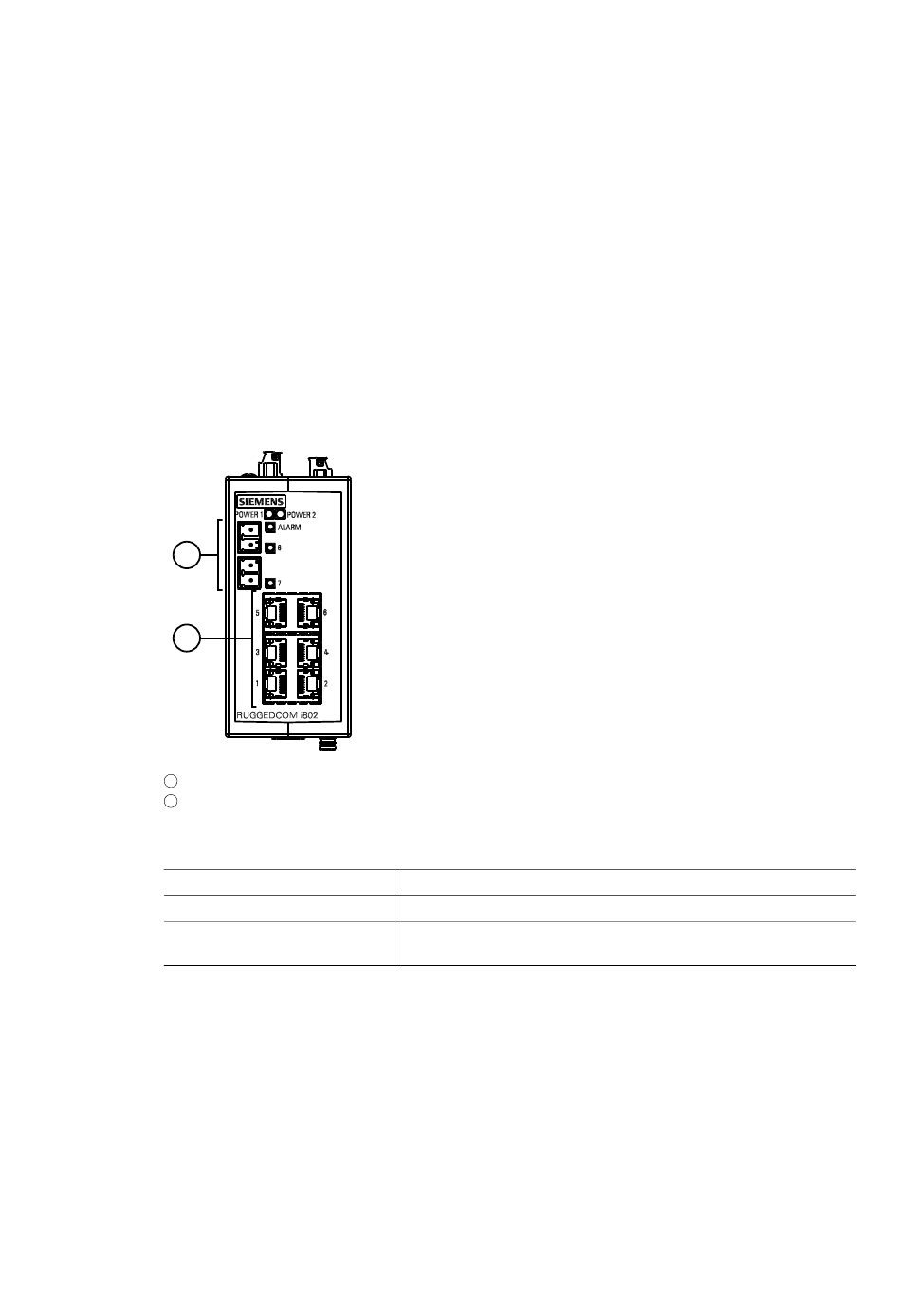

Figure 4.1
4.1
Copper Ethernet Ports
The RUGGEDCOM i802 supports several 10/100/1000Base-TX Ethernet ports that
allow connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP)
cables with RJ45 male connectors. The RJ45 receptacles are directly connected to
the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP)
cables.
RUGGEDCOM i802
Installation Manual, 01/2021, C79000-G8976-1004-06
Ports 1 to 6
Ports 7 to 8
Port Assignment
Port
1 to 6
Ports 7 to 8
Copper Ethernet Ports (10/100Base-TX)
Copper or Fiber Ethernet Ports (10/100/1000Base-TX or 1000Base-
SX or 1000Base-LX or 100Base-FX)
Type
4
15
