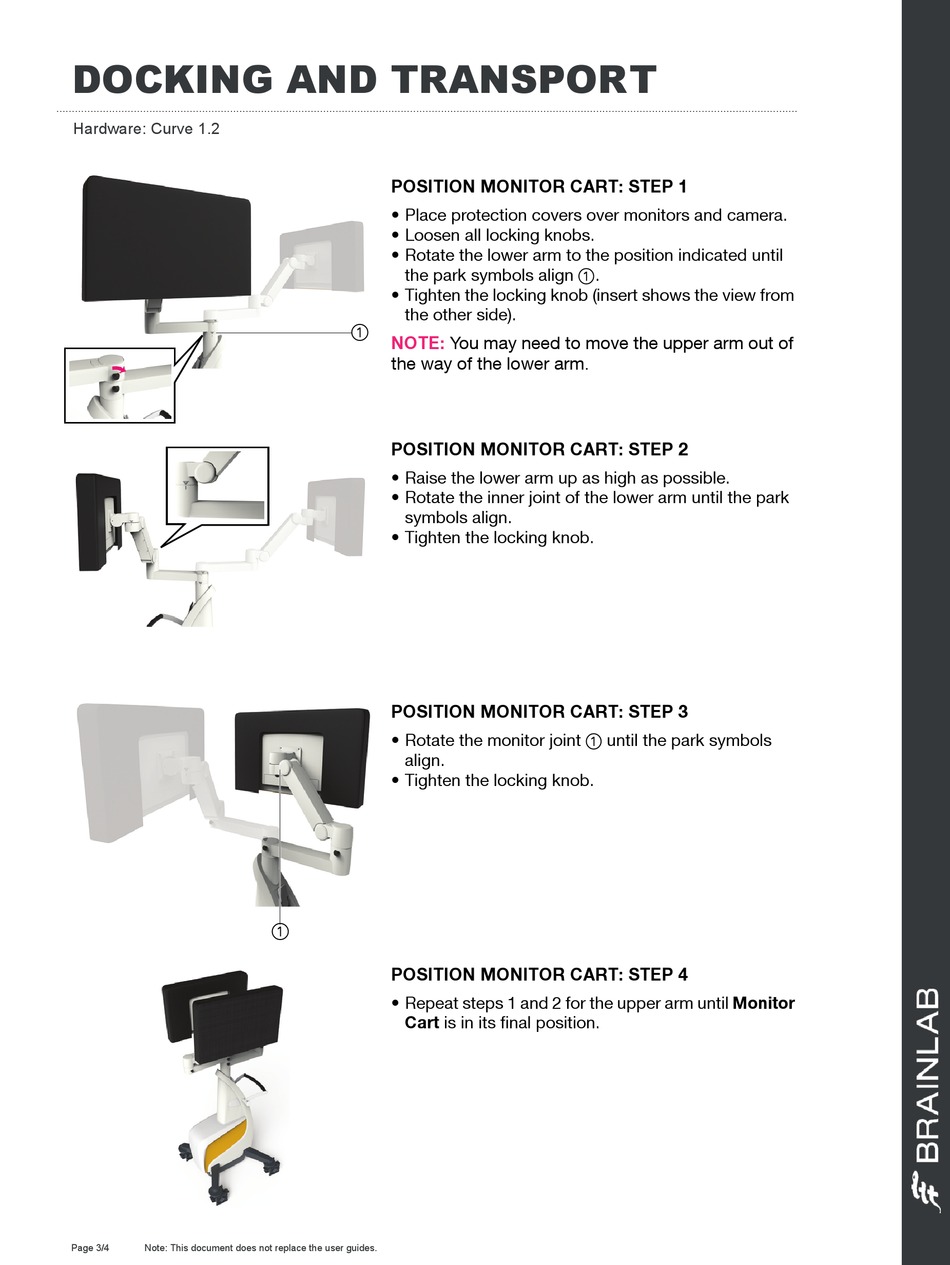

DOCKING AND TRANSPORT

...............................................................................................................................................................................................................................................
Hardware: Curve 1.2
Page 3/4 Note: This document does not replace the user guides.

POSITION MONITOR CART: STEP 1

• Place protection covers over monitors and camera.
• Loosen all locking knobs.
• Rotate the lower arm to the position indicated until
the park symbols align a.
• Tighten the locking knob (insert shows the view from
the other side).
a
NOTE: You may need to move the upper arm out of
the way of the lower arm.

POSITION MONITOR CART: STEP 2

• Raise the lower arm up as high as possible.
• Rotate the inner joint of the lower arm until the park
symbols align.
• Tighten the locking knob.

POSITION MONITOR CART: STEP 3

• Rotate the monitor joint a until the park symbols
align.
• Tighten the locking knob.
a

POSITION MONITOR CART: STEP 4

• Repeat steps 1 and 2 for the upper arm until Monitor
Cart is in its final position.
