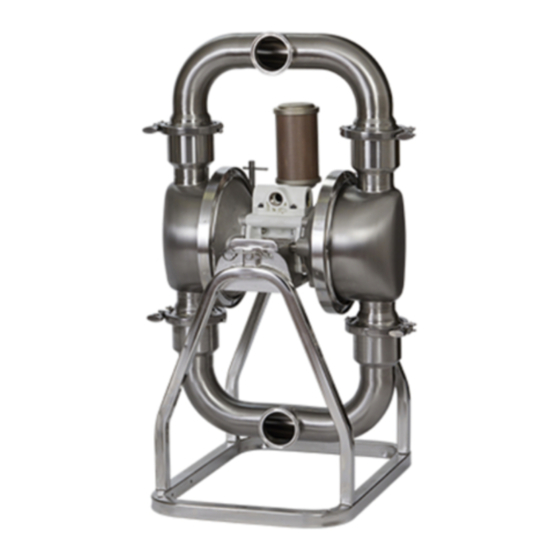

Verder HI-CLEAN
Diaphragm Pump
Model VA-2H80HE
For transfer of fluids in sanitary applications. Not approved for use in European explosive
atmosphere locations. For professional use only.
6.9 bar (0.7 MPa, 100 psi) Maximum Fluid Working Pressure
6.9 bar (0.7 MPa, 100 psi) Maximum Air Input Pressure
Important Safety Instructions.
Read all warnings and instructions in
this manual before using the
equipment. Save these instructions.
812.0062
Rev A
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI-CLEAN VA-2H80HE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VERDER HI-CLEAN VA-2H80HE

  • Page 1 Operation Verder HI-CLEAN Diaphragm Pump 812.0062 Model VA-2H80HE Rev A For transfer of fluids in sanitary applications. Not approved for use in European explosive atmosphere locations. For professional use only. 6.9 bar (0.7 MPa, 100 psi) Maximum Fluid Working Pressure 6.9 bar (0.7 MPa, 100 psi) Maximum Air Input Pressure...
  • Page 2: Table Of Contents

    Technical Data ......17 Customer Services/Guarantee....19 Related Manuals Manual in Description English 812.0066 Verder HI-CLEAN Diaphragm Pump, Model VA-2H80HE, Repair/Parts 812.0062...
  • Page 3: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. When these symbols appear in the body of this manual, refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
  • Page 4 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
  • Page 5: Configuration Number Matrix

    Configuration Number Matrix Configuration Number Matrix Check the identification plate (ID) for the Configuration Number of your pump. Use the following matrix to define the components of your pump. When you receive your pump, record the 9 character part number found on the shipping box (e.g., 811.0014): _____________ Also record the configuration number on the pump ID plate to assist you when ordering replacement parts:...
  • Page 6: Material Temperature Range

    Configuration Number Matrix Approvals Diaphragm materials coded EO, TO, or TS EC 1935/2004 combined with TF ball checks are comply with: Diaphragm materials coded EO or TS combined Class VI with TF ball checks comply with: All models are approved to: All fluid contact materials are FDA compliant and meet the United States Code of Federal Regulations (CFR)
  • Page 7: Installation

    The equipment must be grounded to reduce the risk • Always use genuine Verder parts and accessories. of static sparking. Static sparking can cause fumes to ignite or explode. Grounding provides an escape wire •...
  • Page 8: Stand And Mounting

    Installation Stand and Mounting Air Line The pump is very heavy (see Technical A bleed-type master air valve (B) is required in the Specifications on page 15 for specific weights). If the system to relieve air trapped between this valve and pump must be moved, follow the Pressure Relief the pump.
  • Page 9: Fluid Suction And Outlet Lines

    Viscous liquids are more difficult to pump and more prone to cavitation. Verder recommends taking all of the above factors into account in system design. To maintain pump efficiency, supply only enough air to the pump to achieve the required flow.
  • Page 10: Typical Installation

    Installation Typical Installation Key: Air supply line Bleed-type master air valve (for pump) (required, not supplied) Air regulator (required, not supplied) Master air valve (for accessories) Air line filter G Flexible fluid suction line Fluid drain valve (required, not supplied) Fluid shutoff valve (required, not supplied) Flexible fluid outlet line M 3/4 npt(f) air inlet (provided)
  • Page 11: Air Exhaust Ventilation

    Installation Air Exhaust Ventilation NOTE: The air exhaust port is 3/4 npt(f). Do not restrict the air exhaust port. Excessive exhaust restriction can reduce pump performance. To provide a remote exhaust: Be sure the system is properly ventilated for your type 1.
  • Page 12: Operation

    Operation Operation Pressure Relief Procedure Sanitize the Pump Before First Follow the Pressure Relief Procedure when- ever you see this symbol. NOTE: The pump was built and tested using a food grade lubricant. This equipment stays pressurized until pressure is Properly sanitize the pump before first use.
  • Page 13: Start And Adjust The Pump

    Operation Start and Adjust the Pump 8. To prime the pump, slowly increase air pressure with the air regulator (C) until the pump starts to cycle. Do not exceed the maximum operating air 1. Confirm that the pump is properly grounded. See pressure as listed in the Technical Specifications, Grounding, page 7.
  • Page 14: Maintenance

    Maintenance Maintenance Lubrication 4. Close the air regulator. 5. Remove the suction line from the sanitizing solution The pump is lubricated at the factory. It is designed to and drain pump. require no further lubrication for the life of the pump. There is no need to add an inline lubricator under normal operating conditions.
  • Page 15: Technical Specifications

    Technical Specifications Technical Specifications Dimensions A 98.1 cm (38.63 in) F 60.5 cm (23.83 in) B 54.5 cm (21.44 in) G 37.1 cm (14.6 in) C 43.8 cm (17.25 in) H 53.4 cm (21.04 in) D 13.5 cm (5.33 in) E 80.0 cm (31.51 in) Weight: 56.2 kg (124 lbs) 812.0062...
  • Page 16: Performance Chart

    Technical Specifications Performance Chart (140, 0.97) (9.7, 0.97) (120, 0.83) (8.3, 0.83) (100, 0.69) (6.9, 0.69) (80, 0.55) (5.5, 0.55) (60, 0.41) (4.1, 0.41) (40, 0.28) (2.8, 0.28) (20, 0.14) (1.4, 0.14) 1136 (189) (379) (150) (568) (757) (946) (250) (1136) (50) (100)
  • Page 17: Technical Data

    Technical Specifications Technical Data 812.0062...
  • Page 18 Technical Specifications Notes 812.0062...
  • Page 19: Customer Services/Guarantee

    All VERDER pumps are warranted to the original user against defects in workmanship or materials under normal use (rental use excluded) for two years after purchase date. This warranty does not cover failure of parts or components due to normal wear, damage or failure which in the judgement of VERDER arises from misuse.
  • Page 20 Customer Services/Guarantee Austria Belgium China Verder Austria Verder nv Verder Shanghai Instruments and Equipment Co., Ltd Eitnergasse 21/Top 8 Kontichsesteenweg 17 Building 8 Fuhai Business Park No. 299 A-1230 Wien B–2630 Aartselaar Bisheng Road, Zhangjiang Hiteck Park AUSTRIA BELGIUM Shanghai 201204...
