Campbell Hausfeld IN730200AV Easy Setup Manual

Straight Finish Nailer
CHN70500
3

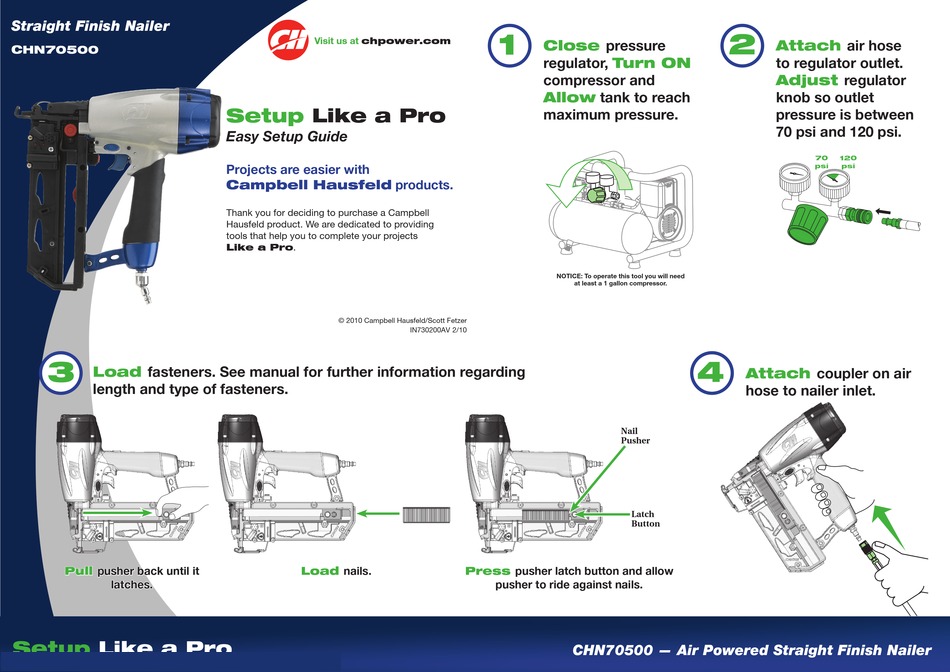

Load fasteners. See manual for further information regarding
length and type of fasteners.
Pull pusher back until it Pull pusher back until it
latches. latches.
Setup Like a Pro
Visit us at chpower.com
Setup Like a Pro
Easy Setup Guide
Projects are easier with
Campbell Hausfeld products.
Thank you for deciding to purchase a Campbell
Hausfeld product. We are dedicated to providing
tools that help you to complete your projects
Like a Pro.
© 2010 Campbell Hausfeld/Scott Fetzer
Load nails.
1
Close
regulator,
compressor and
Allow
maximum pressure.
NOTICE: To operate this tool you will need
at least a 1 gallon compressor.
IN730200AV 2/10
Press pusher latch button and allow
pusher to ride against nails.
CHN70500 — Air Powered Straight Finish Nailer
2
pressure Attach
Turn ON to regulator outlet.
Adjust
tank to reach knob so outlet
pressure is between
70 psi and 120 psi.
4
Attach
hose to nailer inlet.
Nail
Pusher
Latch
Button
air hose
regulator
70 120
psi psi
coupler on air
