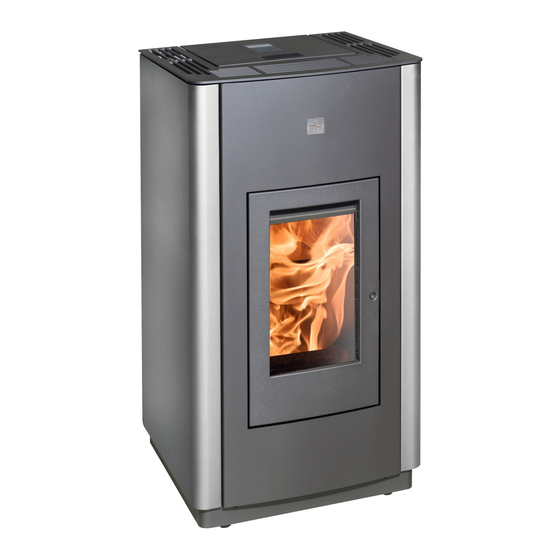

- Page 1 Technische Dokumentation Geräteblatt HSP 6 Pelletto-III RLU PGI 421.08 Geräteblatt HSP 6 Pelletto-III RLU PGI 421.08 Geräteblatt Pelletofen Fiche technique Poêle à pellets Scheda tecnica Stufe pellet Equipment sheet Pellet stove Tehnički list Kotel na pelete Tehnični list Kotel na pelete 0542108041400c...
- Page 2 Notes in the text Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on serious danger of damage to the heating device or of an injury. The note entitled Notice advises you on possible damage to your heating device. The note entitled Important calls your attention to the information important for the operation of your heating device.
-
Page 3: Table Of Contents
Contents 1. Technical data..........................1 2. Dimensions........................... 2 3. Cleaning work ..........................3 3.1. Cleaning the surface ......................... 3 3.2. Cleaning the glass panel ......................3 3.3. Clean combustion chamber “function instruction” Error F040..........3 3.4. Cleaning the combustion pot - weekly ..................3 4. -
Page 5: Technical Data
1. Technical data HSP 6 Pelletto-III 421.08 RLU PGI Heat output range: 2,4 – 8,3 kW Nominal heat output: 8,0 kW Height: 988 mm Width: 529 mm Depth: 498 mm Weight: 115 kg Diameter of flue elbow: 80 mm Flue gas temperature: 206 °C Testing transport pressure at nominal output: 11 Pa... -
Page 6: Dimensions
2. Dimensions... -
Page 7: Cleaning Work
3. Cleaning work WARNING Before starting any cleaning work, the stove must be cool down! The mains plug must be pulled out of the power supply socket (always in advance)! Once the cleaning work is completed, the correct operating status of the device must be re- established: Put the combustion pot in correctly, close the combustion chamber door. - Page 8 WARNING If this is not done, the clinker will continue to accumulate. Then the device will no longer be able to ignite properly. Pellets can pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet chute.
-
Page 9: Maintenance Work
4. Maintenance work WARNING Before starting any cleaning work, the stove must be cool down! The mains plug must be pulled out of the power supply socket (always in advance)! The frequency of maintenance in turn depends to a large extent on the pellet quality (ash content). Quality pellets have a low ash content of about 0.2-0.3%. -
Page 10: Cleaning The Flue Gas Passes - Long-Time
4.2. Cleaning the flue gas passes - long-time CAUTION After the consumption of 1000 kg of pellets at the latest, it is recommendable to check & clean the conduits of combustion products, the (induced) draught fan and the smoke flues. For cleaning, employ a brush or an ash exhauster. - Page 11 • Carry out the cleaning as pr the Fig. 3. Figure 3: Removing the side wall CAUTION After completion of the cleaning make sure that when putting back the covers, the seals are seated in the right positions. It is essential to replace defective seals.
-
Page 12: Replacement Parts List
5. Replacement parts list 5.1. Replacement parts list HSP 6 Pelletto-III 421.08 RLU PGI (without trim parts) - Page 13 Description Pos. Piece No. PR Replacement parts list HSP 6 Pelletto-III 421.08 RLU PGI (without trim parts) Complete combustion chamber door/ 1 piece anthracite 0541908005300 1 piece Burner cast 0551908005706 Protection grate 1 piece 0551908006709 Combustion chamber cladding left 1 piece 0551908005040 Combustion chamber cladding back 1 piece...
-
Page 14: Detail A1
Collet 1 piece 0089000345000 Screw UN5950 M5x10 4 piece — Air hose 1 piece 0551908015315 5.2. Detail A1 Description Pos. Piece No. PR Detail A1 Screwing door 1 piece A1.1. 0541908305001 Door hinge/anthracite - Set 1 piece A1.2. 0541908005340 Glass holder/anthracite - Set 1 piece A1.3. -
Page 15: Replacement Parts List Hsp 6 Pelletto-Iii 421.08 Rlu
5.3. Replacement parts list HSP 6 Pelletto-III 421.08 RLU PGI Description Pos. Piece No. PR Replacement parts list Pelletto III 421.08 – RLU PGI Side wall right/grey 1 piece 0541908016150 Front plate/anthracite 1 piece 0541908006120 Side wall left/grey 1 piece 0541908016165 Back wall 1 piece... -
Page 16: Replacement Parts List Hsp 6 Pelletto-Iii 421.08 Rlu Pgi - Ceramic
5.4. Replacement parts list HSP 6 Pelletto-III 421.08 RLU PGI – ceramic Description Pos. Piece No. PR Replacement parts list Pelletto III 421.08 – RLU PGI Side wall right/anthracite 1 piece 0541908006140 Side part C ceramic right/ahorn 1 piece 0541908016185 Front plate/anthracite 1 piece 0541908006120... -
Page 17: Circuit Diagram
