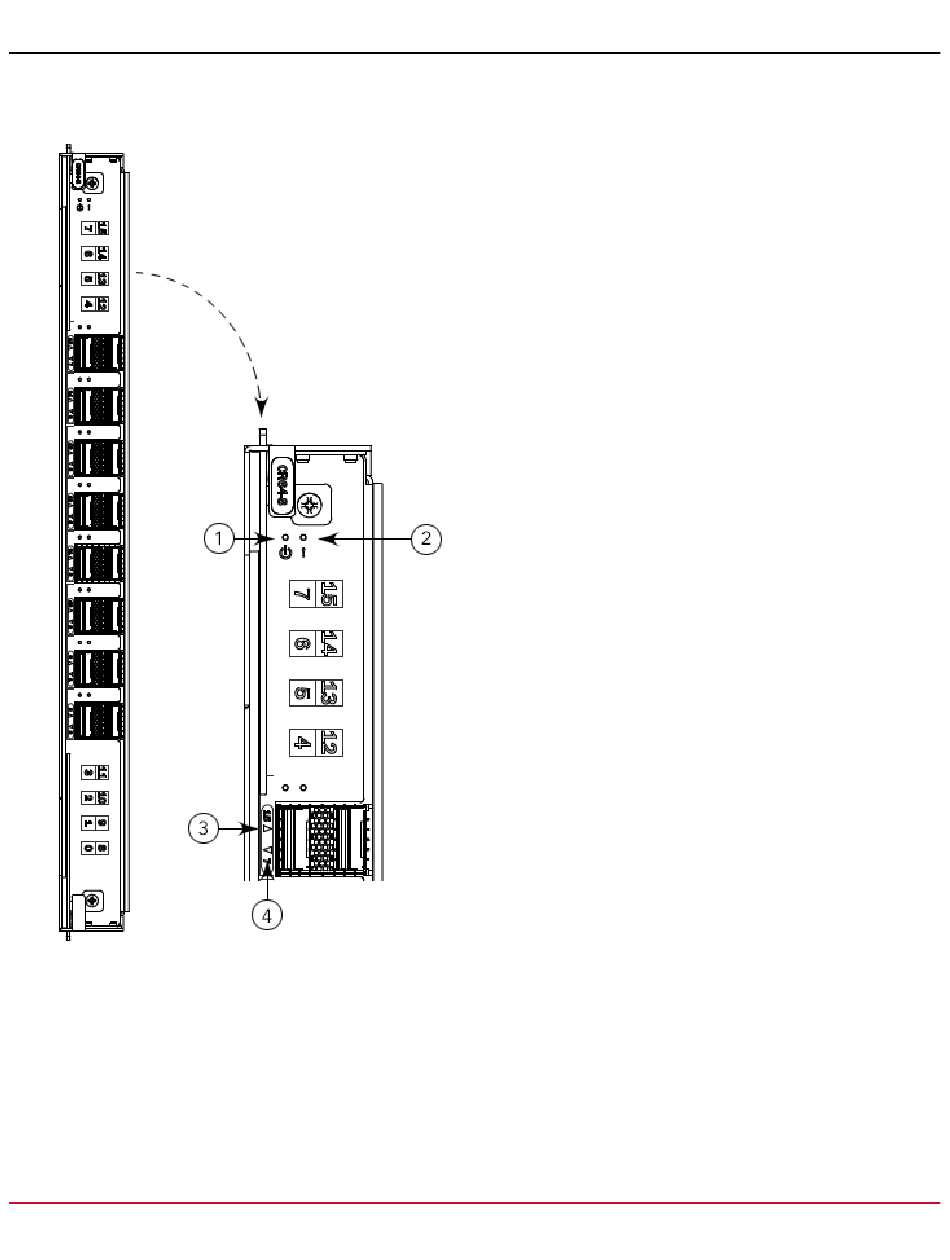

Figure 40: CR64-8 Core Routing Blade Port Numbering
1. Map Showing Ports 6, 7, 14, 15
2. Map Showing Ports 4, 5, 12, 13
3. QSFP Ports 8–15 (bottom to top)
4. QSFP Ports 0–7 (bottom to top)
QSFP ports are numbered from 0 through 7 on the left side from bottom to top and from 8 through 15 on the right side
from bottom to top. For information on supported QSFP transceivers, see Supported Transceivers and Cables.
