Specification - Techly IDATA EXTip-314 User Manual

EN

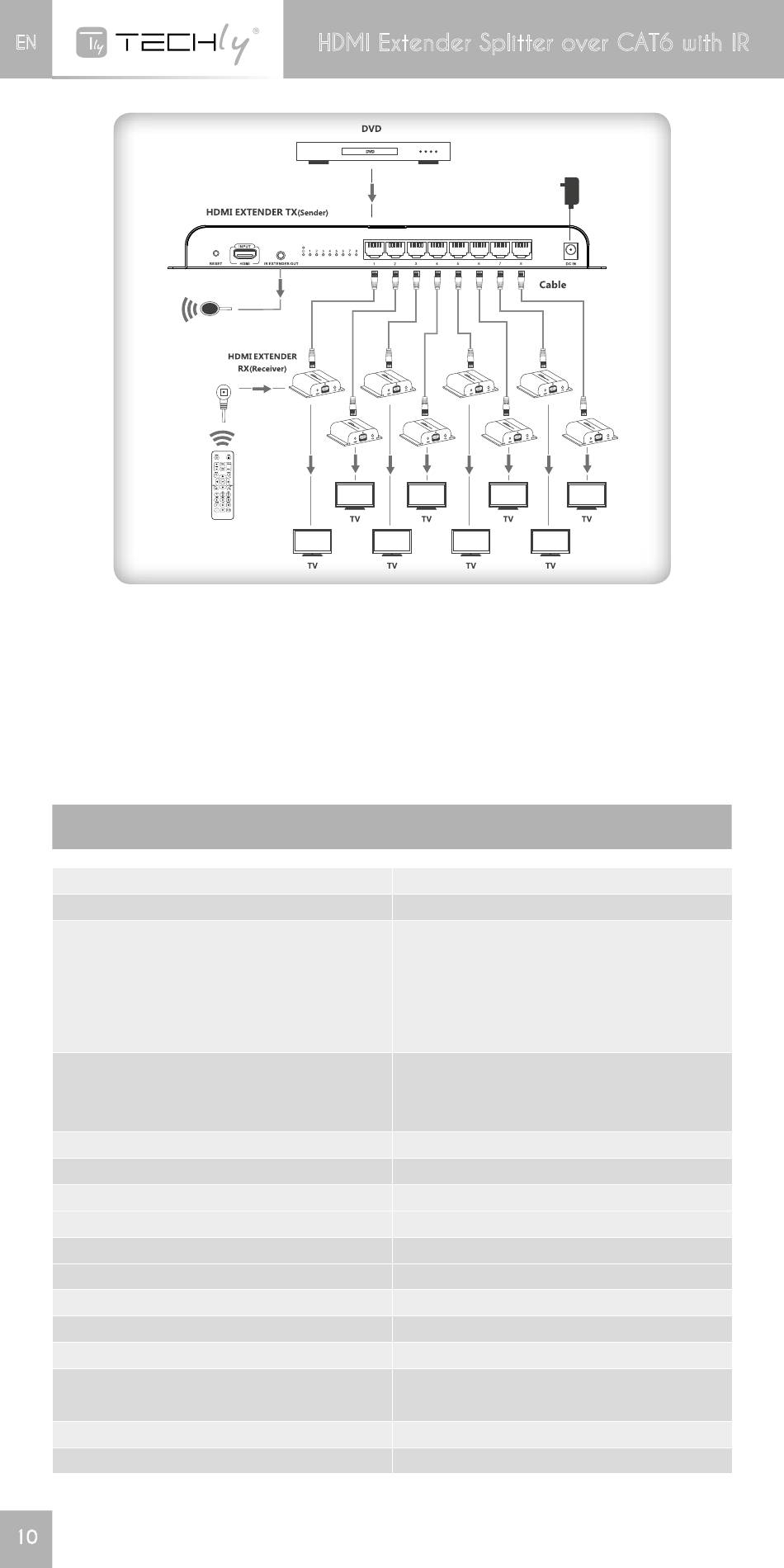

1) Connect HDMI input transmitter with HDMI output of source
device.
2) Connect IR blaster extension cable to the IR extender out port.
3) Connect RJ45 port with RJ45input port of HDMI extender RX.
4) Connect HDMI output of HDMI extender RX to HDMI input of
HDTV and set TV source input to correct HDMI input channel.

SpEciFication

HdMi signal
transport protocol
Support resolutions
transmit distance
ir signal
input
output
connection indicator led
working temperature
power supply (trasnsmitter)
power consumption
dimension (transmitter)
weight (transmitter)
color
10
HDMI Extender Splitter over CAT6 with IR
Compatible with HDCP
HDbitT
480i@60Hz, 480p@60Hz,
576i@50Hz, 576p@50Hz
720p@50/60Hz,
1080i@50/60Hz,
1080p@50/60Hz
Up to 120m transmission for
1080p 60Hz full HD over single
Cat6
Support 20-60kHz IR device
1 x HDMI
4 x RJ45 (IDATA EXTIP-314)
8 x RJ45 (IDATA EXTIP-318)
4 x led (IDATA EXTP-314)
8 x led (IDATA EXTIP-318)
0°C ~60°C
DC 12V@3A
<24W
299 (W) x 110.7 (D) x 29.6
(H) mm
430g
Black
