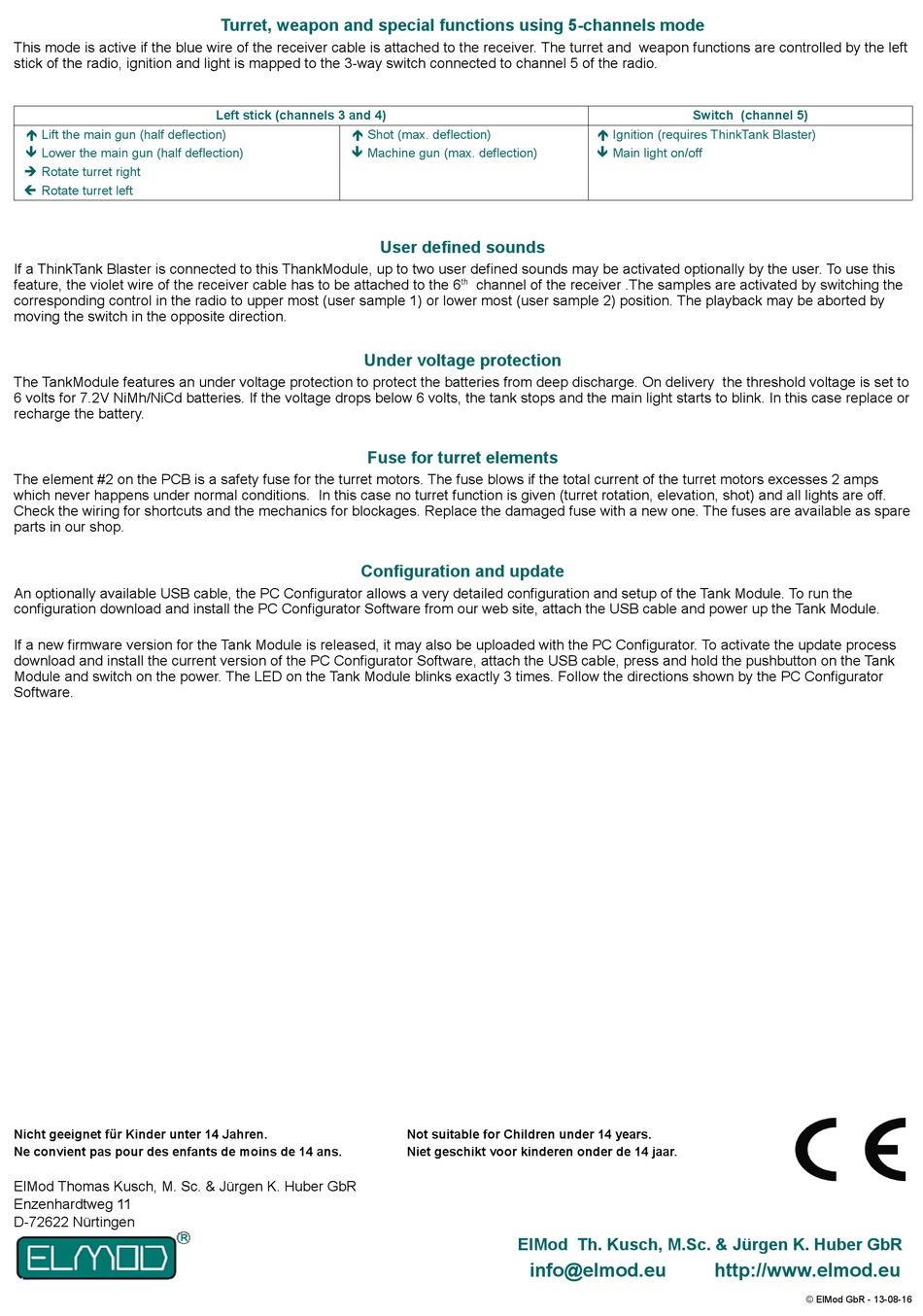

ElMod ThinkTank Tank Module ECO Flex Instructions For Assembly And Handling page 3

This mode is active if the blue wire of the receiver cable is attached to the receiver. The turret and weapon functions are controlled by the left
stick of the radio, ignition and light is mapped to the 3-way switch connected to channel 5 of the radio.
é Lift the main gun (half deflection)
ê Lower the main gun (half deflection)
è Rotate turret right
ç Rotate turret left
If a ThinkTank Blaster is connected to this ThankModule, up to two user defined sounds may be activated optionally by the user. To use this
feature, the violet wire of the receiver cable has to be attached to the 6
corresponding control in the radio to upper most (user sample 1) or lower most (user sample 2) position. The playback may be aborted by
moving the switch in the opposite direction.
The TankModule features an under voltage protection to protect the batteries from deep discharge. On delivery the threshold voltage is set to
6 volts for 7.2V NiMh/NiCd batteries. If the voltage drops below 6 volts, the tank stops and the main light starts to blink. In this case replace or
recharge the battery.
The element #2 on the PCB is a safety fuse for the turret motors. The fuse blows if the total current of the turret motors excesses 2 amps
which never happens under normal conditions. In this case no turret function is given (turret rotation, elevation, shot) and all lights are off.
Check the wiring for shortcuts and the mechanics for blockages. Replace the damaged fuse with a new one. The fuses are available as spare
parts in our shop.
An optionally available USB cable, the PC Configurator allows a very detailed configuration and setup of the Tank Module. To run the
configuration download and install the PC Configurator Software from our web site, attach the USB cable and power up the Tank Module.
If a new firmware version for the Tank Module is released, it may also be uploaded with the PC Configurator. To activate the update process
download and install the current version of the PC Configurator Software, attach the USB cable, press and hold the pushbutton on the Tank
Module and switch on the power. The LED on the Tank Module blinks exactly 3 times. Follow the directions shown by the PC Configurator
Software.
Nicht geeignet für Kinder unter 14 Jahren.
Ne convient pas pour des enfants de moins de 14 ans.
ElMod Thomas Kusch, M. Sc. & Jürgen K. Huber GbR
Enzenhardtweg 11
D-72622 Nürtingen
Turret, weapon and special functions using 5-channels mode
Left stick (channels 3 and 4)
é Shot (max. deflection)
ê Machine gun (max. deflection)
User defined sounds
Under voltage protection
Fuse for turret elements
Configuration and update
channel of the receiver .The samples are activated by switching the
th
Not suitable for Children under 14 years.
Niet geschikt voor kinderen onder de 14 jaar.
ElMod Th. Kusch, M.Sc. & Jürgen K. Huber GbR
info@elmod.eu
Switch (channel 5)
é Ignition (requires ThinkTank Blaster)
ê Main light on/off
http://www.elmod.eu
© ElMod GbR - 13-08-16
