We congratulate on your purchase of the
The
ElMod Fusion
enhances your model by true to scale movement, extensive weapon-, lighting- and other functions combined with
simple installation. All functions right down to the last detail may be easily adjusted on your Windows
Android
®
Smartphone or Tablet by over 100 parameters which are logically grouped and explained in detail. By ongoing
improvements and software updates, which may be easily applied at home within few minutes, you bought a future-proof product.
Before starting the installation, check the scope of delivery for completeness.
ElMod Fusion
PCB
•
• volume control rotary knob with cable
• cable for the RC receiver
• plug with for connecting to the battery
• plug for connecting up to two drive motors
• cable for connecting to the loudspeaker
• microSD card (already plugged-in on the PCB)
• USB dongle and an USB cable for connecting to the computer
ElMod Fusion PRO
only: housings and cables for assembly of up to 5 external light sources
•

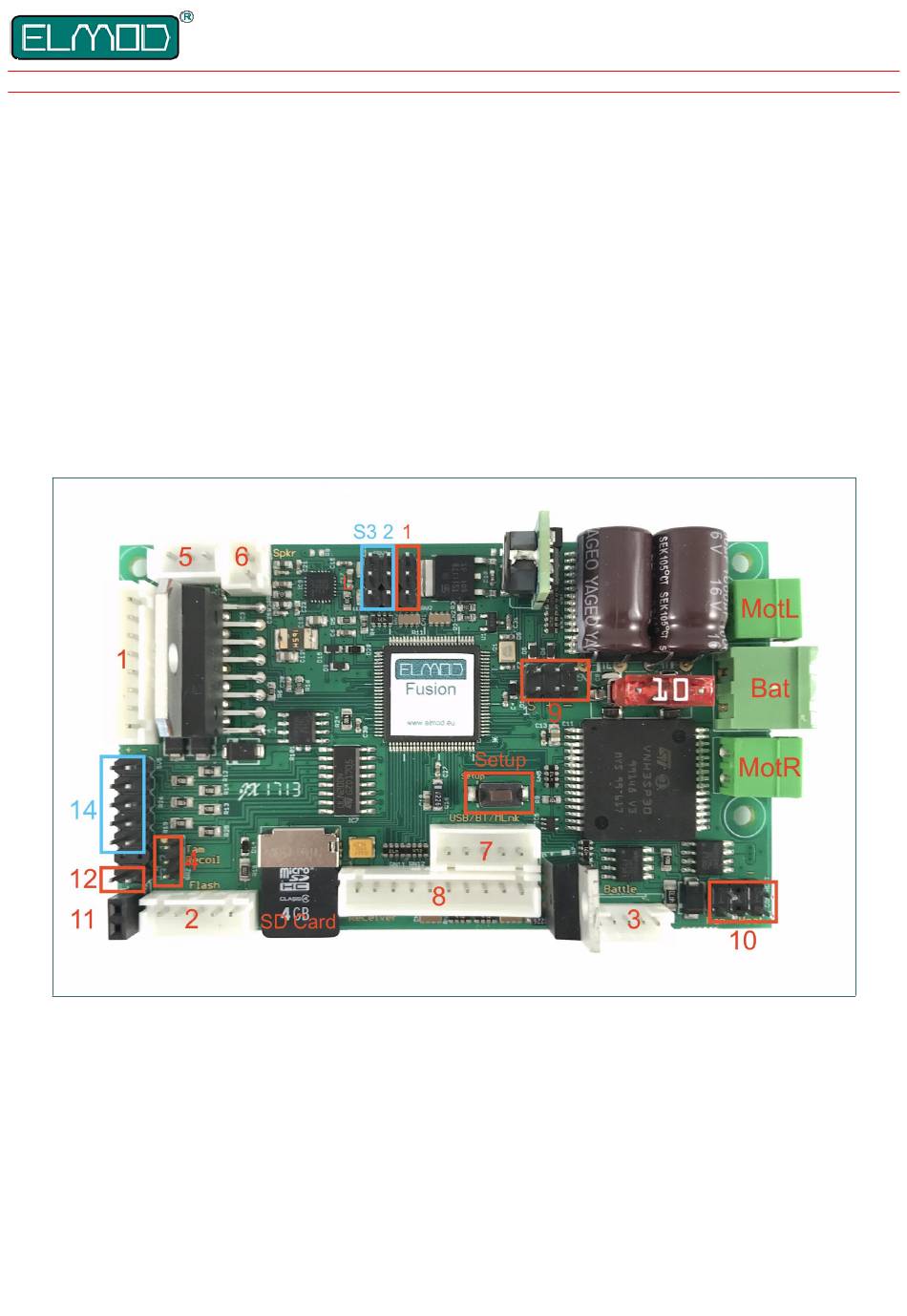

Fusion ECO and Fusion PRO
Bat
battery connector
MotR
connector for the right motor
MotL
connector for the left motor
Sw
pushbutton for the setup, firmware update and reset
S1
servo connectors
L
status LEDs
SD
microSD card
1
turret connector (HengLong
2
muzzle flash connector (Taigen
3
connector for IR battle functions
4
connector for the Tamiya
Hint: all connectors are marked and described on the bottom side of the PCB.
ElMod Fusion ECO & Fusion PRO Rev.F
Detailed installation instructions and user manual
Before installation always read carefully all these instructions.
ElMod
Fusion, the innovative and universal full-option-solution for different types of vehicles.
Scope of delivery
®
)
®
, HengLong
®
)
®
barrel recoil mechanics
5
connector for the volume control rotary knob
6
connector for the loudspeaker
7
connector for the USB dongle and ElMod BT adapter
8
connector for the RC receiver
9
connectors for external motor drivers
10
connector for a smoke unit
11
connector for Taigen
12
connector for Taigen
additively Fusion PRO (marked blue)
14
connector for additional lights
S2,S3
servo 2 & 3
- 1 -
®
or Apple
®
Computer or an
®
, HengLong
®
recoil/shot mechanics
®
, HengLong
®
recoil servo pcb
© ElMod - 19-09-02
Advertisement
Table of Contents
Related Manuals for ElMod Fusion ECO
Summary of Contents for ElMod Fusion ECO
- Page 1 MotR connector for the right motor connector for the USB dongle and ElMod BT adapter MotL connector for the left motor connector for the RC receiver pushbutton for the setup, firmware update and reset...
-
Page 2: Connection Of The Power Supply
• the motors start rotating after around 3 seconds. The motors are connected correctly if the left one is rotating slightly slower than the right one • every few seconds the motors change their rotation. Release the button when the chains or wheels rotate forward. Now the motors - 2 - © ElMod - 19-09-02... - Page 3 The voltage on all turret components is always equal to the voltage of the battery. If you plan to use motors with lower voltage, reduce the setting for maximum speed in the ElMod App of the corresponding motor. For example the maximum speed of a 7.2 V motor in a 12 V tank should not excess 60% (60% of 12V = 7,2V).
-
Page 4: Light Functions
(right and left side separate). This is useful if the attached mechanic has a smaller movement clearance as the servo's side arm). By two other parameters each function may be further adjusted (see table). - 4 - © ElMod - 19-09-02... - Page 5 • metal impact after a hit. The vehicle stops and cannot be operated for two sec. • an explosion during vehicle's destruction. The vehicle cannot be operated for the interval shown in the table (delay until resurrection). - 5 - © ElMod - 19-09-02...
- Page 6 • an IR sensor for the detection of a hit and signaling LEDs (sensor mushroom) • an IR transmitter that is preferably installed in the main gun barrel These components are supported in the following version: • the ElMod Fusion IR battle set is connected directly to connector 3 • Tamiya ®...
- Page 7 If an on/off switch is installed, two of three function groups are accessible. Use the configuration software to figure out which function groups are available (tab "receiver" parameter "Function selector". See image above). - 7 - © ElMod - 19-09-02...
- Page 8 This procedure may not last longer than one second. Is the motor restarted after just a short time, a shorter start up sequence (warm start) is played. The time of cooling down the engine may also be configured by the software. - 8 - © ElMod - 19-09-02...
-
Page 9: Status Leds
LED means that the currently played sound is clipped. That happens when the volume of several sound types was raised in the configuration software. To fix the problem, lower these settings. Otherwise the sound may be distorted. - 9 - © ElMod - 19-09-02... -
Page 10: First Start-Up
• NextGen. These are advanced sample sets, that reproduce the different driving conditions prototypically. These sample sets should always be preferred. • Legacy. These are sample sets that are compatible to older ElMod sound generators. This sample sets won't exhaust the abilities of the... -
Page 11: Installation
USB cable to link the dongle to the computer. A wireless connection to the ElMod App is possible with the optionally available ElMod Bluetooth Adapter. - 11 - © ElMod - 19-09-02... -
Page 12: Configuration And Tuning
• the most important adjustments are now set. Save the new profile on the hard drive (button "Save profile") for future use in case you need it for another ElMod Fusion board. Reset to factory defaults - 12 - © ElMod - 19-09-02... -
Page 13: Firmware Update
In-Depth informations Several documents describing various aspects of the ElMod Fusion Modules are available in our knowledge base. The link is placed in the news section on the main page of our web site. - 13 - © ElMod - 19-09-02... -
Page 14: Safety Instructions
- When mounting the product, keep sufficient distance to heat sensitive and inflammable objects (e. g. wood or plastic surfaces, cable insulation). - When touching the product, there is danger of skin burn. - 14 - © ElMod - 19-09-02... - Page 15 - 15 - © ElMod - 19-09-02...
- Page 16 Not suitable for Children under 14 years. Ne convient pas pour des enfants de moins de 14 ans. Niet geschikt voor kinderen onder de 14 jaar. ElMod Thomas Kusch Seebuckweg 9 D-78054 Villingen-Schwenningen, Germany ElMod Thomas Kusch info@elmod.eu http://www.elmod.eu - 16 - © ElMod - 19-09-02...
