ElMod ThinkTank Blaster 2 Detailed Instructions For Assembly And Operation

detailed instructions for assembly and operation
Please read these instructions carefully before assembling the parts.

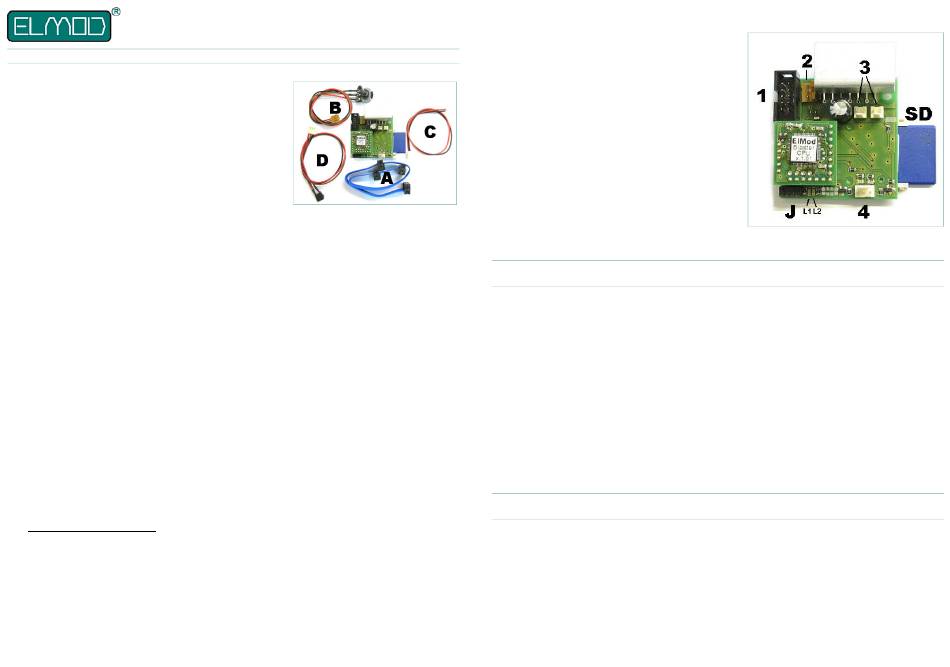

Scope of delivery
• ThinkTank Blaster PCB
• ThinkTank Blaster CPU PCB
• EMNet ribbon cable with four connectors (A)
• volume control cable (B)
• speaker cable (C)
• cable for optional connection with proportional receiver (D)
• SD-card
To operate the module you need a ThinkTank Booster
(firmware 1.20 or later) and a ThinkTank TLS (firmware 1.17
or later).
sound module for tank models equipped with ElMod electronic parts.
•
up to five independent voices.
•
22kHz Sampling-frequency, 8-bit, wav-files.
•
10-bit mixer for wide dynamic range.
•
storage medium is standard SD-card.
•
customizable: creating your own sets of samples is possible with a personal computer.
•
supported sounds (depending on the model):
•
up to ten sounds for switching on/off of the motor (shuffle play).
•
determination between cold and warm start
•
motor sound depending on speed
•
different sounds for squieking chains which are played randomly depending on speed
•
sounds for turning turret with differentiation between manual and hydraulic/electrical
•
turning
sound for barrel moving
•
Gun and MG shot
•
up to four sounds defined by the user (when using a a six-channel proportional set)
•
Connection with up to two 4 or 8 Ohm speakers
•
Power: 2x 5W
•
Size: 48 x 47 mm² (2" x 2")
•
ElMod-Bus system (EMNet) : Simple connection with other ThinkTank-Modules
•
ThinkTank Blaster 2
Functionalities
Overview of connectors
1 EMNet-connector
2 connector for volume control
3 two connectors for up to two speakers
4 connector for proportional receiver (channel 5+6)
J jumpers used for configuration of blaster
SD slot for sd-cards
L1 Power LED
L2 Busy LED
Assembly and connection
Faulty wiring may cause permanent damage to the electronics! If anything is unclear, please look
at our FAQ or write an email to us!
• Connect connector 1, all other ThinkTank modules and the BEC-supply, when existent, with
the EMNet cable A
• Connect volume control B with connector 2
• Connect the speaker with cable C to one of the two connectors 3. If you ordered the blaster
with a speaker, it will already be delivered with the cable. You can use up to two speakers with
the Blaster 2 resulting in higher loudness. In this case consider the polarity of the
loudspeakers! If the sound appears 'thinner', swap the cables of one of them.
• Leave all jumpers closed to activate the standard set of samples for the tiger tank or choose
another one by setting the jumpers accordingly to your choice. A list with all available sample
sets is included.
• When you install the circuit board in the tank, make sure that no short circuits can occur (a
second mounting hole is placed below the CPU PCB).
It is essential for proper function of the module that the tank itself and all other modules are
• Make sure all cables have been installed as described above.
• Make sure that all jumpers are put in the right position and that the SD card is well fixed.
• Put in a full charged battery and switch on the tank.
• The power LED starts blinking for a short time as soon as the connection with the other
modules is established.
Initiation
installed correctly!
