Read these instructions carefully before installation! Any liability for damage caused
by improper installation or non-observance of these instructions is excluded.
ElMod M16
board
•
• 2-pin cable for optional front lighting connection
• USB dongle with matching USB cable for connection to a Windows
computer
1 Power terminal
2 Power switch
3 Front light connector (optional)
4 Rear light/brake light connector
5 Connector for USB dongle
6 Connector for steering servo
7 Connector for muzzle flash
8 Wires for receiver connection
ElMod M16 v.2.0
Installation guide and user manual
Scope of delivery

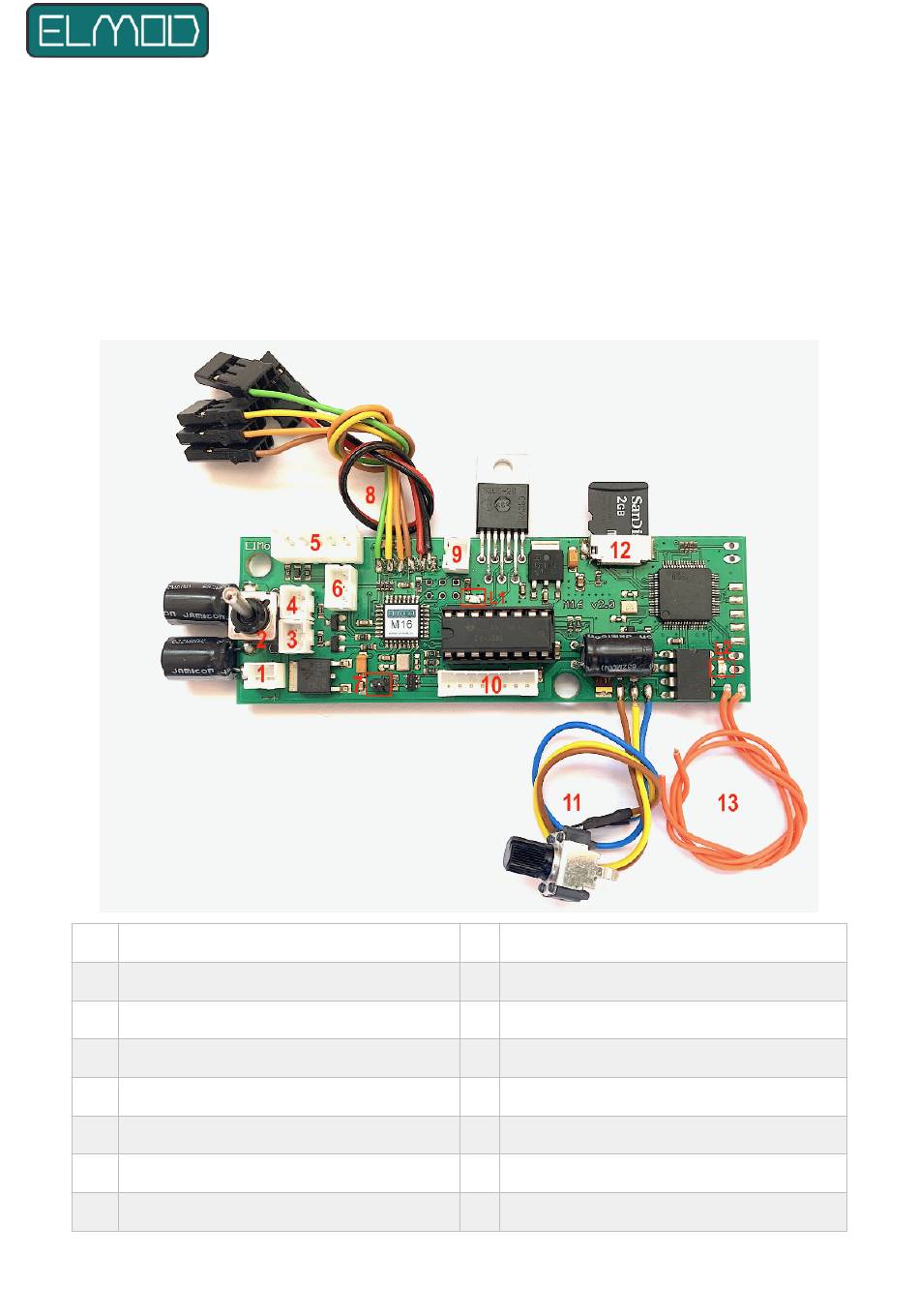

Overview of connections
9 Connector for main motor
10 Connector for turret components
11 Volume control knob
12 microSD card
13 Wires for loudspeaker
L1 Status LED (Driving functions)
L2 Status LED (Sound functions)
Page 1
or Apple
®
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElMod M16 v.2.0
Summary of Contents for ElMod M16 v.2.0
- Page 1 ElMod M16 v.2.0 Installation guide and user manual Read these instructions carefully before installation! Any liability for damage caused by improper installation or non-observance of these instructions is excluded. Scope of delivery ElMod M16 board • • 2-pin cable for optional front lighting connection •...
- Page 2 • Remove the original board. Be careful not to damage the sensitive connectors. • Place the ElMod board in the place of the original electronics and fix it with two screws at the designated places.
- Page 3 The polarity of connector 1 (power supply) on the circuit board is clearly marked with + and -. CAUTION! The ElMod M16 board features a battery protection which should be set accordingly to the used battery type. See chapter "battery protection" for details.
- Page 4 • Connect a suitable 4-channel receiver to the receiver cables. The assignment of the cables is as follows: Wire color Channel Control Function Acceleration/Braking Right stick Steering Gun elevation, shot function and motor ignition Left stick Turret rotation Power supply of the receiver •...
- Page 5 • Connect the 8-pin tower plug to connector 10 and the 2-pin muzzle flash plug to connector 7. The muzzle flash plug can be aligned in any way as both contacts on the circuit board are connected together. ATTENTION! The plugs are very fragile! The thin wires can easily be torn off or the connector housings may be damaged.
- Page 6 User sound 3 ↙ movement Configuration ElMod M16 is already factory set for the model. With the help of the free ElMod App it is however possible to adapt the electronics exactly to your needs. The software is freely available for Microsoft Windows operating systems and MacOS®.
-
Page 7: Safety Instructions
To connect your computer to the ElMod M16 attach the USB dongle to a free USB plug in your computer. The dongle is connected to connector 5 of the ElMod M16. Now switch on the ElMod M16 and start the ElMod App on your computer. - Page 8 Nicht geeignet für Kinder unter 14 Jahren. Not suitable for Children under 14 years. Ne convient pas pour des enfants de moins de 14 ans. Niet geschikt voor kinderen onder de 14 jaar. ElMod Thomas Kusch Seebuckweg 9 D-78054 Villingen-Schwenningen, Germany ElMod Thomas Kusch info@elmod.eu...
