ElMod ThinkTank Tank Module ECO Flex Instructions For Assembly And Handling

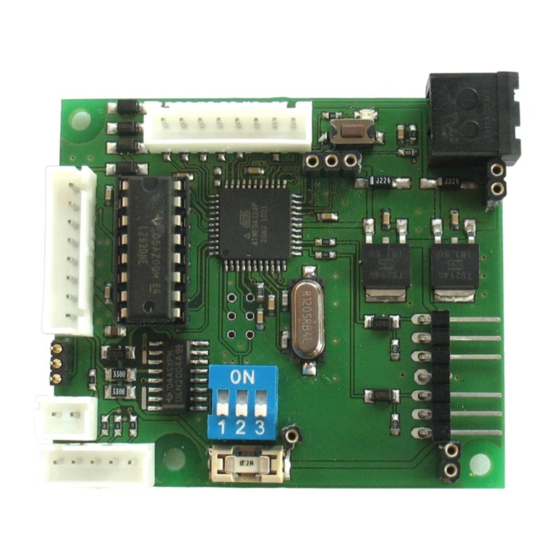

• ThinkTank Tank Module ECO PCB
• ready to use power supply cable set
• proportional receiver cable set

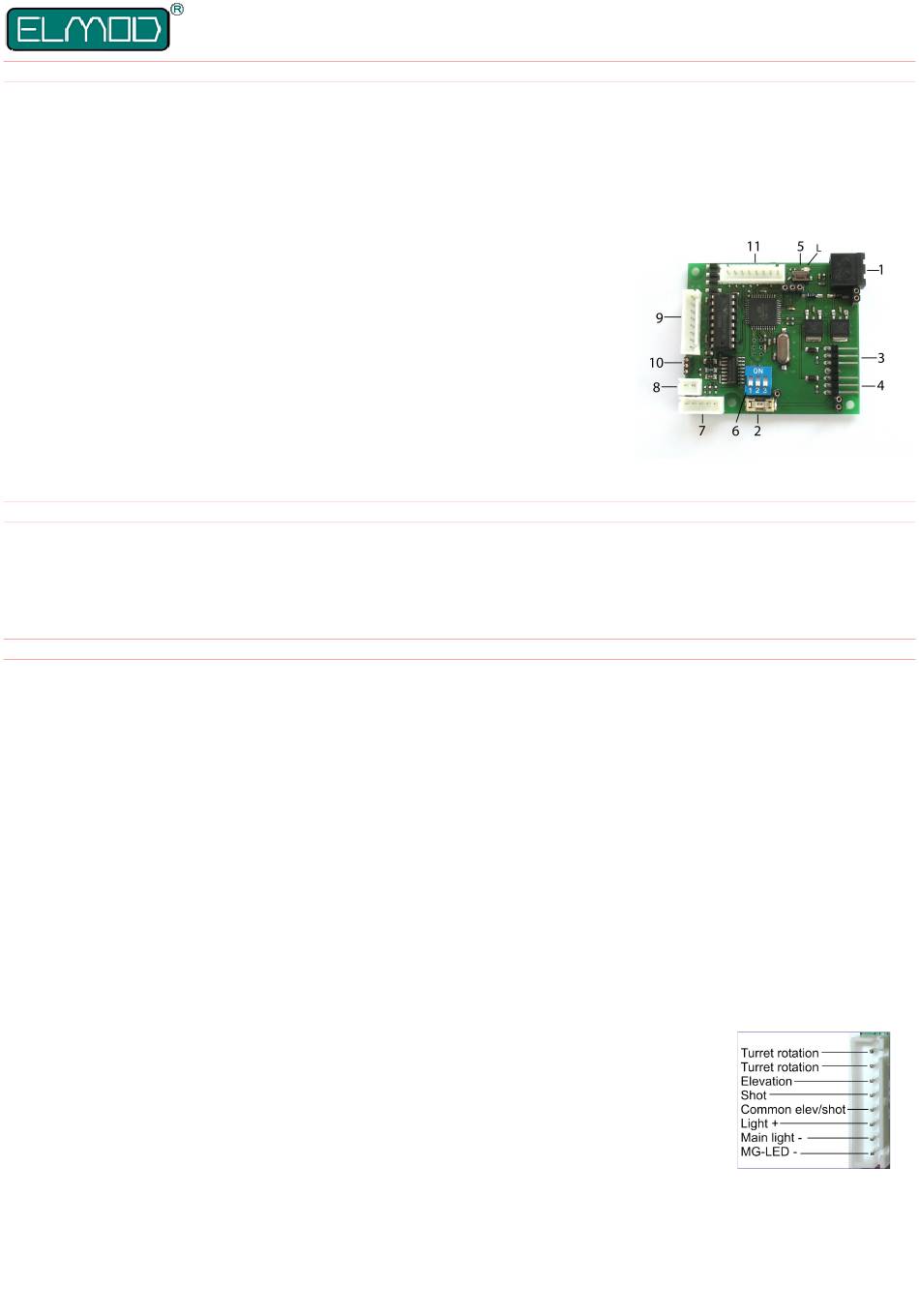

1 Power supply
2 Fuse for turret elements
3 Connector for left chain motor
4 Connector for right chain motor
5 Setup mode push button
6 DIP-switches for selecting the tank profile
7 Connector for HengLong muzzle flash, AsiaTam recoil unit and PC Configurator
8 Connector for HengLong muzzle flash
9 Connector for turret elements
10 Connector for Tamiya recoil unit
11 Connector for proportional receiver (marked red)
L Status LED
Solder the loose ends of the power supply cable to a battery connector that fits to your battery type. Use the included shrinking tube to
insulate the soldered wires.
The module supports off-the-shelf ESCs. Hence the power class and motor type (for example brushless motors) solely depends on the
attached ESCs which gives the most possible flexibility to the powertrain.
Consider the correct polarity of the 3-pin connector of the ESCs! The minus pole is oriented to the lower edge of the board. See the board for
explicite markings.
Ensure that the power supply of the ESCs is correct. Consult the manual of the ESCs for further details like interference suppresion or cable
cross-section.
To check the correct wiring of the motors perform the following procedure:
• Jack the tank up, so that the chains can move freely.
• Attach a full charged battery to the power supply connector and switch the electronics on.
• Wait 3-4 seconds and press the pushbutton.
• The chains start to move. They change the running direction every 4 seconds. Release the button when both chains move forwards and
the light chain runs faster than the left one.
• Go ahead with the installation when the motors run in described manner.
Connect the white 8-pin turret plug to the corresponding connector.
• If using the genuine HengLong LED muzzle flash, attach it's cables (a 5-wire and a 2-wire cable) to the board.
• If using the genuine AsiaTam turret mechanics and high voltage muzzle flash, proceed as described in the
manual of the units.
• If using the genuine Tamiya recoil unit, attach it to the corresponding connector on the board. The white cable
faces the edge of the board.
Please read this document carefully!
HINT: The function of all connectors is printed on the back side of the PCB!
Warning! The use of the switch and fuse is mandatory! Fire hazard when disregarded!
ThinkTank Tank Module ECO Flex
Instructions for assembly and handling
Product contents
Overview
Assembly
Power supply
Chain motors
Turret elements
© ElMod GbR - 13-08-16
