Congratulations on your purchase of the
of vehicles. The
ElMod Fusion
functions combined with simple installation. All functions right down to the last detail may be easily adjusted on your
Windows
®
or Apple
®
Computer or an Android
and explained in detail.
ElMod Fusion
PCB
•
• Volume control rotary knob with cable
• Cable for the RC receiver
• Plug with for connecting to the battery
• Plug for connecting up to two drive motors
• Cable for connecting to the loudspeaker
• Extension cable for turret components
• MicroSD card (already plugged-in on the PCB)
• USB dongle and an USB cable for connecting to the computer
ElMod Fusion PRO
only: Cables for additional light sources
•
Fusion ECO and Fusion PRO
Bat
battery connector
MotR
connector for the right motor
MotL
connector for the left motor
Sw
pushbutton for the setup, firmware update and reset
S1
servo connectors
L
status LEDs
SD
microSD card
1
turret connector (HengLong
2
muzzle flash connector (Taigen
3
connector for IR battle functions
4
connector for the Tamiya
Hint: all connectors are marked and described on the top or bottom side of the PCB.
ElMod Fusion ECO & Fusion PRO
Detailed installation instructions and user manual
Read these instructions carefully before installation.
ElMod
Fusion, the innovative and universal full-option-solution for different types
enhances your model by true to scale movement, extensive weapon-, lighting- and other
®
Smartphone or Tablet by over 100 parameters which are logically grouped
Scope of delivery

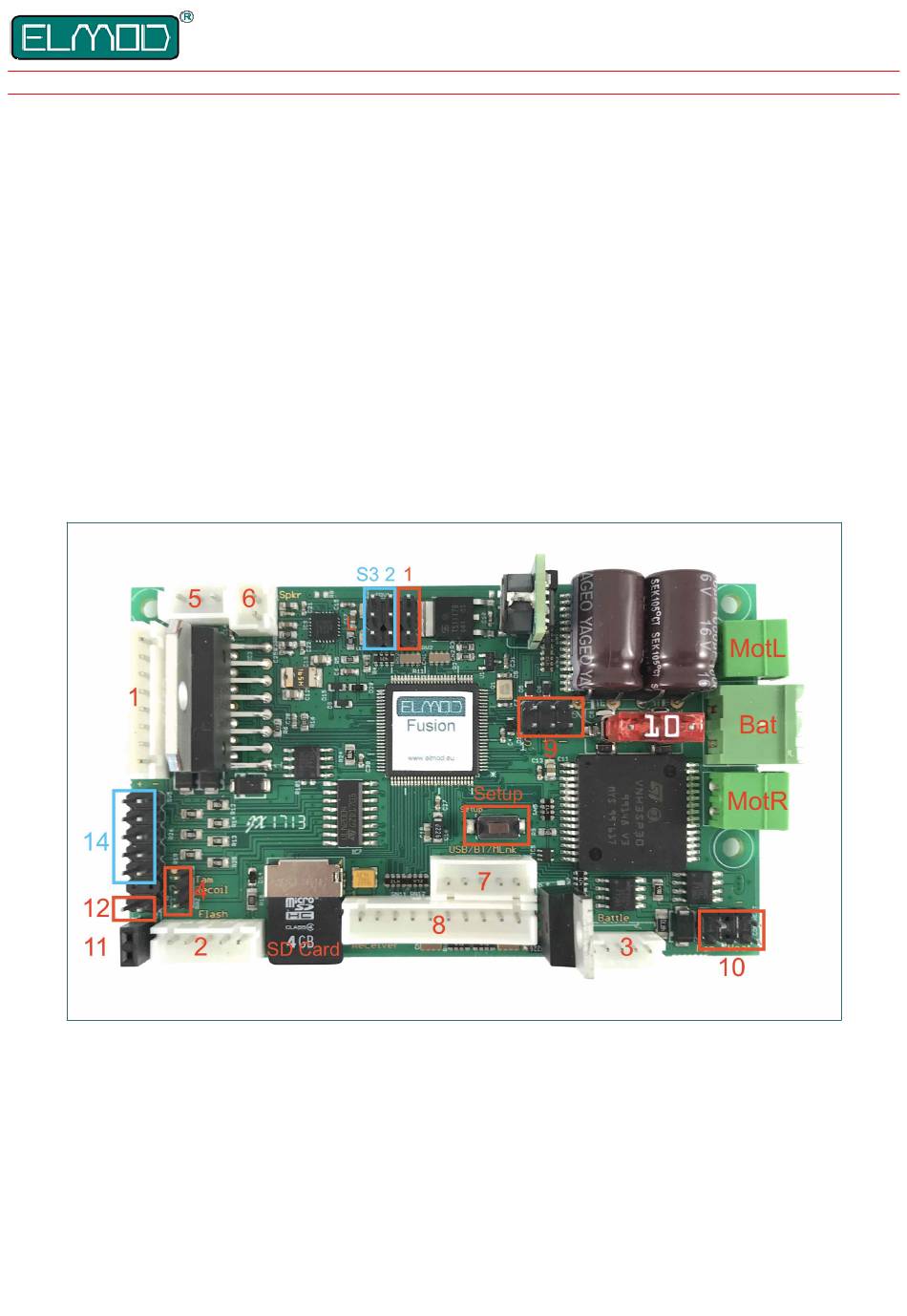

Connectors and operating elements
®
)
®
, HengLong
®
)
®
barrel recoil mechanics
5
connector for the volume control rotary knob
6
connector for the loudspeaker
7
connector for the USB dongle and ElMod BT adapter
8
connector for the RC receiver
9
connectors for external motor drivers
10
connector for a smoke unit
11
connector for Taigen
12
connector for Taigen
additively Fusion PRO (marked blue)
14
connector for additional lights
S2,S3
servo 2 & 3
- 1 -
®
, HengLong
®
recoil/shot mechanics
®
, HengLong
®
recoil servo pcb
© ElMod - 19-12-28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElMod Fusion ECO
Summary of Contents for ElMod Fusion ECO
- Page 1 MotR connector for the right motor connector for the USB dongle and ElMod BT adapter MotL connector for the left motor connector for the RC receiver pushbutton for the setup, firmware update and reset...
-
Page 2: Power Supply
Power supply ElMod Fusion PRO can be used with batteries up to 12V. The ElMod Fusion ECO up to 10V. • Connect the battery to the battery plug. Connect the red cable to the "+" connector and the black cable to the "-"... - Page 3 All turret components are always supplied with full battery voltage. If motors with a lower voltage are to be used, the voltage must be reduced by adjusting the maximum speed in the ElMod App. For example, if a 7.2 V motor is used together with a 12 V battery, the setting for the maximum speed of this motor must not exceed 60% (60% of 12 V = 7.2...
-
Page 4: Light Functions
If your cabling differs from the one described here or if you are unsure, please contact your dealer's support! Errors in the wiring can damage or destroy the electronics of the tank or the ElMod circuit board! A further possibility to simulate the barrel recoil is the use of a dedicated servo with the appropriate mechanics. Details are described in this section Servos. -
Page 5: Pin Assignment
The hatch and radar function are auxiliary functions that are activated by additional commands of the RC radio (see chapter Function control). E.g. the commander's hatch may be attached to servo 1, AA radar to servo 2 and the driver's hatch to servo 3, the functions are triggered as follows: - 5 - © ElMod - 19-12-28... - Page 6 Hit count Time in seconds Mushroom blinks setting slight slow strong slow destructi reload invulnerability delay until after power up down* down* time after a hit resurrection test mode light middle heavy - 6 - © ElMod - 19-12-28...
- Page 7 If the connections on your receiver are not protected against reverse polarity, consult the receiver's instructions for the actual pin assignment. Incorrectly inserted plugs will not damage - 7 - © ElMod - 19-12-28...
- Page 8 To start the engine the throttle control must be moved to the upper most position and hold until the ignition sequence starts (see image below). Wait until the ignition sequence is finished and the idle sound is played. Now the vehicle is operational. - 8 - © ElMod - 19-12-28...
- Page 9 "User 1" to "User 8" is played. Custom user sounds may be easily added with the Sound Manager. Channel 6 (ElMod Fusion ECO) or channels 6 & 7 (ElMod Fusion PRO) may be assigned freely to different functions with - 9 - © ElMod - 19-12-28...
-
Page 10: Status Leds
The function layout is shown below. Short operation means holding for about 1 sec. Long operation means holding for 2 sec or longer. * ElMod Fusion PRO only. Extended function control (channels 3 to 7) If channels 5 or 6 and 7 are assigned to knob/slide controls, the number of available user sounds or user functions increases: •... -
Page 11: Installation
Depending on the manufacturer and settings, receivers can react unpredictably to an interruption of the radio link and, for example, continue to output the last correctly received signal. First start up • Make sure that all cables have been laid correctly. • Switch on the radio transmitter. - 11 - © ElMod - 19-12-28... -
Page 12: Battery Protection
Every five seconds the announcement "Low voltage" is played. To switch off the active battery protection again, the battery has to be replaced or recharged and electronics must be switched off and on again. Installation of the ElMod App With the help of the free ElMod App it is possible to customize the electronics to your needs. -
Page 13: Parameter Configuration
• Now drive a few curves at top speed. • If the radius of the curve is too large (vehicle does not steer strongly enough), increase the values for the parameters Outer chain turn power and Inner chain turn power equally. - 13 - © ElMod - 19-12-28... -
Page 14: Reset To Factory Defaults
It's not necessary to deinstall the existing version before. In-Depth informations Several documents describing various aspects of the ElMod Fusion Modules are available in our knowledge base which may be found on our web site. - 14 - © ElMod - 19-12-28... - Page 15 According to DIN VDE 0869, the person who makes an assembly ready for operation by extension or housing installation is regarded as the manufacturer and is obliged to supply all accompanying documents when passing on the product and also to state his name and address. - 15 - © ElMod - 19-12-28...
- Page 16 Not suitable for Children under 14 years. Ne convient pas pour des enfants de moins de 14 ans. Niet geschikt voor kinderen onder de 14 jaar. ElMod Thomas Kusch Seebuckweg 9 D-78054 Villingen-Schwenningen, Germany ElMod Thomas Kusch info@elmod.eu http://www.elmod.eu - 16 - © ElMod - 19-12-28...
