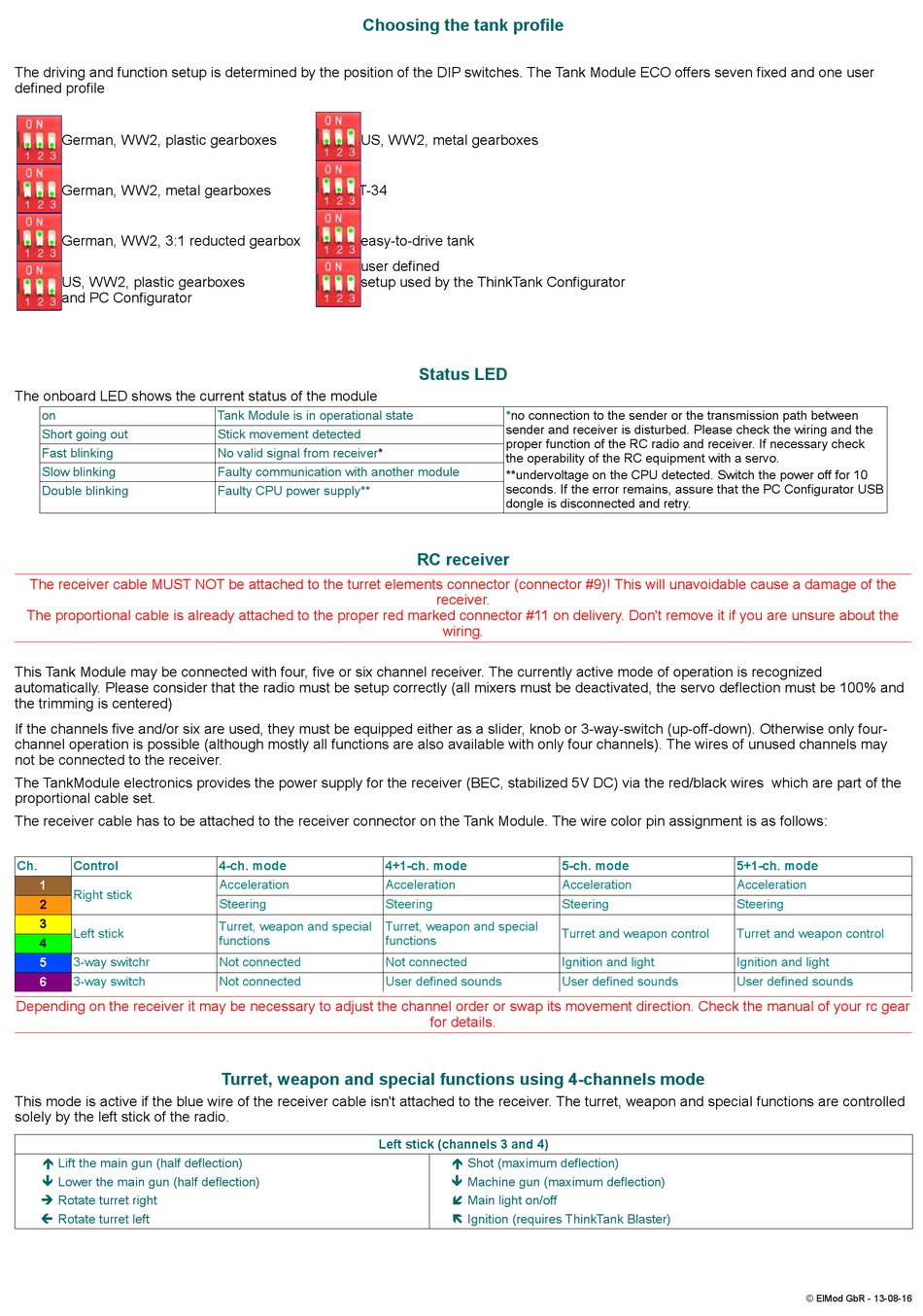

ElMod ThinkTank Tank Module ECO Flex Instructions For Assembly And Handling page 2

The driving and function setup is determined by the position of the DIP switches. The Tank Module ECO offers seven fixed and one user
defined profile
German, WW2, plastic gearboxes
German, WW2, metal gearboxes
German, WW2, 3:1 reducted gearbox
US, WW2, plastic gearboxes
and PC Configurator
The onboard LED shows the current status of the module
on
Short going out
Fast blinking
Slow blinking
Double blinking
The receiver cable MUST NOT be attached to the turret elements connector (connector #9)! This will unavoidable cause a damage of the
The proportional cable is already attached to the proper red marked connector #11 on delivery. Don't remove it if you are unsure about the
This Tank Module may be connected with four, five or six channel receiver. The currently active mode of operation is recognized
automatically. Please consider that the radio must be setup correctly (all mixers must be deactivated, the servo deflection must be 100% and
the trimming is centered)
If the channels five and/or six are used, they must be equipped either as a slider, knob or 3-way-switch (up-off-down). Otherwise only four-
channel operation is possible (although mostly all functions are also available with only four channels). The wires of unused channels may
not be connected to the receiver.
The TankModule electronics provides the power supply for the receiver (BEC, stabilized 5V DC) via the red/black wires which are part of the
proportional cable set.
The receiver cable has to be attached to the receiver connector on the Tank Module. The wire color pin assignment is as follows:
Ch. Control
1
Right stick
2
3
Left stick
4
3-way switchr
5
3-way switch
6
Depending on the receiver it may be necessary to adjust the channel order or swap its movement direction. Check the manual of your rc gear
This mode is active if the blue wire of the receiver cable isn't attached to the receiver. The turret, weapon and special functions are controlled
solely by the left stick of the radio.
é Lift the main gun (half deflection)
ê Lower the main gun (half deflection)
è Rotate turret right
ç Rotate turret left
Choosing the tank profile
US, WW2, metal gearboxes
T-34
easy-to-drive tank
user defined
setup used by the ThinkTank Configurator
Tank Module is in operational state
Stick movement detected
No valid signal from receiver*
Faulty communication with another module
Faulty CPU power supply**
4-ch. mode 4+1-ch. mode
Acceleration Acceleration
Steering Steering
Turret, weapon and special Turret, weapon and special
functions functions
Not connected Not connected
Not connected User defined sounds
Turret, weapon and special functions using 4-channels mode
Left stick (channels 3 and 4)
Status LED
*no connection to the sender or the transmission path between
sender and receiver is disturbed. Please check the wiring and the
proper function of the RC radio and receiver. If necessary check
the operability of the RC equipment with a servo.
**undervoltage on the CPU detected. Switch the power off for 10
seconds. If the error remains, assure that the PC Configurator USB
dongle is disconnected and retry.
RC receiver
receiver.
wiring.
5-ch. mode
Acceleration
Steering
Turret and weapon control
Ignition and light
User defined sounds
for details.
é Shot (maximum deflection)
ê Machine gun (maximum deflection)
 Main light on/off
 Ignition (requires ThinkTank Blaster)
5+1-ch. mode
Acceleration
Steering
Turret and weapon control
Ignition and light
User defined sounds
© ElMod GbR - 13-08-16
