Tyco DV-5A Manual

DV-5 Automatic Water Control Valve
A
Remote-Resetting Deluge Fire Protection Systems
1-1/2 Inch to 8 Inch (DN40 to DN200)
General
Description

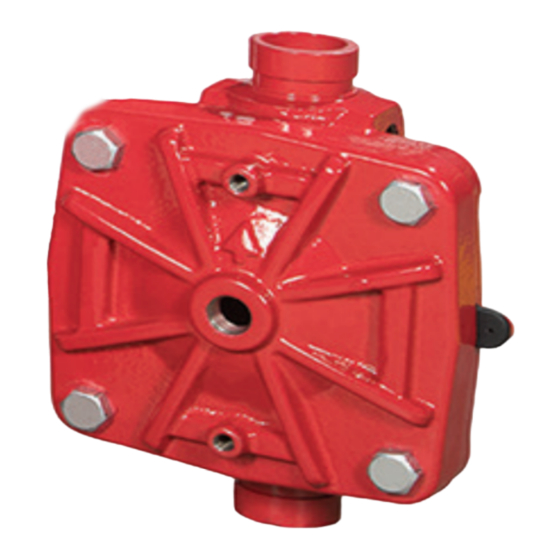

The TYCO DV-5 Automatic Water
A
Control Valves are diaphragm type
valves that can be used in remote-
resetting deluge fire protection
systems. When properly trimmed, the
DV-5 Valve with Remote-Resetting
A
Trim can be opened and closed during
a full-flow condition from a remote
location. Key features are as follows:
• Remote-resetting feature provides
the ability to reset the valve from one
or more locations.
• Compact, space-saving design
reduces valve room footprint and
construction costs.
• Electric actuation is compatible with
many types of automatic and manual
release options.
• Actuation of fire alarms upon system
operation is provided.
The DV-5 Valves are offered with the
a
DV-5 Valve and separately ordered
a
semi-assembled trim shown in Figure
6, or, for ease of installation, with the
DV-5 Valve completely trimmed with or
a
without a System Main Control Valve.
The diaphragm style design of the
DV-5 Valve allows external resetting,
A
providing for easy resetting of a deluge
system without having to open a valve
handhole cover to manually reposition
a clapper and/or latch mechanism.
Simply re-pressurizing the diaphragm
chamber resets the valve.
Operation of the DV-5
A
Remote-Resetting Trim is provided by
an automatic electric detection system
or remote manual electric activation.
The easily installed trim configura-
tion for the DV-5 Valve with Remote-
A
Resetting Trim provides for emergency
(manual) release of the valve at the
valve location.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Page 1 of 20
End Connection
Inlet
Thread
Groove
Flange
Flange
Valve with
The DV-5
A
nal coating of the valve to provide
corrosion resistance. The external cor-
rosion resistance of the epoxy coating
permits the use of the DV-5
rosive atmospheres associated with
many types of industrial processing
plants and outdoor installations.
NOTICE
The DV-5
A
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
DECEMBER 2018
Available End Connections and Weights — lb/(kg)
1-1/2 2
Outlet
(40) (50)
26 25
Thread
(11,8) (11,3)
25 25
Groove
(11,3) (11,3)
Groove N/A N/A
Flange N/A N/A
features internal and exter-
in cor-
A
Valves described herein
Worldwide
www.tyco-fire.com
Contacts
Nominal Valve Size
ANSI Inches
(DN)
3 4 6
(80) (100) (150)
N/A N/A N/A
60 95 177
(27,2) (43,1) (80,3)
66 106 190
(30,0) (48,1) (86,2)
72 116 204
(32,7) (52,6) (92,5)
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any other authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
8
(200)
N/A
327
(148,3)
346
(157,0)
365
(165,6)
TFP1325
