Wyrestorm MX-0404-H2 Quick Start Manual

4x4 or 6x6 4K HDMI Matrix Switcher
with HDCP 2.2 Encryption
MX-0404-H2 | MX-0606-H2
Pure HDMI 4x4 or 6x6 matrix switch with support for full 4K resolutions and HDCP 2.2.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.

In the Box

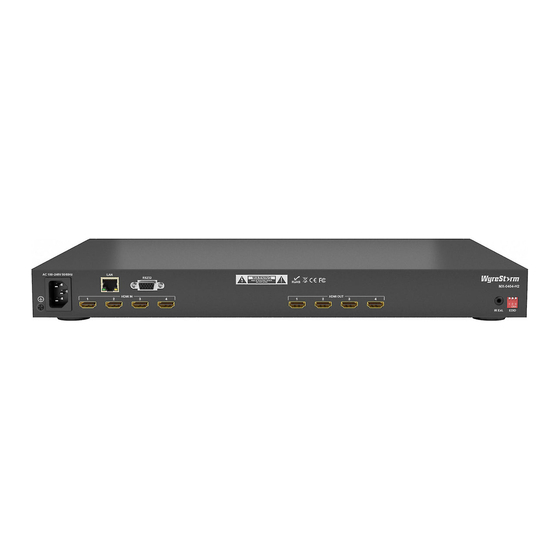

1x MX-0404-H2 or MX-0606-H2 Matrix Switcher
1x Handheld IR Remote
1x IR Receiver (38kHz)
1x AC Power Cord with EU Plug
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x USB to DB9 RS-232 Cable
2x Mounting Brackets
1x Quickstart Guide

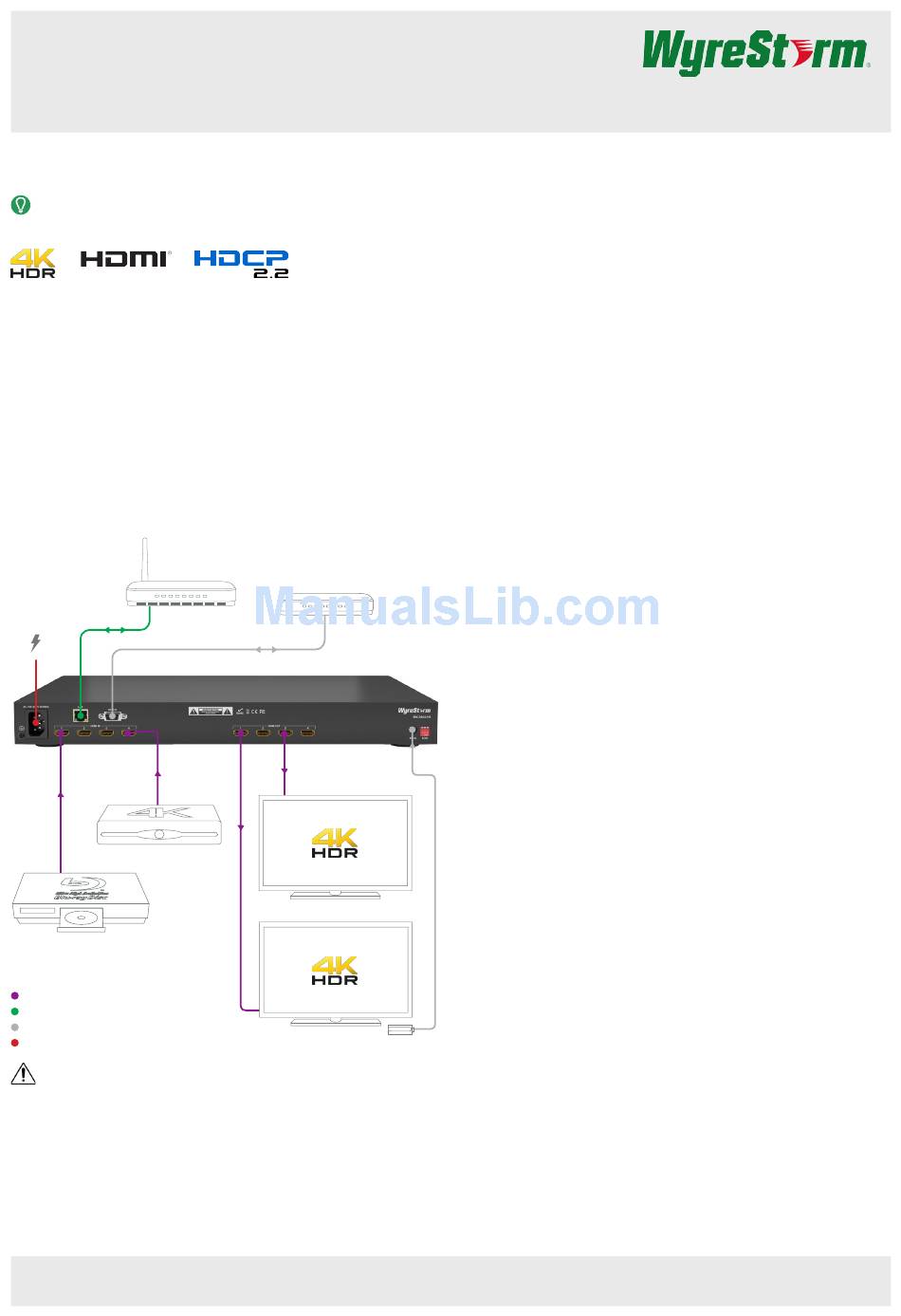

Basic Wiring Diagram
LAN
Cat5/5e/6
AC Mains
HDMI from
source
HDMI from
source
UHD Source
UHD Source
KEY
HDMI
HDBaseT / Ethernet
IR / RS-232
Power
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI connections while
the matrix is powered on. Doing so may cause damage to the units or
connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Copyright © 2015 WyreStorm Technologies |
MX-0404-H2 | MX-0606-H2 Quickstart Guide | 160722
RS-232 to Control System
HDMI to
display
UHD Display
HDMI to
display
UHD Display
wyrestorm.com

Before Beginning

• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the
list.

Pre Wire

1. (Optional) If using IR receivers or an IR control system, run the wire
and terminate per the
2. (Optional) If using RS-232 to control the matrix, run the wire and
terminate per the

Installation

1. Connect an HDMI source to the HDMI In on the Matrix using an
HDMI cable from a high quality brand such as
Repeat for additional HDMI sources.
Connect a display device to Output 1 using an HDMI cable from
2.
a high quality brand such as
additional displays.
3. (Optional) Using the included IR receiver, connect the 3.5mm (1/8in)
stereo plug to the matrix IR Ext port. If using a control system,
connect an IR out port on the control system to the IR Ext port on
the matrix using the
in Pre Wire
4. (Optional) Using the cable created in
9-pin DB9 Female connector to the RS-232 port on the matrix and
the opposite end to a port on a control system.
5. Connect the supplied AC power cord and power on the matrix.
6. Configure EDIDs per the
IR Receiver
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
Ir Ext (Receiver) Wiring
Rs-232 Wiring section.
WyreStorm
WyreStorm CAB-IR-LINK
step 1.
Pre Wire
Edid Settings section.
In the Box
section.
WyreStorm Express.
Express. Repeat for
or the cable created
step 2, connect the
