4x4 4K HDR HDBaseT Matrix Kit with HDCP 2.2
MXV-0404-H2A-KIT
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.

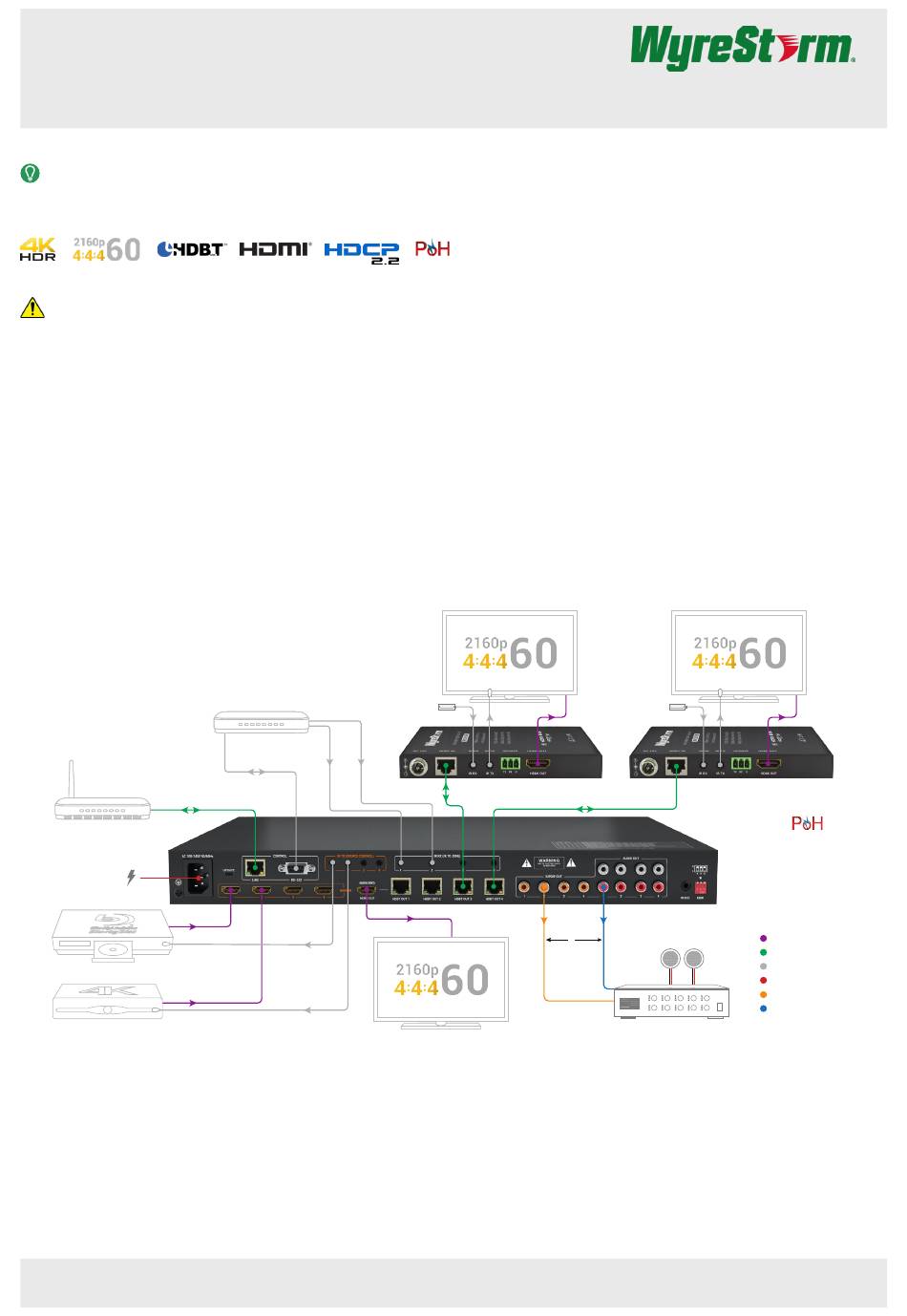

Basic Wiring Diagram
LAN Cat6a/7
Wireless Router
AC Mains
Power
Blu-ray Player
HDMI from source
Satellite Box
HDMI from source
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
MXV-0404-H2A-KIT Quickstart Guide | 190219
section for important wiring
Control System
CAB-IR-LINK (Sold Separately)
IR
IR
Matrix Control Only
IR TX
IR TX
In the Box

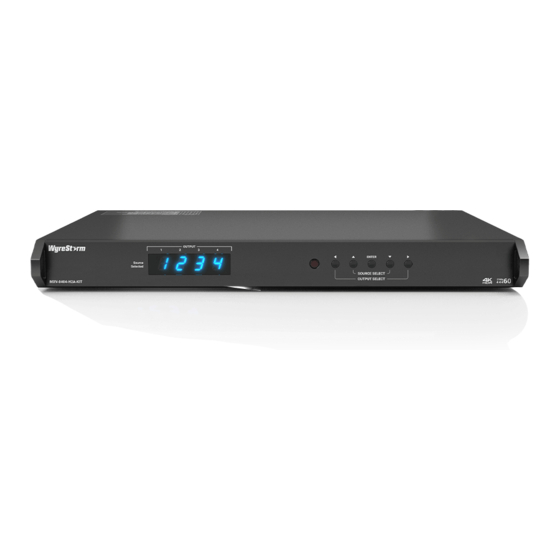

1x MXV-0404-H2A-KIT Matrix
4x MXV-0404-H2A-KIT Receivers
1 x AC Power Cord with EU pins
1 x AC Power Cord with US pins
1 x AC Power Cord with UK pins
1 x AC Power Cord with AU pins
1x IR Remote
4x IR Emitter
4x IR Receiver
1x IR Receiver for Matrix IR Ext.
2x Matrix Mounting Brackets with screws
8x Receiver Mounting Brackets with screws (2 per RX)
1x Quickstart Guide (this document)
HDMI to display
IR RX
IR TX
MXV-0404-H2A-KIT (Receiver)
Cat6a/7
Cat6a/7
HDMI to display
or
Display Mirrored to
HDBaseT Output
1 of 4
Quickstart Guide
IR RX
IR TX
MXV-0404-H2A-KIT (Receiver)
Receivers
powered by
MXV-0404-H2A-KIT
(Matrix)
KEY
Amplifier
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
HDMI to display
HDMI
HDBaseT / Ethernet
Control
Power
Digital Audio
Analog Audio
Advertisement
Related Manuals for Wyrestorm MXV-0404-H2A-KIT
Summary of Contents for Wyrestorm MXV-0404-H2A-KIT
- Page 1 4x4 4K HDR HDBaseT Matrix Kit with HDCP 2.2 Quickstart Guide MXV-0404-H2A-KIT WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x MXV-0404-H2A-KIT Matrix •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 Open a web browser and enter the IP Address of the matrix. Default: 192.168.11.143 | Password: admin Note: The installer password and general password are the same by default. WyreStorm recommends changing the password for installer login to avoid any unwanted changes being made to the matrix configuration.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
