speaker installation
installing planning
• Amplifier/Receiver: Choose location the based on accessibility requirements and wiring
constraints for power, speakers, and audio devices.
• Ceiling Sensor: Locate in the center of the ceiling; maintain line of sight; keep away from direct
light and electrical interference.
• Speakers: Mark location for wall mount vs. ceiling mount, and confirm wiring run to the amplifier. Front of Room
Ensure speakers evenly cover the listening area.
• Integrations/Connections: Confirm location of other systems you plan to connect to the amplifier
such as audio devices, intercom connections, fire alarm, noting how the wiring needs to run.
Ceiling Sensor
• Microphones/Charger: Confirm microphone charging location for daily use/charging.
The IMA-120 has two channels of amplified audio, rated for a minimum 4-ohm speaker load (two
8-ohm speakers each). There is one blue phoenix style speaker connector on the back panel, provid-
ing one pair of speaker terminals. When using 4 speakers they must be wired in parallel.
Ceiling Speakers

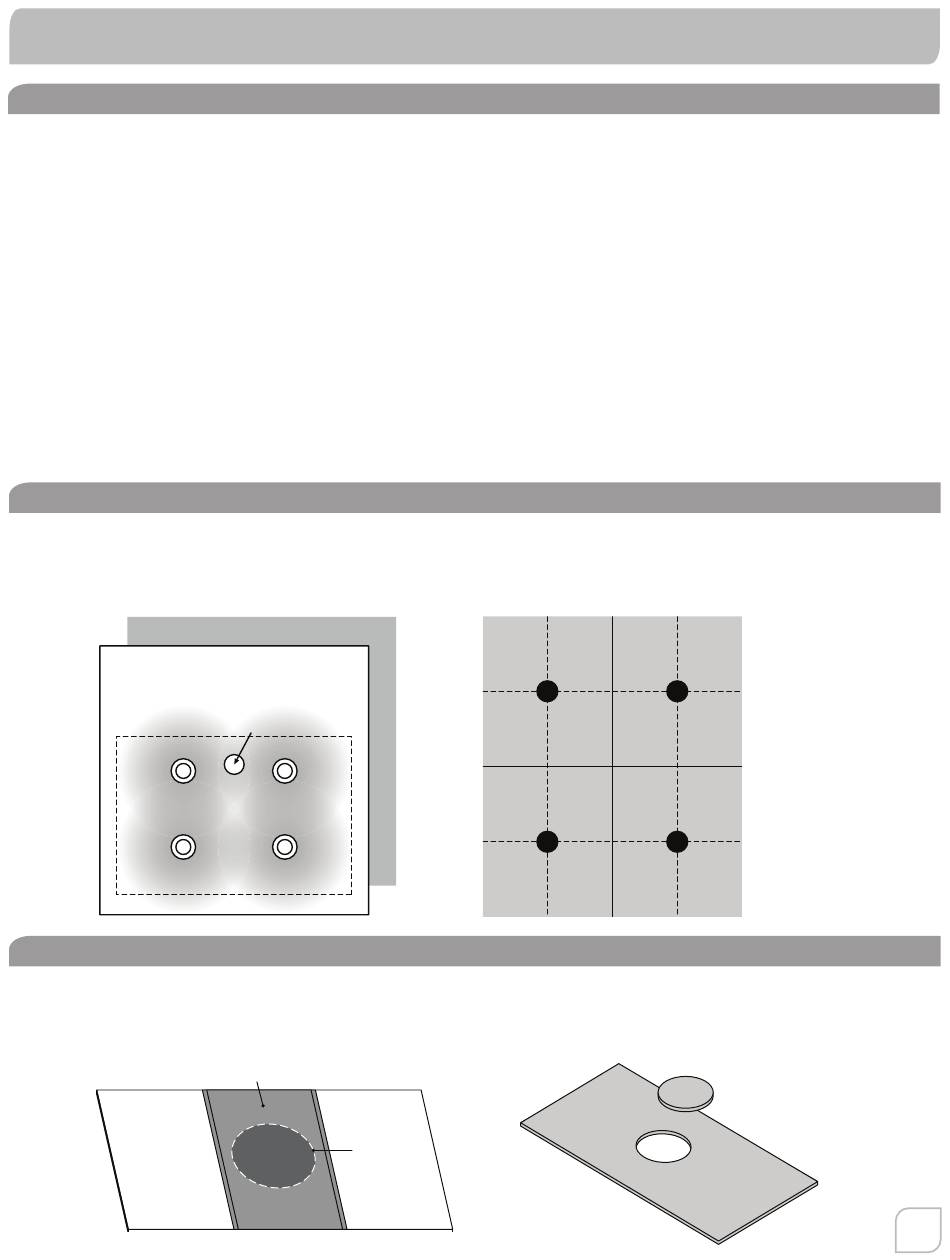

ceiling speaker installation
List Listening Area
1. Determine the listening area based on where students are seated.
2. Divide listening area into quadrants.
3. Locate and identify the center most tile in each quadrant to ensure even distribution of sound.
Front of Room
Ceiling Sensor
Ceiling Speakers
Listening Area
SP-628
4. Lay ceiling tile face down on clean flat surface.
5. Lay tile bridge on ceiling tile and center it.
6. Trace and cut the large hole using a keyhole or drywall saw.
Figure 2: Cutting the Tile
Back Side of
Ceiling Tile
Area
Tile Bridge
Cut Out Area
Front of Room
Receiver
Amplifier
Ceiling Sensor
Wall Speakers
Front of Room
Receiver
Amplifier
Ceiling Sensor r r
Wall Speakers
