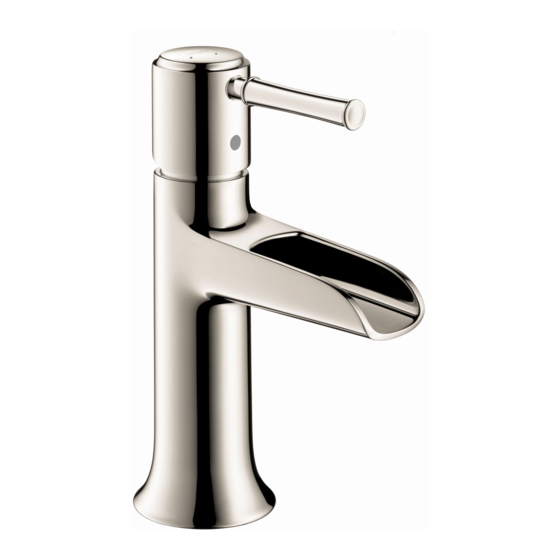

Hans Grohe Talis C 14127 1 Series Installation/User Instructions/Warranty

Hide thumbs Also See for Talis C 14127 1 Series:

Advertisement

Quick Links

Download this manual
EN Installation / User Instructions / Warranty
FR Instructions de montage / Mode d'emploi / Garantie
ES Instrucciones de montaje / Manejo / Garantía
Talis C
14127xx1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Talis C 14127 1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hans Grohe Talis C 14127 1 Series

Summary of Contents for Hans Grohe Talis C 14127 1 Series

  • Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Talis C 14127xx1...

  • Page 2: Technical Information

    English Français Technical Information Données techniques Water pressure Pression d’eau Recommended 15 - 75 PSI (0.1 - 0.5 MPa) recommandée 15 - 75 PSI (0.1 - 0.5 MPa) Maximum 145 PSI (1 MPa) maximum 145 PSI (1 MPa) Hot water temp. Température d'eau chaude Recommended 120°-140°...
  • Page 3 Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente 10 mm recomendada 120°-140° F (48° - 60° C)* 19 mm max.
  • Page 4 Talis C 14127xx1 88509xx0 2¼" 4" (100 mm) (57 mm) 1¼" (32 mm) Ø2⅛" (54 mm) Ø1¼" (32 mm) 1¼" O.D. (32 mm) 10 mm ⅜"...

  • Page 5: Installation / Installation / Instalación

    Installation / Installation / Instalación Español English Français Install the pull rod. Installez la tirette. Instale el tirador. Coloque el grifo y el aro de Place the faucet and sealing ring Placez le robinet et l’anneau on the mounting surface. d’étanchéité...
  • Page 6 2.2 ft-lb (3 Nm) English Français Español Tighten the tensioning screws Serrez les vis de pression à Apriete los tornillos tensores con using a screwdriver. l’aide d’un tournevis. un destornillador. Install the adapters on the stops. Installez les adaptateurs sur les Instale los adaptadores sobre butées d’arrêt.
  • Page 7 Installation / Installation / Instalación shorter longer plus court plus long más corto más largo Petroleum-based plumbers putty can Les mastics de plomberie à base de pé- Masilla de petróleo-basó puede da- damage the surface of some sinks. trole peuvent endommager la surface ñar la superficie de algún bañeras.
  • Page 8 Set the High Temperature Limit Stop (optional) / Réglage de la butée limite d’eau chaude (en option) / Ajuste el tope de límite de alta temperatura (opcional) 60° C 10° C 0.3 MPa 140° F 50° F 44 PSI 4 mm 4 mm 100ºF 38ºC...
  • Page 9 Replacement Parts / Pièces détachées / Repuestos Talis C 14127xx1 14191xx0 98863xx0 96338000 98864000 95140000 97685000 98865000 98866000 96657xx0 88509000 13961000 95141000 95291000 88802000 xx = Colors / Couleurs / Acabados 00 = Chrome 62 = Oil Rub Bronze 82 = Brushed Nickel 83 = Polished Nickel...
  • Page 10 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrado cold chaud froid caliente frío Cleaning / Nettoyage / Limpieza...
  • Page 11 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.

  • Page 12: Para Obtener Mejores Resultados

    Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •...
  • Page 15 Hansgrohe, Inc. Limited Warranty Offering our customers the highest quality at all times is a funda- • abuse, neglect or improper or incorrectly performed mental part of the Hansgrohe, Inc. company philosophy. We of- installation, maintenance or repair, including the use of fer consumers a limited warranty on our hansgrohe and AXOR abrasive or caustic cleaning agents or “no-rinse”...
  • Page 16 TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE This warranty gives you specific legal rights, and you may also PRODUCT FOR AN UNINTENDED APPLICATION), FREEZING have other rights which vary from state to state. WATER, EXCESSIVE WATER PRESSURE, PIPE CORROSION IN PRODUCT I NSTRUC TIONS A ND QUE STIONS THE HOME IN WHICH THE PRODUCT IS INSTALLED, ABUSE, NEGLECT OR IMPROPER OR INCORRECTLY PERFORMED...
