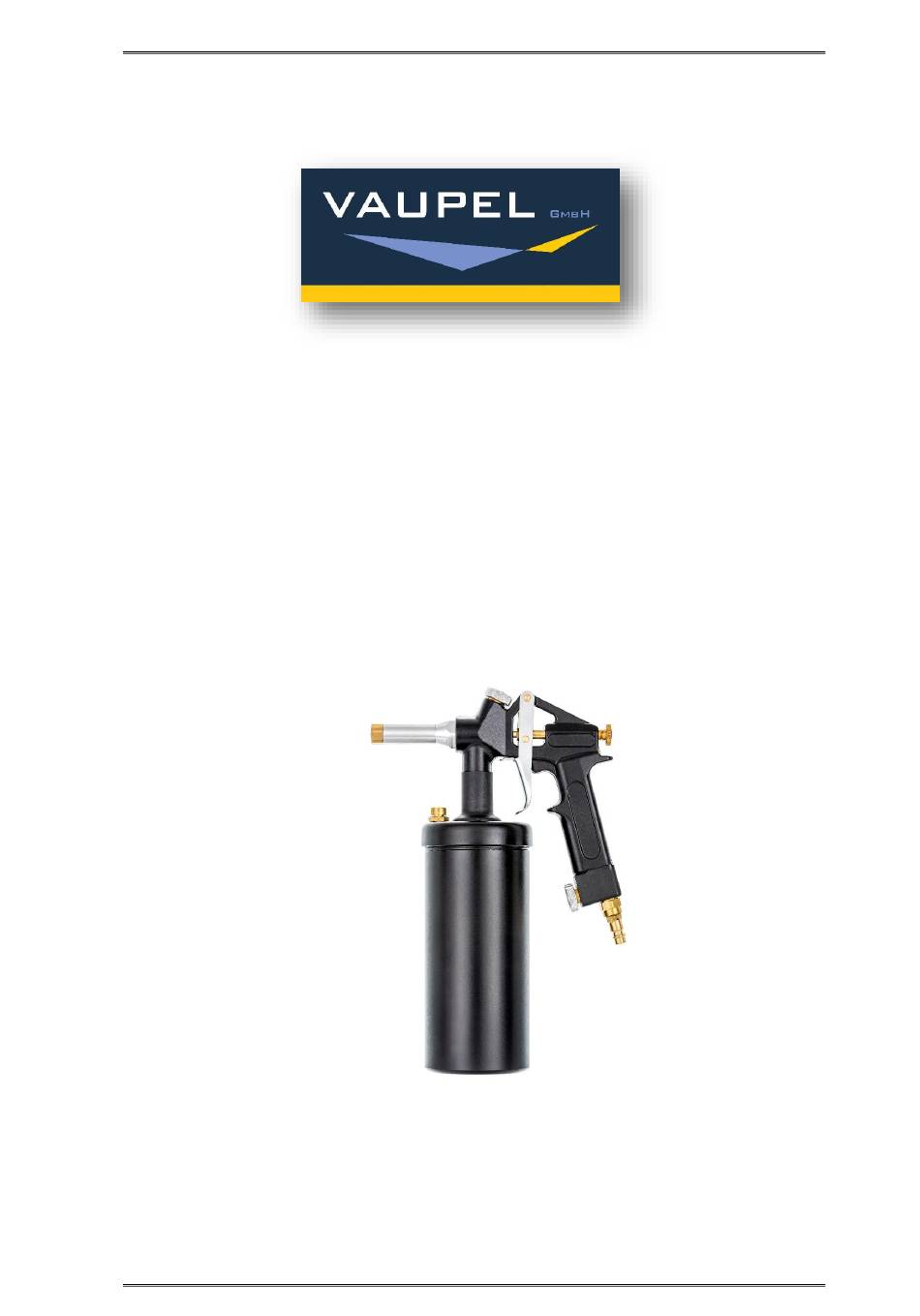

- Page 1 OPERATING MANUAL 3100 ASR V4.4/20-EN Pressure cup spray gun 3100 ASR Art. no.: 31306 / 31301 Page| 1...
-
Page 2: Table Of Contents
OPERATING MANUAL 3100 ASR V4.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before working with the pressure cup gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your pressure cup gun. -
Page 3: Technical Data
2. Extent of delivery Pressure cup gun, compressed air connection, operating manual. Additionally included with 3100 ASR set: Hose set 3900 WHSK 02 or 04. 3. Intended use This pressure cup gun is a compressed air operated quality tool for professional use. - Page 4 OPERATING MANUAL 3100 ASR V4.4/20-EN Protect yourself and the environment by taking appropriate precautions against the risk of accidents and observe the following instructions in your own inter- est: The operator must ensure proper operation. Do not bring compressed air and/or medium into contact with skin or eyes.
-
Page 5: Installation / End Of Work
OPERATING MANUAL 3100 ASR V4.4/20-EN 6. Installation / end of work Preparing the gun for the first start-up: Screw in the compressed air connection and tighten it firmly using a 13 mm open-end wrench or ring spanner, if necessary glue it in place. -
Page 6: Storage
OPERATING MANUAL 3100 ASR V4.4/20-EN will ensure a long service life and trouble-free operation for this quality prod- uct. Attention: Pay attention to a proper disposal of the residues, which arise during the maintenance and care. 8. Storage The compressed air tool must be stored under the following conditions: ... -
Page 7: Warranty Terms
OPERATING MANUAL 3100 ASR V4.4/20-EN 10. Warranty terms The basis for all warranty claims is the complete pressure cup gun and the proof of purchase. Damage caused by improper handling of the pressure cup gun is not covered by the warranty. -
Page 8: Ec-Declaration Of Conformity
OPERATING MANUAL 3100 ASR V4.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Pressure cup gun Type designation: Type 3000 ASR Type description: Pressure cup spray gun Article number Manufacturer: 31306, 31301... -
Page 9: Notices
OPERATING MANUAL 3100 ASR V4.4/20-EN 13. Notices Page| 9... -
Page 10: Technical Drawing
OPERATING MANUAL 3100 ASR V4.4/20-EN 14. Technical drawing Page| 10... -
Page 11: Spare Parts List
OPERATING MANUAL 3100 ASR V4.4/20-EN 15. Spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer 83002 Nozzle needle complete 60 3104 007 Spring for nozzle needle...
