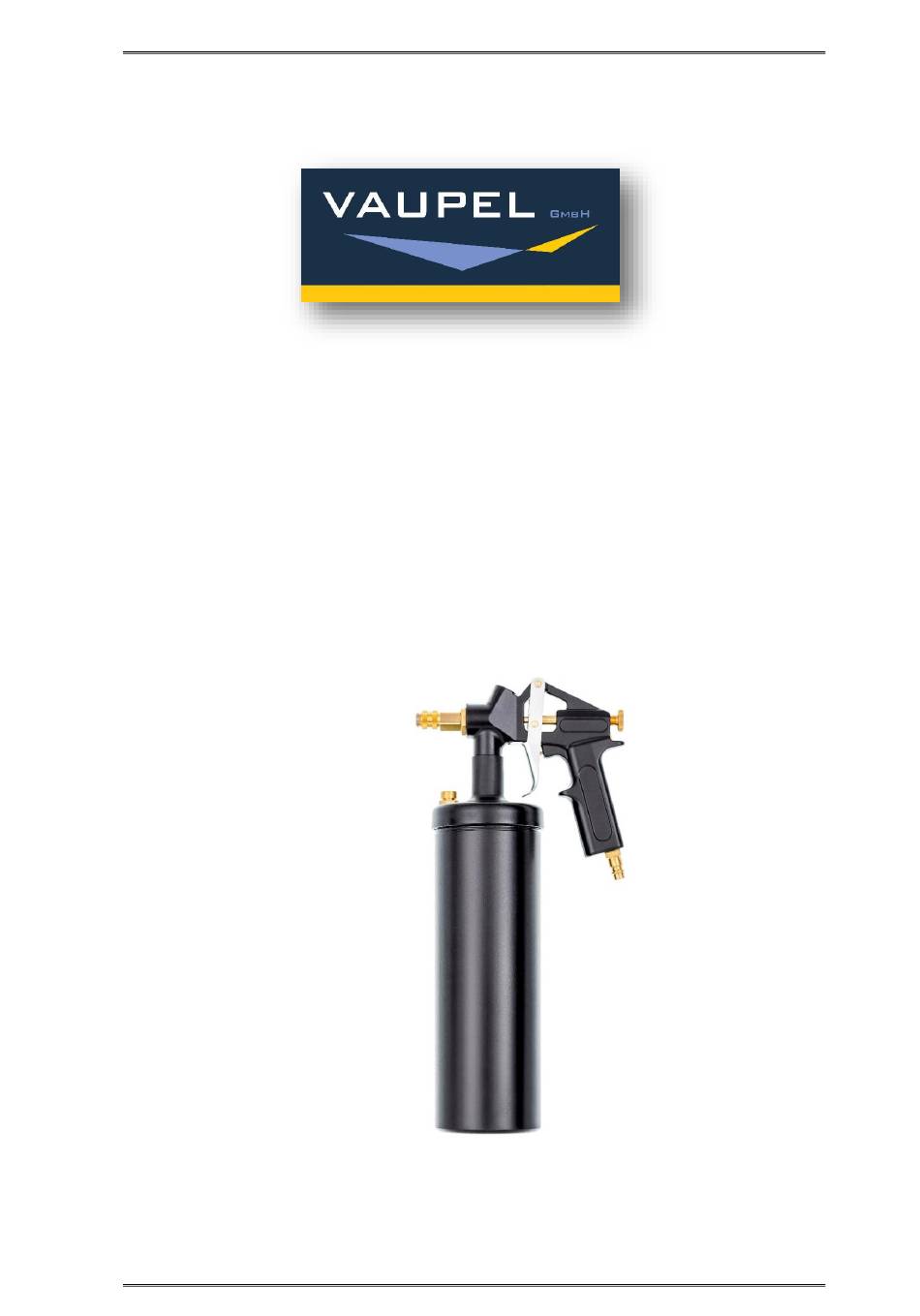

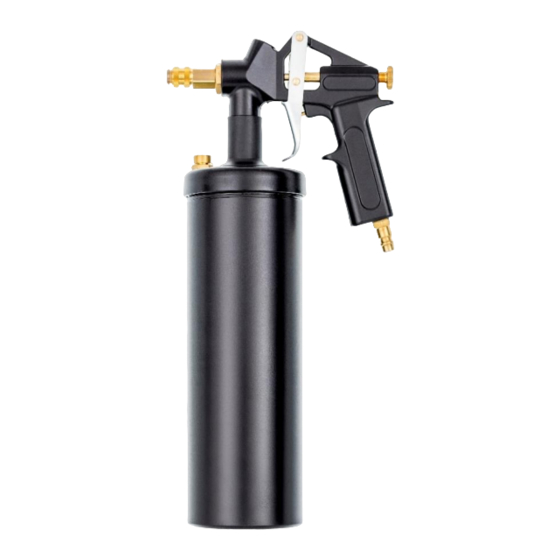

- Page 1 OPERATING MANUAL 3200 DVR V6.4/20-EN Cavity sealing- Pressure cup gun 3200 DVR Art. no.: 32001 / 32402 Page | 1...
-
Page 2: Table Of Contents
OPERATING MANUAL 3200 DVR V6.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before using the spray gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your pressure cup gun. -
Page 3: Technical Data
2. Extent of delivery Pressure cup gun, compressed air connection, operating manual. Additionally included with 3200 DVR set: Hose set 3900 WH 02 or 04.. 3. Intended use This pressure cup gun is a compressed air operated quality tool for professional use. - Page 4 OPERATING MANUAL 3200 DVR V6.4/20-EN Protect yourself and the environment by taking appropriate precautions against the risk of accidents and observe the following instructions in your own inter- est: The operator must ensure proper operation. Do not bring compressed air and/or medium into contact with skin or eyes.
-
Page 5: Installation / End Of Work
OPERATING MANUAL 3200 DVR V6.4/20-EN 6. Installation / end of work Preparing the gun for the first start-up: Screw in the compressed air connection and tighten it firmly using a 13 mm open-end wrench or ring spanner, if necessary glue it in place. -
Page 6: Storage
OPERATING MANUAL 3200 DVR V6.4/20-EN 8. Storage The compressed air tool must be stored under the following conditions: If residual material is present, store only upright. Carefully clean the pressure cup gun after each use. Store in a dry and dust-free place. -
Page 7: Address
OPERATING MANUAL 3200 DVR V6.4/20-EN Damage caused by lack of maintenance. Damage caused by dirt. Damage caused by untreated compressed air. If warranty claims are made, the pressure cup gun must be in its original condi- tion. -
Page 8: Ec-Declaration Of Conformity
OPERATING MANUAL 3200 DVR V6.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Pressure cup gun Type designation: Type 3200 DVR Type description: Cavity sealing pressure cup gun Article number Manufacturer : 32001, 32402... -
Page 9: Spare Parts List
OPERATING MANUAL 3200 DVR V6.4/20-EN 13. Spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer 83010 Nozzle needle complete 60 3104 007 Spring for nozzle needle... -
Page 10: Notices
OPERATING MANUAL 3200 DVR V6.4/20-EN 14. Notices Page | 10...
