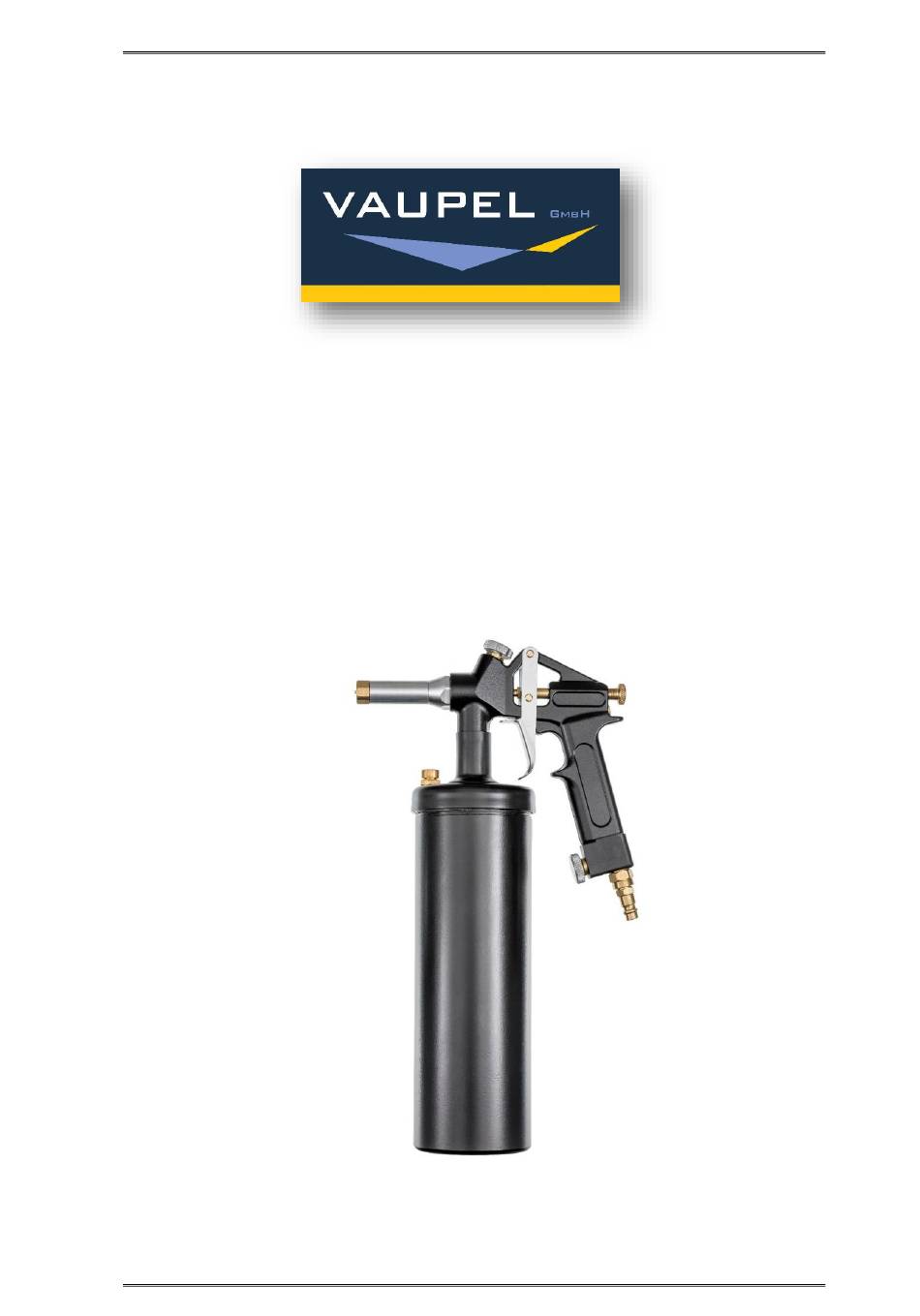

- Page 1 OPERATING MANUAL 3000 DV / DVR V5.4/20-EN Pressure cup spray gun 3000 DV / DVR Art. no.: 30001 / 30411 / 30112 / 30401 Illustration shows 3000 FGR Page | 1...
-
Page 2: Table Of Contents
OPERATING MANUAL 3000 DV / DVR V5.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before working with the pressure cup gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your pressure cup gun. -
Page 3: Technical Data
1 litre cans. 4. Features The effectiveness of the pressure cup gun 3000 DV / DVR is based on overpres- sure. For this purpose, pressure is built up in the pressure container by means of an air pressure integrated in the gun body. This transports the material pre- sent in the pressure container via a riser pipe to the material nozzle. - Page 4 OPERATING MANUAL 3000 DV / DVR V5.4/20-EN Protect yourself and the environment by taking appropriate precautions against the risk of accidents and observe the following instructions in your own inter- est: The operator must ensure proper operation. Do not bring compressed air and/or medium into contact with skin or eyes.
-
Page 5: Installation/End Of Work
OPERATING MANUAL 3000 DV / DVR V5.4/20-EN 6. Installation/end of work Preparing the gun for the first start-up: Screw in the compressed air connection and tighten it firmly using a 13 mm open-end or ring spanner, if necessary glue it in place. For the optional pressure regulator instead of the air volume regula- tor: Screw the pressure gauge included in the extent of delivery into the pres- sure regulator, glue it in if necessary. -
Page 6: Storage
OPERATING MANUAL 3000 DV / DVR V5.4/20-EN Attention: Pay attention to a proper disposal of the residues, which arise during the maintenance and care. 8. Storage The compressed air tool must be stored under the following conditions: If residual material is present, store only upright. -
Page 7: Warranty Terms
OPERATING MANUAL 3000 DV / DVR V5.4/20-EN 10. Warranty terms The basis for all warranty claims is the complete pressure cup gun and the proof of purchase. Damage caused by improper handling of the pressure cup gun is not covered by the warranty. -
Page 8: Ec-Declaration Of Conformity
OPERATING MANUAL 3000 DV / DVR V5.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Pressure cup gun Type designation: Type 3000 DV / DVR Type description: Pressure cup spray gun... -
Page 9: Spare Parts List
OPERATING MANUAL 3000 DV / DVR V5.4/20-EN 13. Spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer 83002 Nozzle needle complete 60 3104 007 Spring for nozzle needle... -
Page 10: Notices
OPERATING MANUAL 3000 DV / DVR V5.4/20-EN 14. Notices Page | 10...
