OPERATING MANUAL 3000 FG / FGR
V8.4/20-EN
Combination pressure cup spray gun
3000 FG / FGR
Art. no.: 30601 / 30610

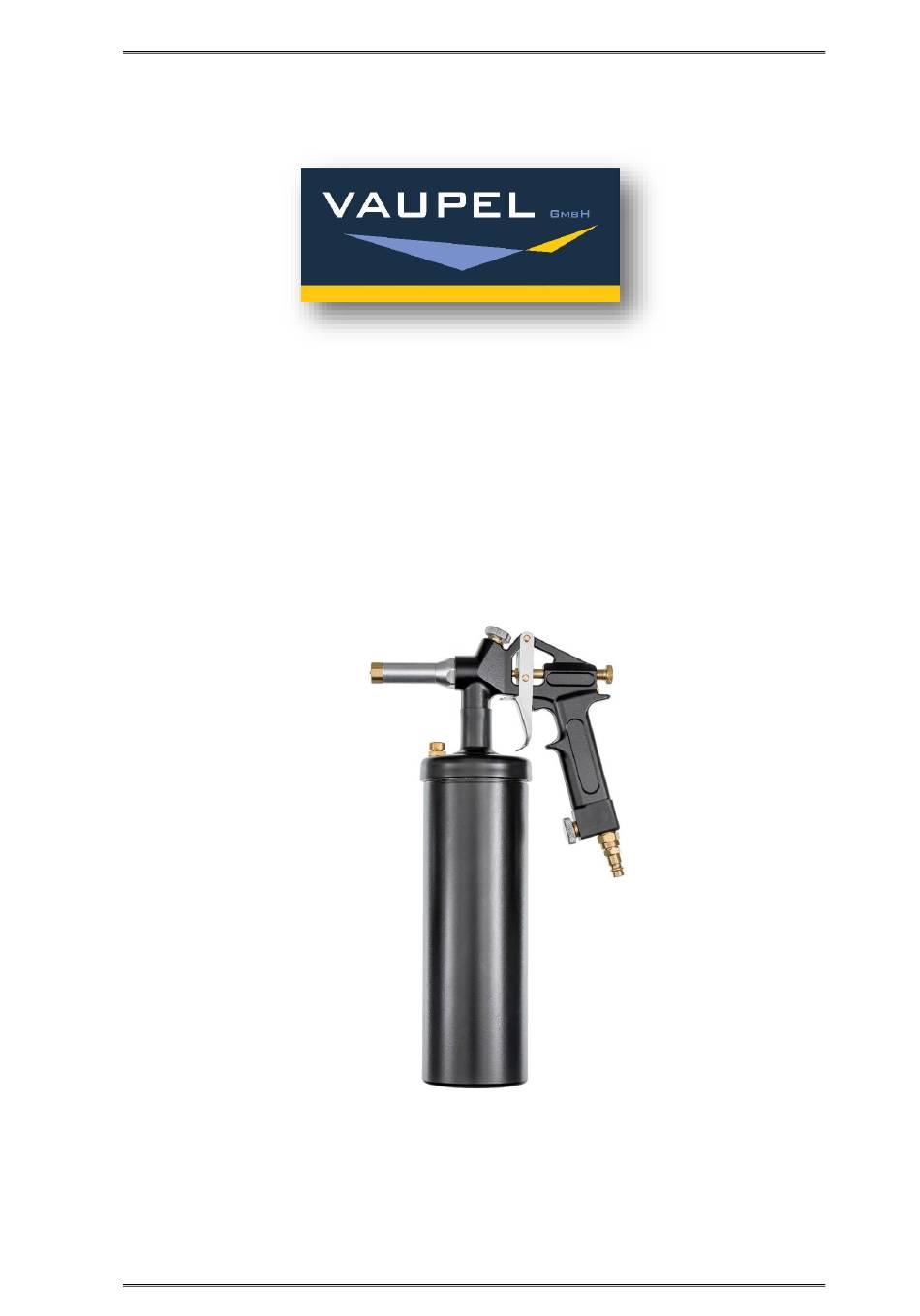

Illustration shows 3000 FGR
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 FG and is the answer not in the manual?

Questions and answers

Summary of Contents for VAUPEL 3000 FG

  • Page 1 OPERATING MANUAL 3000 FG / FGR V8.4/20-EN Combination pressure cup spray gun 3000 FG / FGR Art. no.: 30601 / 30610 Illustration shows 3000 FGR Page | 1...
  • Page 2: Table Of Contents

    OPERATING MANUAL 3000 FG / FGR V8.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before using the spray gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your pressure cup gun.
  • Page 3: Technical Data

    1 litre cans with plastic threads. 4. Features The effectiveness of the pressure cup gun 3000 FG / FGR is based on overpres- sure. For this purpose, pressure is built up in the container by means of an air duct integrated in the gun body. This conveys the material present in the pres- sure vessel via a riser pipe into the material nozzle.
  • Page 4 OPERATING MANUAL 3000 FG / FGR V8.4/20-EN Protect yourself and the environment by taking appropriate precautions against the risk of accidents and observe the following instructions in your own inter- est:  The operator must ensure proper operation.  Do not bring compressed air and/or medium into contact with skin or eyes.
  • Page 5: Installation/End Of Work

    OPERATING MANUAL 3000 FG / FGR V8.4/20-EN 6. Installation / end of work Preparing the gun for the first start-up: Screw in the compressed air connection and tighten it firmly using a 13 mm open-end wrench or ring spanner, if necessary glue it in place.
  • Page 6: Storage

    OPERATING MANUAL 3000 FG / FGR V8.4/20-EN Attention: Pay attention to a proper disposal of the residues, which arise during the maintenance and care. 8. Storage The compressed air tool must be stored under the following conditions:  If residual material is present, store only upright.
  • Page 7: Address

    OPERATING MANUAL 3000 FG / FGR V8.4/20-EN  In conformity with legal regulations, you receive a 24-month warranty on all products against material and manufacturing defects. Excluded from the warranty:  Wear parts.  Damage caused by improper use.  Damage caused by lack of maintenance.
  • Page 8: Ec-Declaration Of Conformity

    OPERATING MANUAL 3000 FG / FGR V8.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Pressure cup gun Type designation: Type 3000 FG / FGR Type description: Pressure cup spray gun...
  • Page 9: Spare Parts List

    OPERATING MANUAL 3000 FG / FGR V8.4/20-EN 13. Spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer 83002 Nozzle needle complete 60 3104 007 Spring for nozzle needle...
  • Page 10: Notices

    OPERATING MANUAL 3000 FG / FGR V8.4/20-EN 14. Notices Page | 10...
