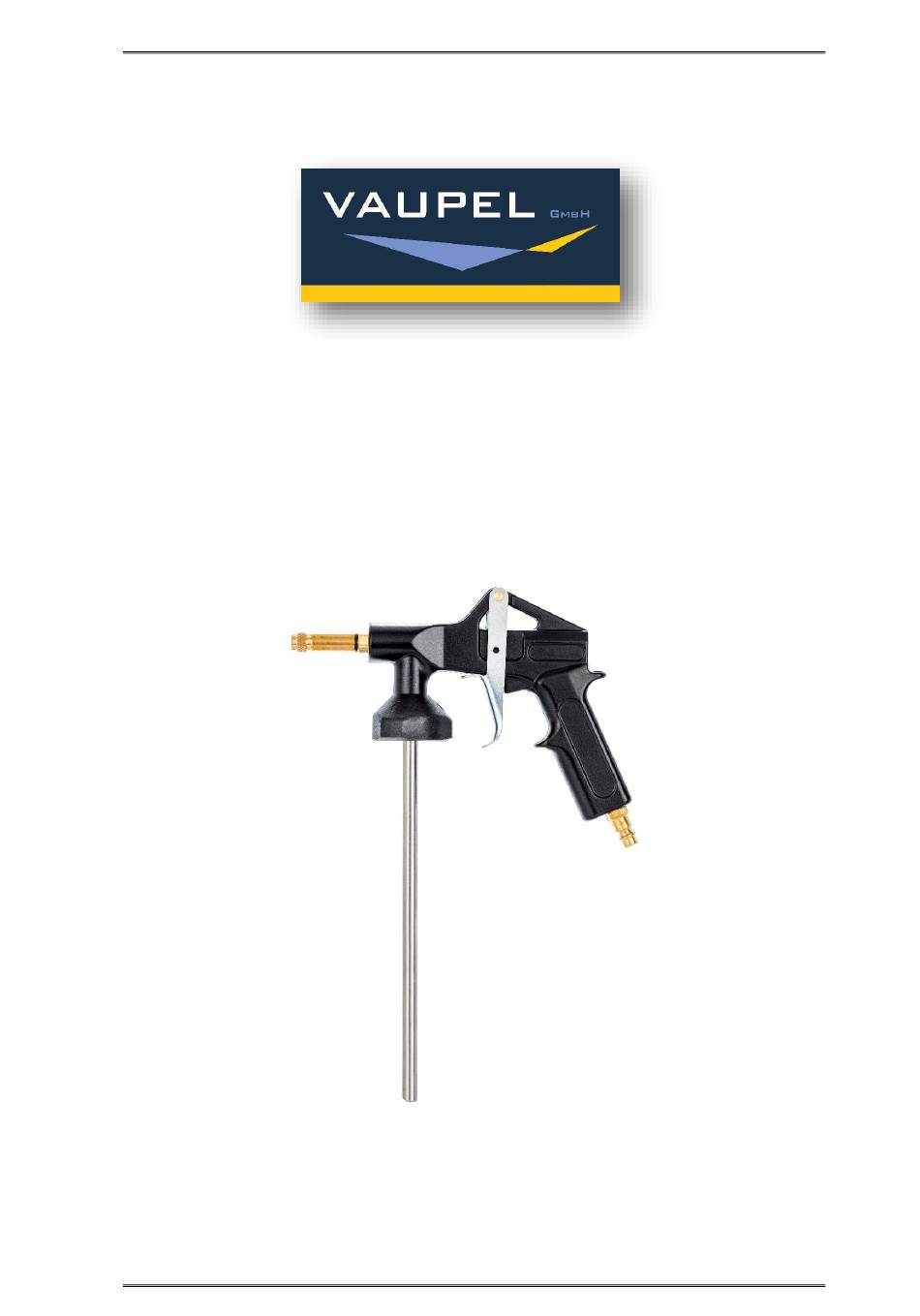

- Page 1 OPERATING MANUAL 2000 GS V7.4/20-EN Spray gun 2000 GS Art. no.: 20301, 20313 Page| 1...
- Page 2 OPERATING MANUAL 2000 GS V7.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before working with the spray gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your spray gun.
- Page 3 1 litre cans. 4. Features The effectiveness of the 2000 GS spray gun is based on the Venturi effect. For this purpose, an air stream is used which accelerates when the air nozzle flows through and thus generates negative pressure in the adjoining riser pipe.
- Page 4 OPERATING MANUAL 2000 GS V7.4/20-EN The following applies to all maintenance and repair work: • It is essential to disconnect the spray gun from the compressed air connection. • Only use original spare parts. • The maximum working pressure must not be exceeded (see point 1 "Technical data").
- Page 5 OPERATING MANUAL 2000 GS V7.4/20-EN 7. Maintenance and care After each use, disconnect the device from the compressed air supply and thor- oughly clean it. We recommend benzine or commercially available terpene- based cleaners. Do not use aggressive cleaners! Following the maintenance in- structions will ensure a long service life and trouble-free operation for this qual- ity product.
- Page 6 OPERATING MANUAL 2000 GS V7.4/20-EN Excluded from the warrenty: • Wear parts. • Damage caused by improper use. • Damage caused by lack of maintenance. • Damage caused by dirt. • Damage caused by untreated compressed air. If warranty claims are made, the spray gun must be in its original condition.
- Page 7 OPERATING MANUAL 2000 GS V7.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Suction gun Compressed air Type designation: Type 2000 GS Type description: Spray gun Article number Manufacturer: 20301, 20313...
- Page 8 OPERATING MANUAL 2000 GS V7.4/20-EN 13. Technical drawing and spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer Valve bolt 80158 O-ring 1.5 x 0.75 mm...
