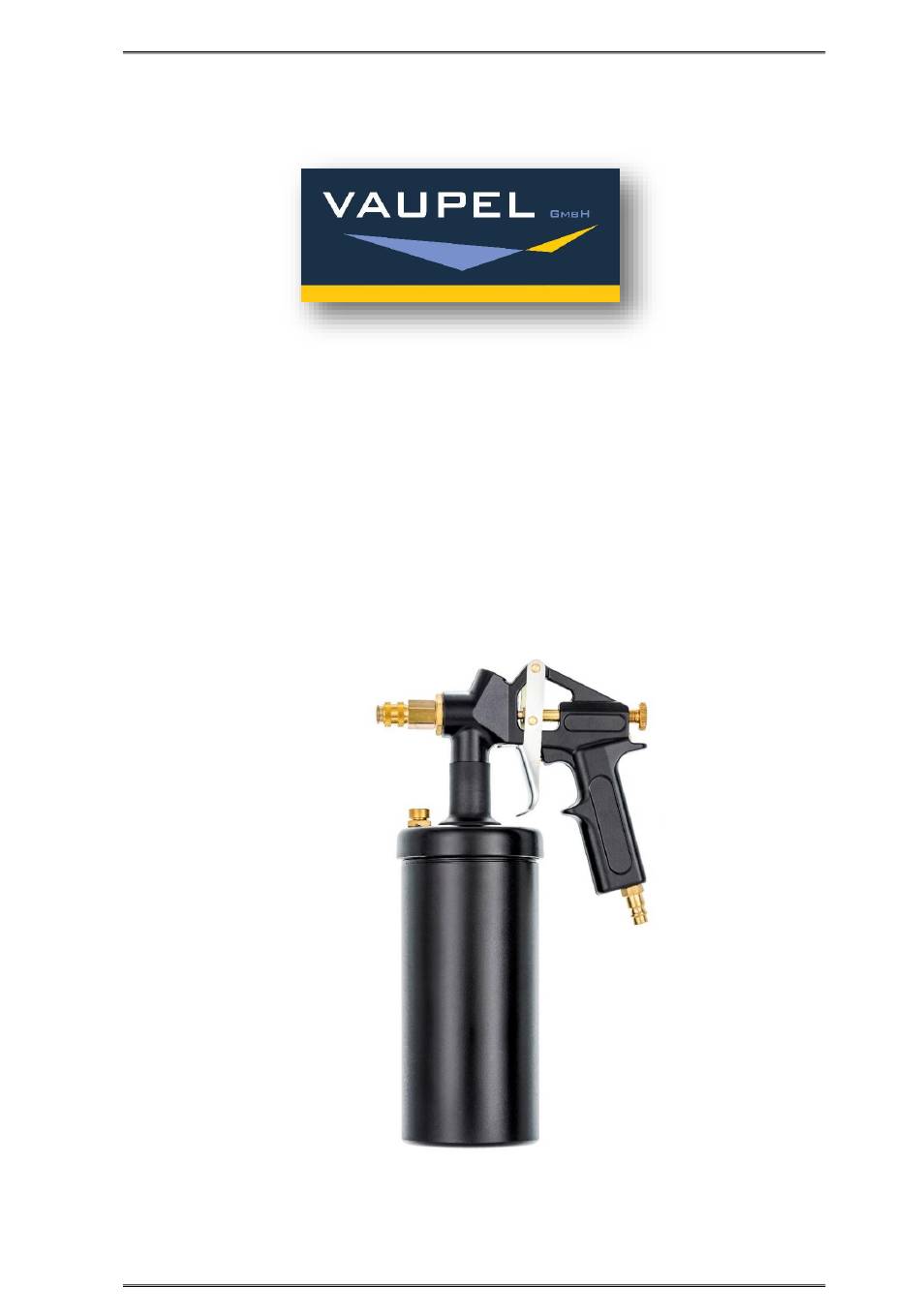

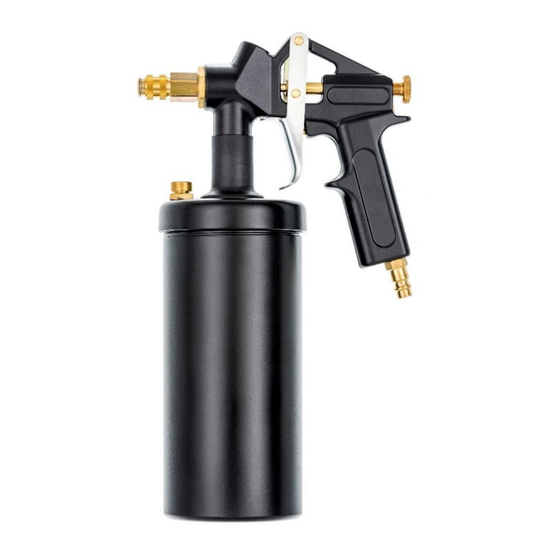

- Page 1 OPERATING MANUAL 3200 K1 V4.4/20-EN Disinfectant pressure cup gun 3200 K1 Art. no.: 32304, 32305 Page | 1...
-
Page 2: Table Of Contents
OPERATING MANUAL 3200 K1 V4.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before using the pres- sure cup gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your pressure cup gun. -
Page 3: Technical Data
It is suitable for processing liquid media in the form of loose containers. 4. Features The effectiveness of the 3200 K1 pressure cup gun is based on overpressure. For this purpose, pressure is built up in the pressure container by means of an air duct integrated in the gun body. - Page 4 OPERATING MANUAL 3200 K1 V4.4/20-EN • The operator must ensure proper operation. • Do not bring compressed air and/or medium into contact with skin or eyes. • Never direct the spray jet at animals, people or yourself. • Keep children and pets away from the operating area.
-
Page 5: Installation / End Of Work
OPERATING MANUAL 3200 K1 V4.4/20-EN 6. Installation / end of work Preparing the gun for the first start-up: Screw in the compressed air connection and tighten it firmly using a 13 mm open-end wrench or ring spanner, if necessary glue it in place. -
Page 6: Storage
OPERATING MANUAL 3200 K1 V4.4/20-EN 8. Storage The compressed air tool must be stored under the following conditions: • If residual material is present, the pressure container must be emptied • Carefully clean the pressure cup gun after each use. -
Page 7: Address
OPERATING MANUAL 3200 K1 V4.4/20-EN • Damage caused by untreated compressed air. If warranty claims are made, the pressure cup gun must be in its original condi- tion. 11. Address In case of service your sales representative is at your side or contact the follow-... -
Page 8: Ec-Declaration Of Conformity
OPERATING MANUAL 3200 K1 V4.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Pressure cup gun Type designation: Type 3200 K1 Type description: Disinfection pressure cup gun Article number Manufacturer : 32304, 32305... -
Page 9: Spare Parts List
OPERATING MANUAL 3200 K1 V4.4/20-EN 13. Spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer 83010 Nozzle needle complete 60 3104 007 Spring for nozzle needle... -
Page 10: Notices
OPERATING MANUAL 3200 K1 V4.4/20-EN 14. Notices Page | 10...
