Summary of Contents for VAUPEL 2000 KMS

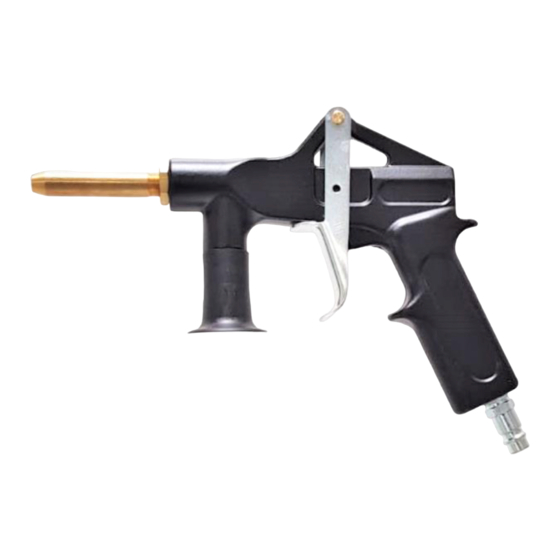

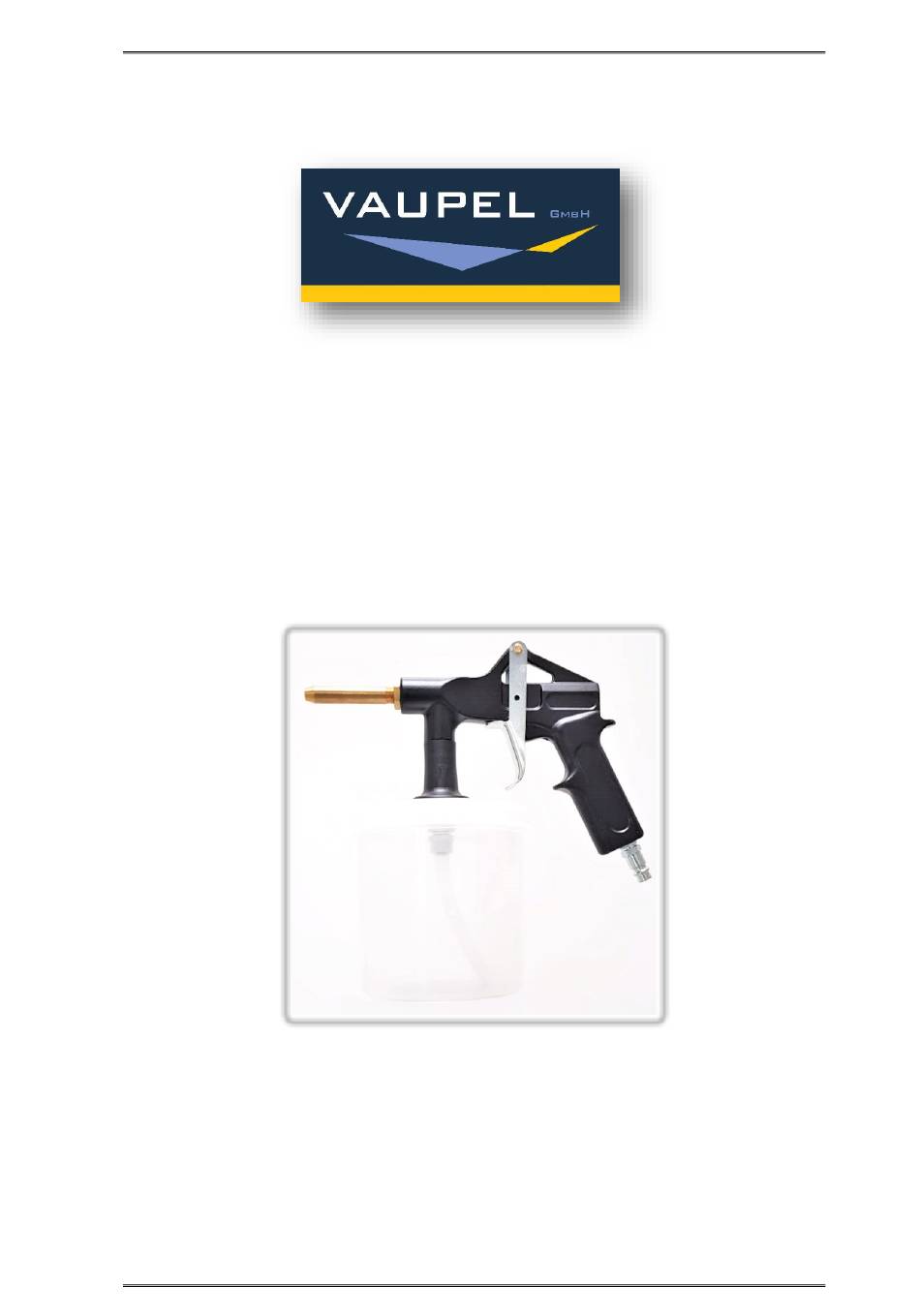

- Page 1 OPERATING MANUAL 2000 KMS V4.4/20-EN Spray gun 2000 KMS Art. no.: 20120 Page | 1...
-
Page 2: Table Of Contents
OPERATING MANUAL 2000 KMS V4.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before working with the spray gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your spray gun. -
Page 3: Technical Data
4. Features The effectiveness of the 2000 KMS spray gun is based on the Venturi effect. For this purpose, an air stream is used which accelerates when the air nozzle flows through and thus generates negative pressure in the adjoining riser pipe. The spray mass is thereby sucked in and sprayed out via the nozzle by the air flow. -
Page 4: Installation
OPERATING MANUAL 2000 KMS V4.4/20-EN The following applies to all maintenance and repair work: • It is essential to disconnect the spray gun from the com- pressed air connection. • Only use original spare parts. • The maximum working pressure must not be exceeded (see point 1 "Technical data"). -
Page 5: Storage
OPERATING MANUAL 2000 KMS V4.4/20-EN Attention: Pay attention to a proper disposal of the residues, which arise during the maintenance and care. 8. Storage The compressed air tool must be stored under the following conditions: • Remove residual material from the container. -
Page 6: 11. Address
OPERATING MANUAL 2000 KMS V4.4/20-EN • Damage caused by untreated compressed air. If warranty claims are made, the spray gun must be in its original condition. 11. Address In case of service your sales representative is at your side or contact the fol-... -
Page 7: 12. Ec-Declaration Of Conformity
OPERATING MANUAL 2000 KMS V4.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Suction gun Compressed air Type designation: Type 2000 KMS Typen description: Spray gun Article number Manufacturer: 20120... -
Page 8: 13. Spare Parts List
OPERATING MANUAL 2000 KMS V4.4/20-EN 13. Spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer Valve bolt 80158 O-ring 1.5 x 0.75 mm Valve seal 60 3103 003...
