Summary of Contents for VAUPEL 2000 HKD

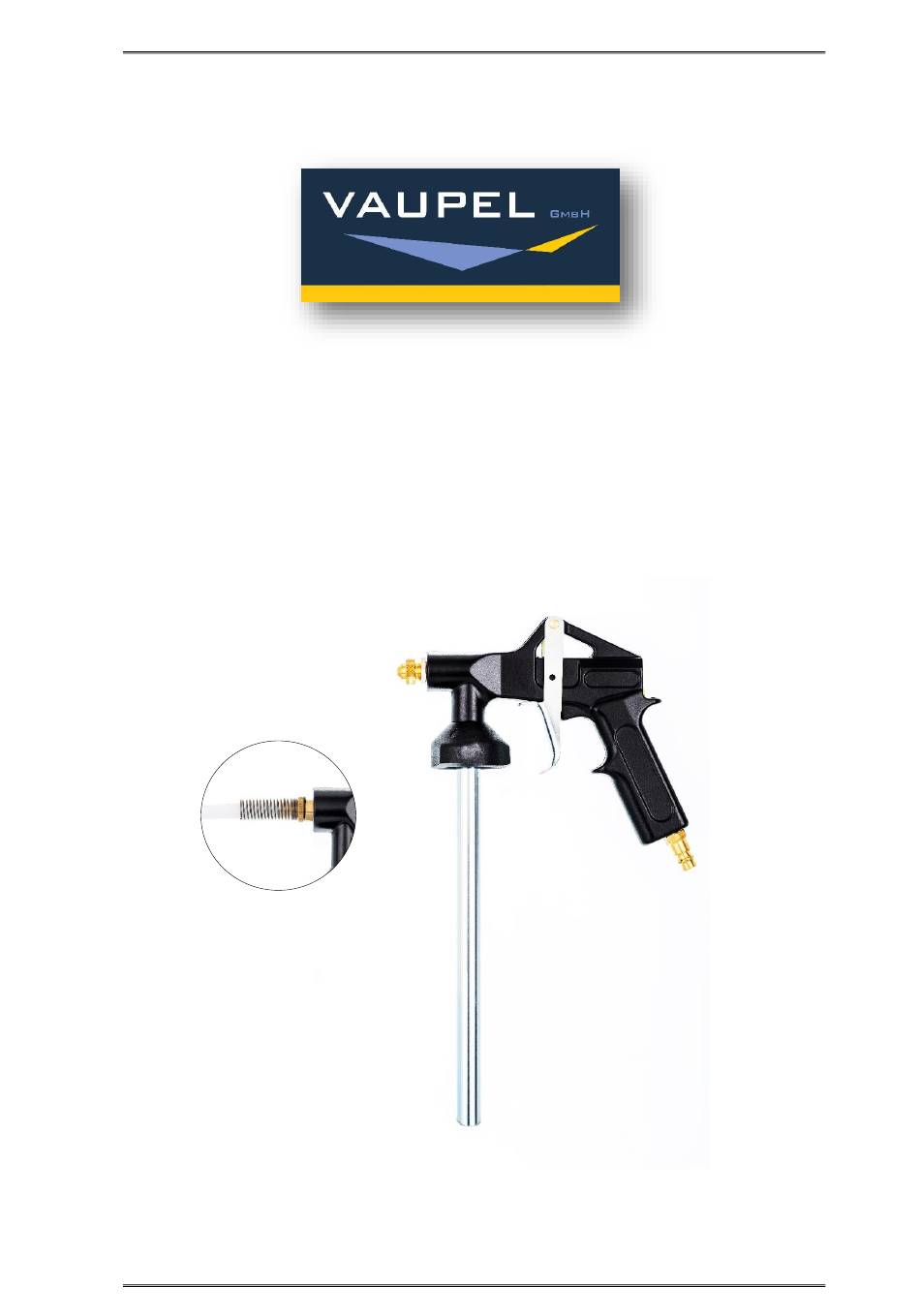

- Page 1 OPERATING MANUAL 2000 HKD V4.4/20-EN Spray gun 2000 HKD Art. no.: 20801 Page| 1...
-
Page 2: Table Of Contents
OPERATING MANUAL 2000 HKD V4.4/20-EN Thank you very much for the trust you have placed in us and our products. Please read the operating manual first before working with the spray gun. This operating and maintenance manual contains important information required for the safe and trouble-free operation of your spray gun. -
Page 3: Technical Data
1 litre cans. 4. Features The effectiveness of the 2000 HKD spray gun is based on the Venturi effect. For this purpose, an air stream is used which accelerates when the air nozzle flows through and thus generates negative pressure in the adjoining riser pipe. The spray mass is thereby sucked in and sprayed out via the nozzle by the air flow. -
Page 4: Installation
OPERATING MANUAL 2000 HKD V4.4/20-EN • Spray guns may only be operated and maintained by in- structed persons. • Repairs must only be carried out by qualified persons. The following applies to all maintenance and repair work: • It is essential to disconnect the spray gun from the compressed air connection. -
Page 5: Maintenance And Care
OPERATING MANUAL 2000 HKD V4.4/20-EN 7. Maintenance and care After each use, disconnect the device from the compressed air supply and thor- oughly clean it. We recommend benzine or commercially available terpene- based cleaners. Do not use aggressive cleaners! Following the maintenance in- structions will ensure a long service life and trouble-free operation of this qual- ity product. -
Page 6: 10. Warranty Terms
OPERATING MANUAL 2000 HKD V4.4/20-EN 10. Warranty terms The basis for all warranty claims is the complete spray gun and the proof of purchase. Damage caused by improper handling of the spray gun is not covered by the warranty. If you have any questions, please indicate the type description or the article number of the spray gun. -
Page 7: 12. Ec-Declaration Of Conformity
OPERATING MANUAL 2000 HKD V4.4/20-EN 12. EC-declaration of conformity EC-declaration of conformity In accordance with the EC Machine Directive 2006/42/EC, Type of gun: Suction gun Compressed air Type designation: Type 2000 HKD Type description: Spray gun Article number manufacturer: 20801... -
Page 8: 13. Technical Drawing And Spare Parts List
OPERATING MANUAL 2000 HKD V4.4/20-EN 13. Technical drawing and spare parts list Pos. Article no. Description Gun body 50 3909 005 Trigger 30 1102 006 Lever axis 60 3100 029 Lock washer Valve bolt 80158 O-ring 1,5 x 0,75 mm...
