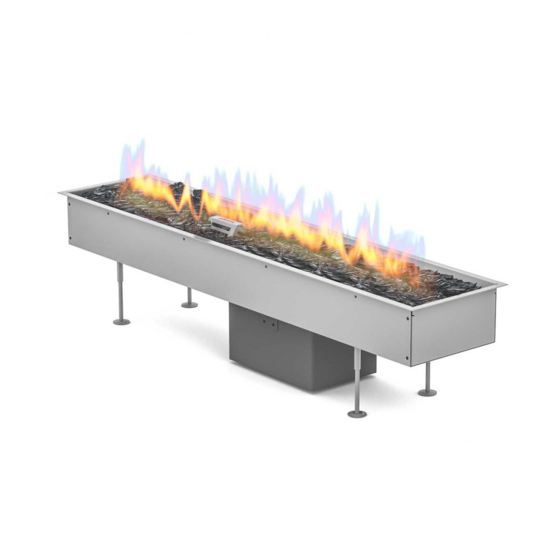

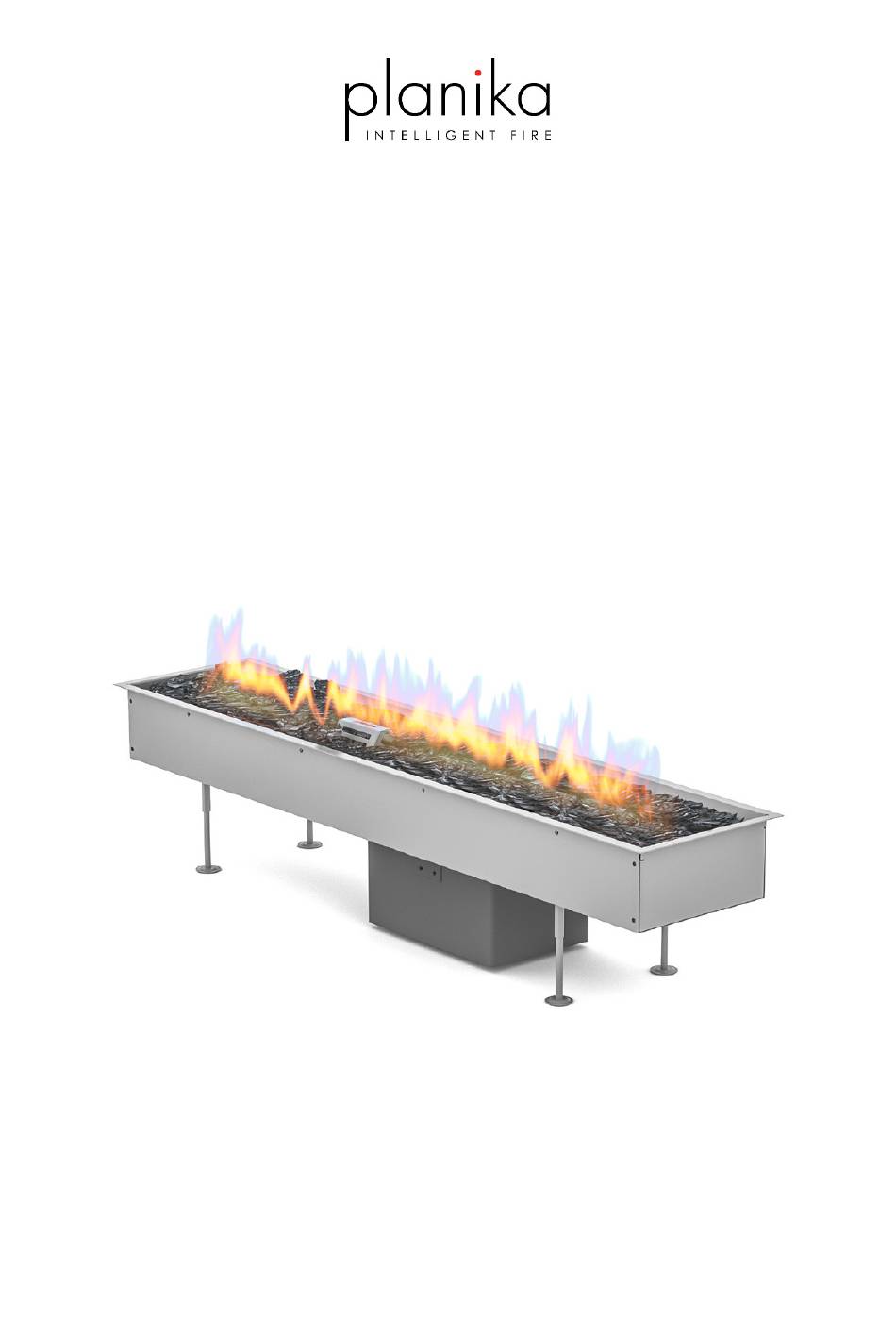

- Page 1 USER’S MANUAL GaLiO Insert #2 G20/G25 (Natural Gas) G30/G31 (Propane-Butane/Propane) Manufactured by Planika Sp. z o.o. Bydgoska 38 86-061 Brzoza Poland Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018...
-
Page 2: Table Of Contents
Checking the flame appearance ........................10 MAINTENANCE AND UPKEEP ..........................10 5.1. Testing and cleaning ............................10 5.2. Glass cleaning (if optionally installed) ......................11 TROUBLESHOOTING ..............................11 TECHNICAL SPECIFICATION ............................. 12 MANUFACTURER’S CONTACT DETAILS ........................12 Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 3: Introduction
In case of noticing any sort of gas leaks the fireplace as well as the main valve of the gas cylinder need to be • turned off. After use turn off the gas cylinder valve. • Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 4: Safety Instruction Regarding The Use Of The Gas Cylinder
The gas cylinder needs to be shut if the fireplace is not being used. • Filling the gas cylinders is to be commissioned to certified gas filling stations. • Replacement of empty bottles for full ones is to be conducted only in authorised locations. • Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 5: Operating Instructions
Make sure you have ca 12 cm cable length outside of the opening for replacing the batteries. • Connect the switch with the cable and insert the plug into the terminal. • Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 6: Replacing The Batteries
If the appliance is equipped with a 230 VAC connection, no batteries are present in the receiver or in battery box. The battery are placed in battery holder which is integrated into the control unit (Wall Switch). See Figures 2. Figure 2: Receiver battery holder Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... - Page 7 Remove the battery holder. • Replace 4 pieces of AA/LR6 Alkaline long live batteries. • Replace the battery holder and mount the Wall Switch plate. • Screw the Wall Switch plate. • Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018...
-
Page 8: Operating
Flame Height Adjustment Press and hold (large flame) button to increase flame height. • Press and hold (small flame) button to decrease flame height or to set appliance at pilot flame. • Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 9: Automatic Turn Down To Pilot
The programmed length of inactivity to activate the system is specified by the appliance manufacturer and cannot • be altered in the field. Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 10: Testing
If you encountered problems with the regulator, gas linkage, burner or regulation valves do not try to fix these • parts. Contact a sales person, an authorised service or an importer in order to acquire spare parts. To ensure the device is working efficiently use only original spare parts. Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 11: Glass Cleaning (If Optionally Installed)
A vivid/ bright orange and Holes blocked in the apparatus Unmount the burner and clean/ smoky flame of the producing the gas and air mixture. unblock the apparatus’ holes. burner. Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018... -
Page 12: Technical Specification
External ⅜” 8. MANUFACTURER’S CONTACT DETAILS Company Name: Planika Sp. z o.o. Address: Bydgoska 38 86-061 Brzoza Poland Telephone: + 48 52 364 11 60 Fax: + 48 52 364 11 70 Copyright Planika Sp. z o.o. www.planikafires.com IG0097#02 20.02.2018...
