Summary of Contents for Planika GaLiO Fire Pit Corten

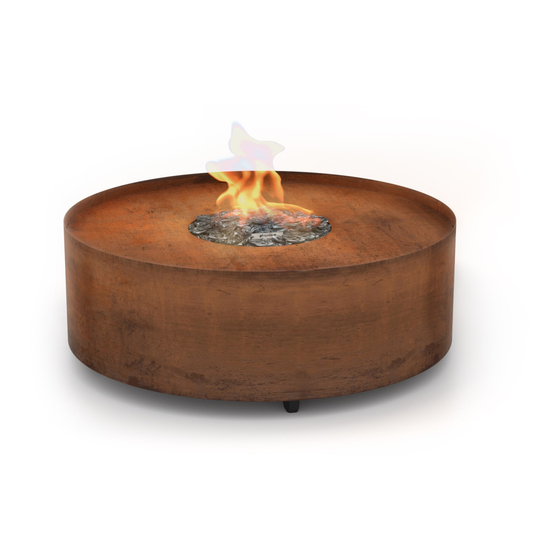

- Page 1 INSTALLATION and USER’S MANUAL GaLiO Fire Pit Corten G20/G25 (Natural Gas) G30/G31 (Propane-Butane/Propane) [mm] Manufactured by Planika Sp. z o.o. Bydgoska 38 86-061 Brzoza Poland Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020...
-
Page 2: Table Of Contents
Turning off the device ................Błąd! Nie zdefiniowano zakładki. 4.4.11. Countdown Timer ..................Błąd! Nie zdefiniowano zakładki. 4.4.12. Automatic Turn Down To Pilot ..............Błąd! Nie zdefiniowano zakładki. 4.4.13. Automatic Shut Off ................... Błąd! Nie zdefiniowano zakładki. 4.5. Touchpad................................. 21 Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020... - Page 3 Checking for gas leaks............................. 22 Checking the flame appearance........................22 MAINTENANCE AND UPKEEP ..........................23 6.1. Testing and cleaning ............................23 TROUBLESHOOTING ..............................24 TECHNICAL SPECIFICATION ............................. 25 MANUFACTURER’S CONTACT DETAILS ........................25 Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020...
-
Page 4: Introduction
• If the GaLiO Fire Pit Corten is not in use for a longer period of time (e.g. winter time), we advise you to store it inside. Copyright Planika Sp. z o.o. -
Page 5: Safety Instruction Regarding The Use Of The Gas Cylinders
• In case of heavy wind the GaLiO Fire Pit Corten fireplace needs to be immediately turned off and one needs to wait until the heavy wind passes. -
Page 6: Installation
• Place GaLiO Fire Pit Corten on a flat, paved surface outside of the building, preferably on the place of final installation. Leave sufficient space on the side of the appliance where control panel is located (minimum 1 m). -
Page 7: Gas Cylinder Montage (Only Lpg Version)
• In the case of GaLiO Fire Pit Corten powered with natural gas, to obtain the optimum image of the flame, cover the burner with a single layer of decorative stones leaving some spaces uncovered of approximately every 2-3 cm (Photo 2). -
Page 8: Installation Of The Gas Linkage
Before proceeding with the connection of the gas cylinder to the fireplace all activity regarding the correct placement and installation of the GaLiO Fire Pit Corten needs to be already performed. Place the gas linkage away from hot or sharp edges and make sure it is not twisted. -
Page 9: Connection And Replacement Of The Gas Cylinder (Lpg Version)
3.4.2. Connection and replacement of the gas cylinder (LPG version) The GaLiO Fire Pit Corten is delivered together with an elastic gas linkage which, on one end is connected to the valve of the device and on the other end to the 37mbar regulator (in the twist-on version) ready to be connected to the gas cylinder. - Page 10 Disconnection of the gas cylinder Twist-on connection Quick-release Turn off the GaLiO Fire Pit Corten – put it into the OFF position. The main and pilot burner need to be turned off. 2. Turn the bottle valve into the OFF position 2.
-
Page 11: Regulator Replacement (Lpg Version)
5 years. Allowed pressures: 30 mbar, 37 mbar (recommended), 50 mbar. Use only the redactors that comply with the EN16129 European Norm. 2. Turn off the GaLiO Fire Pit Corten – the „OFF” position. The main burner and the pilot burner need to be turned off. - Page 12 7. Attach a new linkage on the stub of regulator. 8. Move the clamp into the stub again and tighten it. WARNING! In the event of visible damage on the clamp, replace it for a new one. Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020...
-
Page 13: Operating Instructions
4. OPERATING INSTRUCTIONS The GaLiO Fire Pit Corten fireplace has a remotely control valve with a built-in ignition for the pilot flame. The flame height of the main burner may be appropriately regulated by remote control or Touch Panel. Photo 3: Hand-held transmitter and Touch Panel 4.1. -
Page 14: Replacing The Batteries
If the appliance is equipped with a 230 VAC connection, no batteries are present in the receiver. The batteries are placed in two containers (2 batteries in each container) located at the bottom of Galio Fire Pit Corten. (See Figure 5). - Page 15 Photo 7: Removing the first battery using the magnetic gripper • To remove the second battery, insert the magnetic gripper into the battery container. Photo 8: Removing the second battery from the container Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020...
- Page 16 Remember about proper polarization of the batteries. Photo 9: Placing the battery in the container • Screw the cover of the batteries container. • Repeat the same procedure for changing the batteries in the second container. Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020...
-
Page 17: Hand-Held Transmitter
3. Main gas flows once pilot ignition is confirmed. 4. Handset automatically goes into Manual Mode after main burner ignition. 5. Press and hold button to turn OFF the fire. Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020... - Page 18 The properly fired pilot flame consist of 3 smaller parts. 4.3.2. Stand-by mode (Pilot flame) „-“ Press and hold button to set appliance to pilot flame. Pilot flame remains burning (standby position). Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020...
-
Page 19: Flame Height Directly To Minimum Position
Pressing the button twice automatically decreases the flames to the LOW position NOTE: Flame goes to high fire first before going to low fire. Backlight must be on for low fire double-click operation! Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020... -
Page 20: Flame Height Directly To Maximum Position
Eco Modes. Maximum countdown time is 9 hours and 50 minutes. Low Battery Receiver With low battery power in the receiver the system shuts off the fire completely. This will not happen if the power supply is interrupted. Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020... -
Page 21: Touchpad
The programmed length of inactivity to activate the system is specified by the appliance manufacturer and cannot be altered in the field. 4.4. Touchpad Depending on customers preferences GaLiO Fire Pit Corten Remote may be additionally operated Touch panel. Additionally behind Wall Switch the battery box can be placed. Photo 10: Touch panel To Turn ON Appliance •... -
Page 22: Testing
5.2 Checking the flame appearance. • Burn the GaLiO Fire Pit Corten on max flame height and check the appearance of the flame. • The flame should be linear and evenly placed on the whole length of the main burner. -
Page 23: Maintenance And Upkeep
If you encountered problems with the regulator, gas linkage, burner or regulation valves do not try to fix these parts. Contact a sales person, an authorised service or an importer in order to acquire spare parts. To ensure the device is working efficiently use only original spare parts. Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05... -
Page 24: Troubleshooting
A vivid/ bright orange and Holes blocked in the apparatus Unmount the burner and clean/ smoky flame of the producing the gas and air mixture. unblock the apparatus’ holes. burner. Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020... -
Page 25: Technical Specification
Mertik GV 60 Mertik GV 60 Gas linkage Ø9mm Ø9mm Ø9mm External ⅜” MANUFACTURER’S CONTACT DETAILS Company Name: Planika Sp. z o.o. Address: Bydgoska 38 86-061 Brzoza Poland Telephone: + 48 52 364 11 60 Copyright Planika Sp. z o.o. www.planikafires.com IG0150#05 29.06.2020...
