Summary of Contents for Planika GaLiO Corten

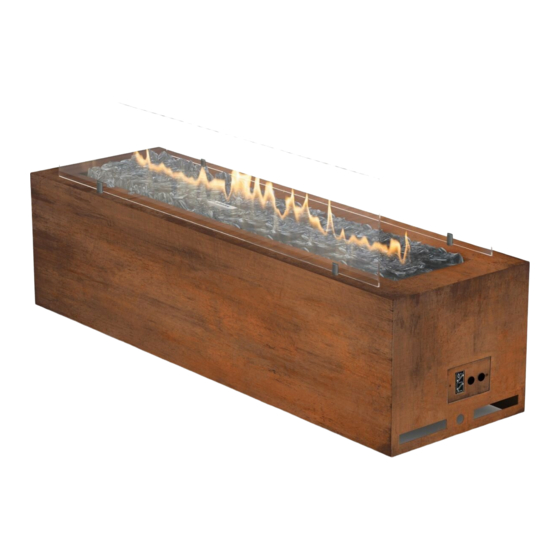

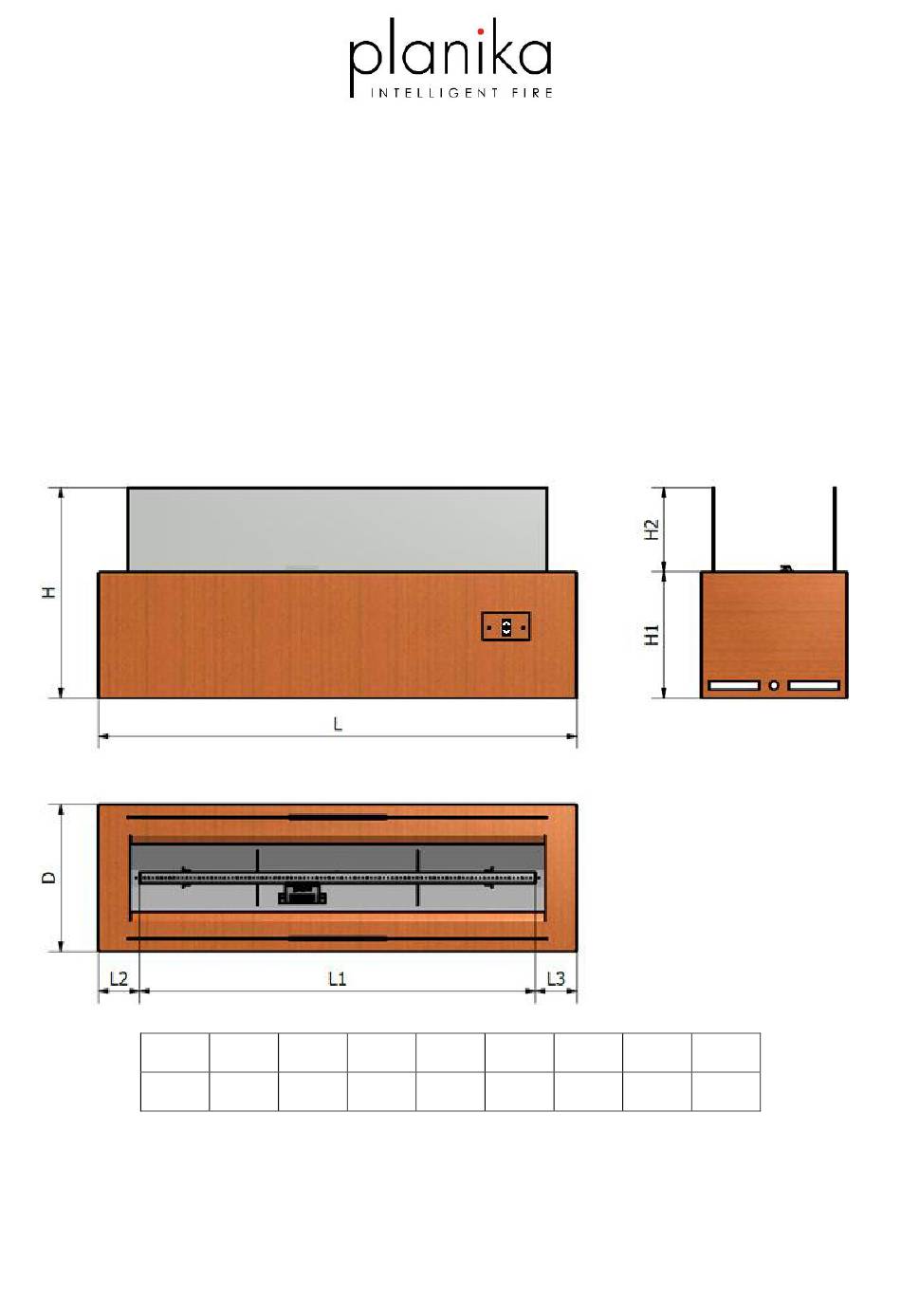

- Page 1 INSTALLATION and USER’S MANUAL GaLiO Corten (Natural Gas) (Propane-Butane/Propane) [mm] 1140 Manufactured by Planika Sp. z o.o. Bydgoska 38 86-061 Brzoza Poland Copyright Planika Sp. z o.o. www.planikafires.com IG0110#05 19.02.2019...
-
Page 2: Table Of Contents
Turning off the device ..........................25 4.4.11. Countdown Timer ............................25 4.4.12. Automatic Turn Down To Pilot ........................26 4.4.13. Automatic Shut Off ............................ 26 4.5. Touchpad ............................... 27 TESTING ................................. 28 Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... - Page 3 MAINTENANCE AND UPKEEP ..........................29 6.1. Testing and cleaning ............................29 6.2. Glass cleaning ..............................29 TROUBLESHOOTING .............................. 30 PRESSURE ADJUSTMENT ............................32 ELECTRICAL DIAGRAMS ............................38 TECHNICAL SPECIFICATION ..........................39 MANUFACTURER’S CONTACT DETAILS ......................40 Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
-
Page 4: Introduction
Bydgoska 38, 86-061 Brzoza, Poland) meet the essential requirements contained in the Directive and the Ordinance on gas appliances. Product: Gas device with decorative combustion effect for outdoor use Type: Galio Insert, Galio Corten , Galio Corten Remote, Galio Fire Pit Insert , Galio Fire Pit Insert Remote, Galio Fire Pit Corten , Galio Fire Pit Corten Remote Standard: AS/NZS 5263.0:2017... - Page 5 Children should be supervised to ensure that they do not play with the appliance. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08...
-
Page 6: Safety Instructions
• If the GaLiO Corten is not in use for a longer period of time (e.g. winter time), we advise you to protect it with a cover. Copyright Planika Sp. z o.o. -
Page 7: Safety Instruction Regarding The Use Of The Gas Cylinders
• In case of heavy wind the GaLiO Corten fireplace needs to be immediately turned off and one needs to await until the heavy wind passes. - Page 8 Carefully install the primary glass guards (See point 3.3). • In the case of GaLiO Corten powered with natural gas, to obtain the optimum image of the flame, cover the burner with a single layer of decorative stones leaving some spaces uncovered of approximately every 10 cm (Photo 2).
- Page 9 In the case of balconies, at least 20% of the total wall area shall be and remain open and unrestricted. • This appliance shall not be used or installed indoors. • The following figures are diagrammatical representations of outdoor areas Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
- Page 10 2 and 6 years of age cannot gain access to the flame when assessed in accordance with IEC Guide 117. • A guard incorporated into an appliance to comply with requirement 2 (above) must be an integral part of the appliance. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
- Page 11 The probability of contact, taking into account the arm’s reach of a person shown in below Figure and Table Age (Years) Arm’s reach in the vertical direction (see (a) of Figure measured from the floor (m) Children from 2 years to less than 6 years Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
-
Page 12: Installation Of Glass Screens
• Remove all contaminations from the glass guards which could burn out on the glass during operation of the GaLiO Corten (in particular fingerprints). • Install glass guards in the corresponding slots on the appliance as shown in Figure 2. -
Page 13: Installation Of The Gas Linkage
Before proceeding with the connection of the gas cylinder to the fireplace all activity regarding the correct placement and installation of the GaLiO Corten needs to be already performed. Place the gas linkage away from hot or sharp edges and make sure it is not twisted. -
Page 14: Operating Instructions
4. OPERATING INSTRUCTIONS 4.1. General Notes The GaLiO Corten Remote fireplace has a remotely control valve with a built-in ignition for the pilot flame. The flame height of the main burner may be appropriately regulated by remote control or Touch Panel. -
Page 15: Replacing The Batteries
If the appliance is equipped with a 230 VAC connection, no batteries are present in the receiver. The batteries are placed in two containers (2 batteries in each container) located at the bottom of Galio Fire Pit Corten. (See Photo 5). Photo 5: Receiver batteries containers Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... - Page 16 Photo 6: Cover of the batteries container • Using the magnetic gripper (delivered together with the device), remove the first battery from the container. Photo 7: Removing the first battery using the magnetic gripper Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
- Page 17 Photo 8: Removing the second battery from the container • Place the new batteries into the container. WARNING! Remember about proper polarization of the batteries. Photo 9: Placing the battery in the container Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
-
Page 18: Hand-Held Transmitter
Open the cover on the back of the transmitter. • Remove the batteries from the battery compartment. • Place two new 1.5V batteries (LR03 or AAA type) as indicated in the battery compartment. • Close the cover. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 19: Remote Control
4.4. Remote control GaLiO Corten Remote is operated by radio remote control. This comprises a hand-held transmitter and a receiver. The receiver is part of the gas control block assembly. Figure 5: Display hand-held transmitter • Electrical connections and batteries: Hand-held transmitter: 2x 1.5V AAA battery... -
Page 20: Setting Fahrenheit Or Celsius
Choosing °C results in a 24 hour clock. 4.4.2. Child Lock Turn ON: To activate press buttons simultaneously. is displayed and the handset is rendered inoperable, except for the off function. Turn OFF: To deactivate press buttons simultaneously. disappears. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 21: Setting The Time
Ignition) until two short beeps and a blinking series of lines confirms the start sequence has begun; release button(s). 3. Main gas flows once pilot ignition is confirmed. 4. Handset automatically goes into Manual Mode after main burner ignition. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 22: Gradually Decrease Flame Height
After ignition, the burner automatically sets the flames to the maximum height. Press button to lower the flames and to turn off the burner. Pressing briefly the button gradually lowers the flames to the low position. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 23: Flame Height Directly To Minimum Position
NOTE: If you turn on the burner by pressing the button, it must ignite within 10 seconds. If this does not happen, immediately close the gas tap and warn the fitter. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 24: Flame Height Directly To Maximum Position
” on the display. NOTE: Backlight must be on for high fire double-click operation! 4.4.9. Stand-by mode (Pilot flame) Press and hold button to set appliance to pilot flame. Pilot flame remains burning (standby position). Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 25: Turning Off The Device
5. To confirm press button or wait. OFF: Press button, and countdown time disappear. NOTE: At end of countdown time period, the fire shuts off. The maximum Countdown time is 9 hours and 50 minutes. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 26: Automatic Turn Down To Pilot
• The programmed length of inactivity to activate the system is specified by the appliance manufacturer and cannot be altered in the field. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 27: Touchpad
4.5. Touchpad Depending on customers preferences GaLiO Corten Remote may be additionally operated Touch panel. Photo 10: Touch panel To Turn ON Appliance ON-OFF • Press button (see Photo 10) until two short beeps confirm the start sequence has begun; release button. -
Page 28: Testing
5.2 Checking the flame appearance. • Burn the GaLiO Corten on max flame height and check the appearance of the flame. Ensure test point pressure is as per the data plate on the appliance and at the end of this manual. -
Page 29: Maintenance And Upkeep
Always dry the glass screen to avoid damp patches which could irreversibly embed into the glass. WARNING!!! Avoid leaving fingerprints on the glass. They will be embedded into the glass and you will not be able to clean them. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 30: Troubleshooting
A vivid/ bright orange and Holes blocked in the apparatus Unmount the burner and clean/ smoky flame of the producing the gas and air mixture. unblock the apparatus’ holes. burner. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... - Page 31 There are many factors that may affect the malfunction of the gas insert. To exclude a possible fault in the unit or the automatic gas control system, make sure that the fireplace is connected according to these instructions. Below table summarizes possible failures that may occur, possible causes and ways to solve them. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08...
-
Page 32: Pressure Adjustment
8. PRESSURE ADJUSTMENT Do not attempt to remove screws from the top of gas valve. Do not change any adjustments marked with tamper indicating paint. Motor knob is not to be removed. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... - Page 33 Connect a pressure manometer to the valve outlet pressure tap. Pressure tap is opened by turning the screw counterclockwise. Pressure regulator or throttle are located under the cover and can be reached by removing the plug (see figures 21 and 23). Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08...
- Page 34 Connect a pressure manometer to the valve outlet pressure tap. Pressure tap is opened by turning the screw counterclockwise. Minimum rate adjustment screw is located on the top of the metal valve body. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08...
- Page 35 You should never connect any device adapted to the combustion of liquefied gas to the gas network of natural gas and vice versa • Pressure reading Unscrew gas valve box cover using cross screwdriver. o Take off the cover. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
- Page 36 Connect the silicon hose from measure device to the measure tap. o Read the pressure value. Pressure test has to be made when fireplace is turned on with the highest flame level. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08...
- Page 37 Screw tightly the screw on the test tap o Turn on the device and check if screw is sealed using gas detector, foam or other method. o Put on gas valve cover and screw it back. Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08...
-
Page 38: Electrical Diagrams
9. ELECTRICAL DIAGRAMS Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 39: Technical Specification
10. TECHNICAL SPECIFICATION Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... -
Page 40: Manufacturer's Contact Details
11. MANUFACTURER’S CONTACT DETAILS Company Name: Planika Sp. z o.o. Address: Bydgoska 38 86-061 Brzoza Poland Telephone: + 48 52 364 11 60 Fax: + 48 52 364 11 70 Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20... - Page 41 12. DISTRIBUTOR’S CONTACT DETAILS Company Name: Planika Australia Address: 3/2 CYNAMIDE ST LAVERTON NTH, VIC 3016, AUSTRALIA Telephone: + 61 415 350 564 E-mail: planikaaustralia@planikafires.com Copyright Planika Sp. z o.o. www.planikafires.com IG0033#08 2020-03-20...
