MOUNTING INSTRUCTIONS

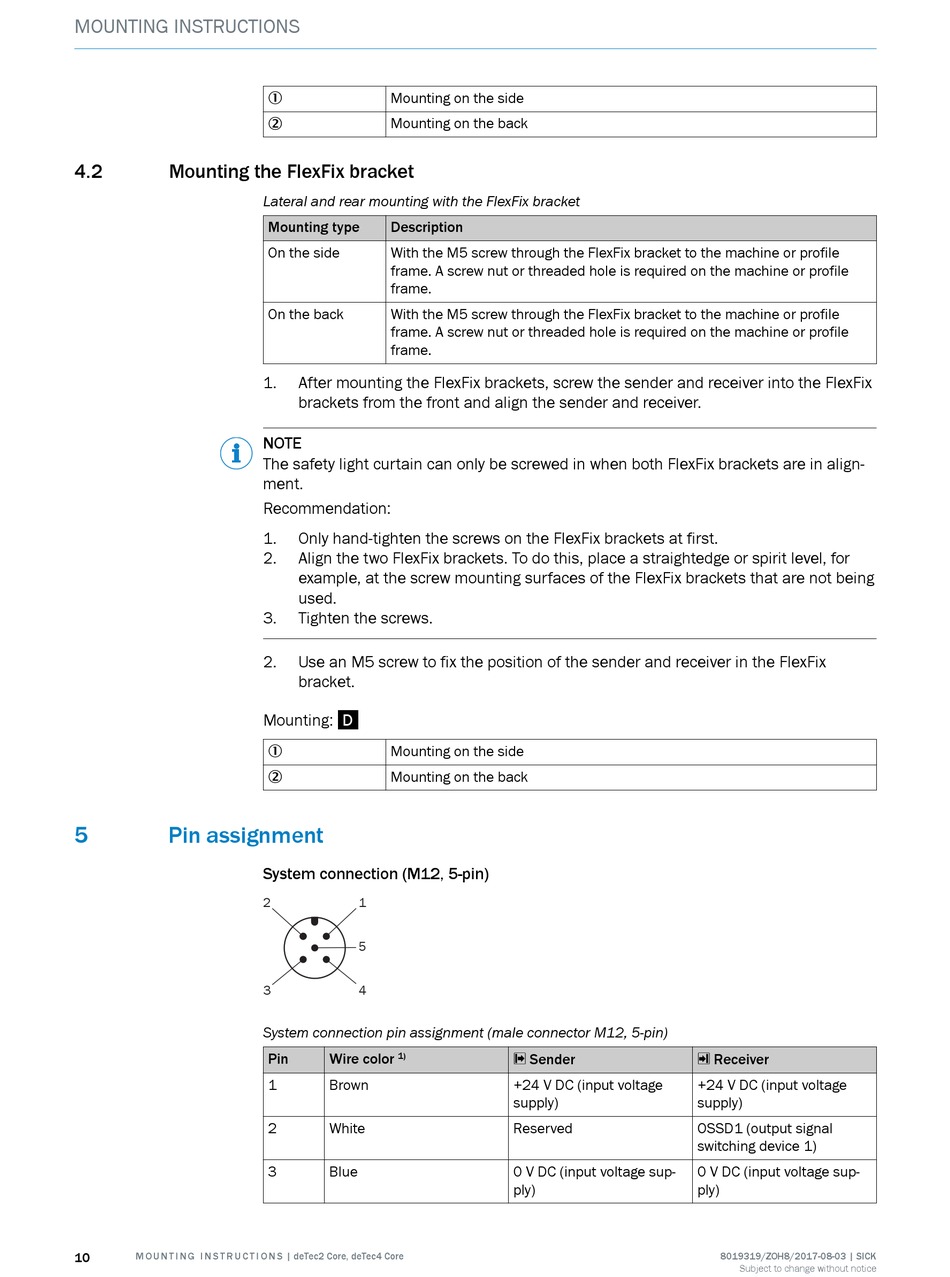

4.2 Mounting the FlexFix bracket
5

Pin assignment

10 M O U N T I N G I N S T R U C T I O N S | deTec2 Core, deTec4 Core
Mounting on the side
1
Mounting on the back
2
Lateral and rear mounting with the FlexFix bracket
Mounting type Description
On the side With the M5 screw through the FlexFix bracket to the machine or profile
frame. A screw nut or threaded hole is required on the machine or profile
frame.
On the back With the M5 screw through the FlexFix bracket to the machine or profile
frame. A screw nut or threaded hole is required on the machine or profile
frame.
1. After mounting the FlexFix brackets, screw the sender and receiver into the FlexFix
brackets from the front and align the sender and receiver.
NOTE
The safety light curtain can only be screwed in when both FlexFix brackets are in align‐
ment.
Recommendation:
1. Only hand-tighten the screws on the FlexFix brackets at first.
2. Align the two FlexFix brackets. To do this, place a straightedge or spirit level, for
example, at the screw mounting surfaces of the FlexFix brackets that are not being
used.
3. Tighten the screws.
2. Use an M5 screw to fix the position of the sender and receiver in the FlexFix
bracket.
Mounting: D
Mounting on the side
1
Mounting on the back
2
System connection (M12, 5-pin)
2 1
5
3 4
System connection pin assignment (male connector M12, 5-pin)
Pin Wire color 1)
1 Brown
2 White
3 Blue
s Sender
+24 V DC (input voltage
supply)
Reserved
0 V DC (input voltage sup‐
ply)
r Receiver
+24 V DC (input voltage
supply)
OSSD1 (output signal
switching device 1)
0 V DC (input voltage sup‐
ply)
