Locate the 18 pieces of steel tubing parts that are needed to assemble the enclosure frame.
Step13
ENG SE NO

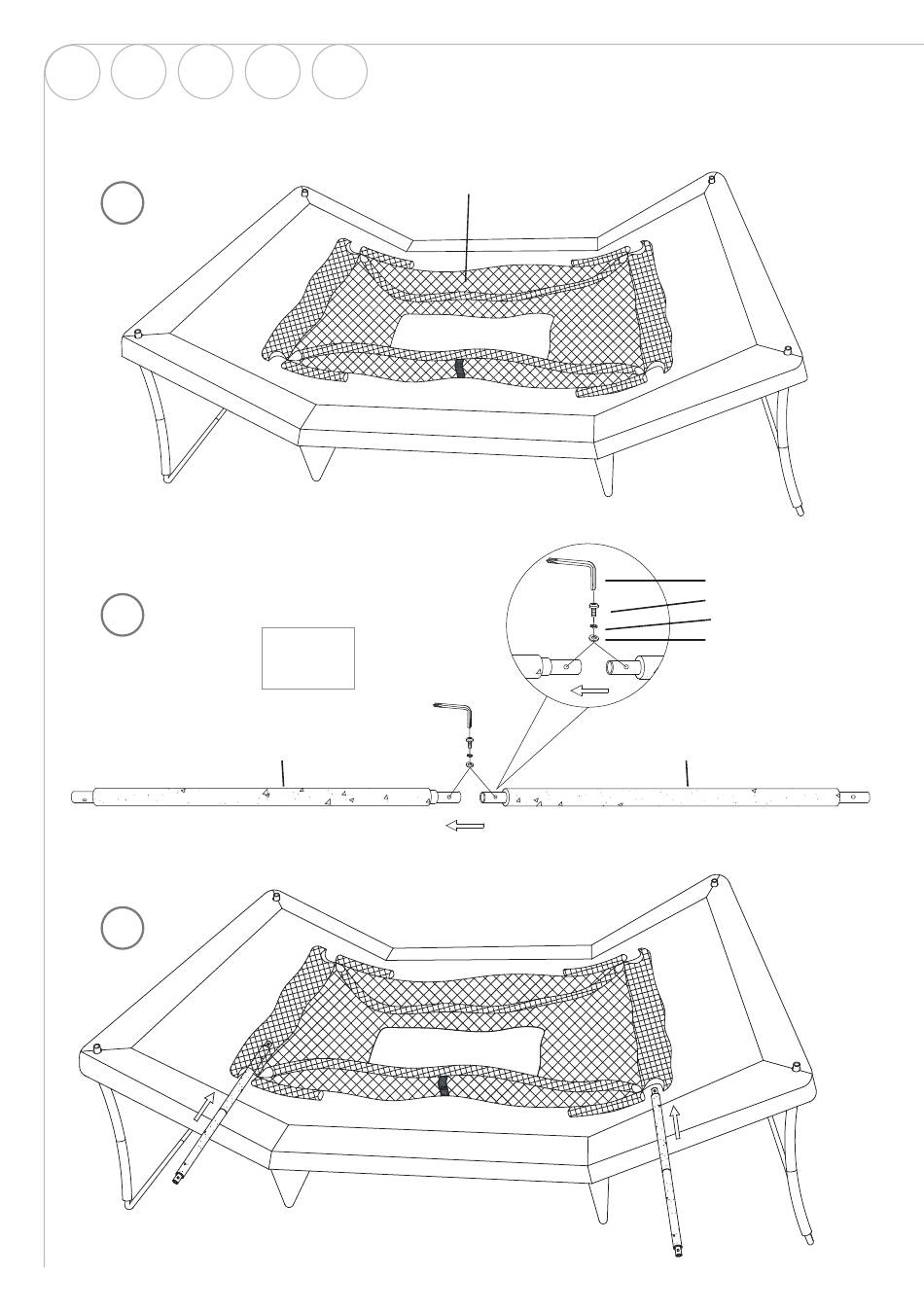

Lay the Enclosure Netting (# 29) on the trampoline as shown below in FIGURE 23.
FITTING THE SAFETY NET / MONTERING AV SÄKERHETSNÄTET / MONTERING AV
SIKKERHETSNETTET / MONTAGE DES SICHERHEITSNETZ / TURVAVERKON ASENNUS
12
Step14
Connect Short Horizontal Tube A (# 27) to Short Horizontal Tube B (# 26) using Arc Washer (# G), Spring Lock
Washer (# E), Screw (# F) and Allen Wrench (# I) as shown in FIGURE 24.
Step14
Repeat the same for the other set.
Connect Short Horizontal Tube A (# 27) to Short Horizontal Tube B (# 26) using Arc Washer (# G), Spring Lock
Washer (# E), Screw (# F) and Allen Wrench (# I) as shown in FIGURE 24.
Repeat the same for the other set.
13
Step 15
Slide the TWO sets of Short Horizontal Tube connected in previous step into the two sides of Enclosure
Netting (# 29) as shown in FIGURE 25.
Step 15
Slide the TWO sets of Short Horizontal Tube connected in previous step into the two sides of Enclosure
14
Netting (# 29) as shown in FIGURE 25.
DE FI

DISASSEMBLY OF THE TRAMPOLINE AND ENCLOSURE

DISASSEMBLY OF THE TRAMPOLINE AND ENCLOSURE
x2
# 26
# 26
# 29
