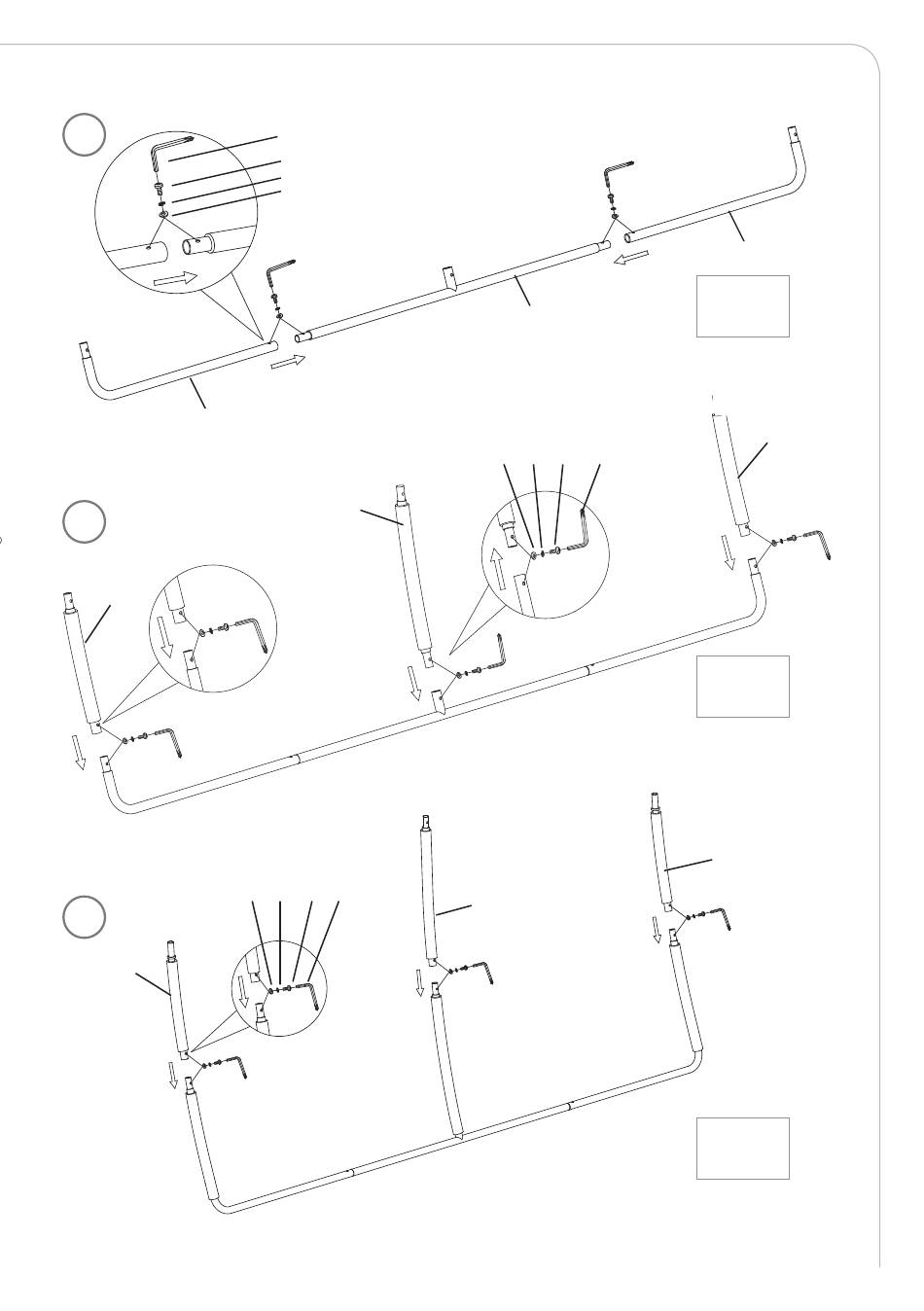

B. Connect Left L-Shape Base (# 10) and Right L-Shape Base (# 11) to the two ends of T-Shape Base (# 12)
using Arc Washer (# G), Spring Lock Washer (# E), Screw (# F) and Allen Wrench (# I) as shown in FIGURE 8.
5B
C. Connect Short Extension Tube (# 14) to the two ends and Long Extension Tube with Compressed End (#
16) to the center. Secure all parts using Arc Washer (# G), Spring Lock Washer (# E), Screw (# F) and Allen
Wrench (# I) as shown in FIGURE 9.
C. Connect Short Extension Tube (# 14) to the two ends and Long Extension Tube with Compressed End (#
16) to the center. Secure all parts using Arc Washer (# G), Spring Lock Washer (# E), Screw (# F) and Allen
Wrench (# I) as shown in FIGURE 9.
# 10
# 14
5C
# 14
D. Connect Short Extension Tube with Reinforced Ring (# 13) to the two ends and Long Extension Tube (# 15)
to the center. Secure all parts using Arc Washer (# G), Spring Lock Washer (# E), Screw (# F) and Allen
Wrench (# I) as shown in FIGURE 10. Repeat in the same manner for the other set of Side Leg Support.
D. Connect Short Extension Tube with Reinforced Ring (# 13) to the two ends and Long Extension Tube (# 15)
to the center. Secure all parts using Arc Washer (# G), Spring Lock Washer (# E), Screw (# F) and Allen
Wrench (# I) as shown in FIGURE 10. Repeat in the same manner for the other set of Side Leg Support.
5D
# 13
# G # E # F # I
# 13
# I
# F
# E
# G
# 16
# 16
# G # E # F # I
TRAMPOLINE FRAME ASSEMBLY
# G # E # F # I
# 12
TRAMPOLINE FRAME ASSEMBLY
# G # E # F # I
18
# 15
# 15
19
# 11
# 14
x2
FIGURE 8
# 14
FIGURE 9
x2
FIGURE 9
# 13
# 13
x2
FIGURE 10
FIGURE 10
