The hydraulic oil level is checked with a bayonet placed under the oil fill cap
6.3. Hydraulic oil changing
It is recommended that the oil and oil filter were changed once a year, assuming that the machine is
working 8 hours a day. In justified cases, the exchange should be carried out frequently. The oil filter
is located under the oil tank cap B (Pic.6.2).
Recommended hydraulic oil is AGIP ARNICA 46 or other with the same parameters (norm ISO L-HV
and DIN 51524 t.3 HVLP).
6.4. Hydraulic cylinders and pins lubcrication
All points where parts are in move must be properly lubricated. Below there is exepmplary
lubrication point, All these points are equipped with grease nipples.
It is required to lubricate every time before working.
A Grease nipple
6.5. Hydraulic pressure control
Warning:
Working pressure of the hydraulic system is factory-set to 160 atm. Regulatory made
only in justified cases. Changing the operating pressure is not recommended for
unexperienced users..
A

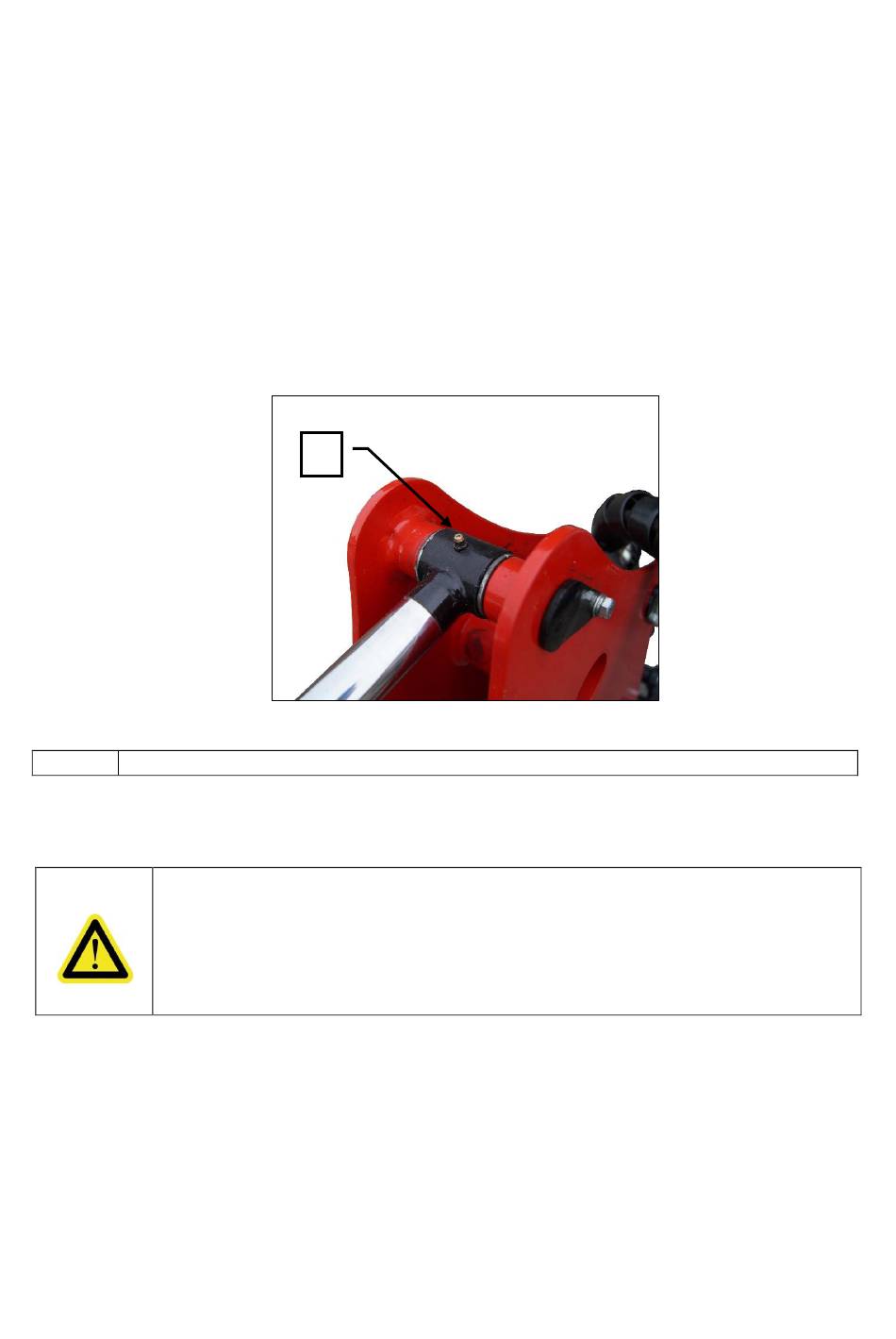

PIC.6.4 POINT OF LUBRICATION
