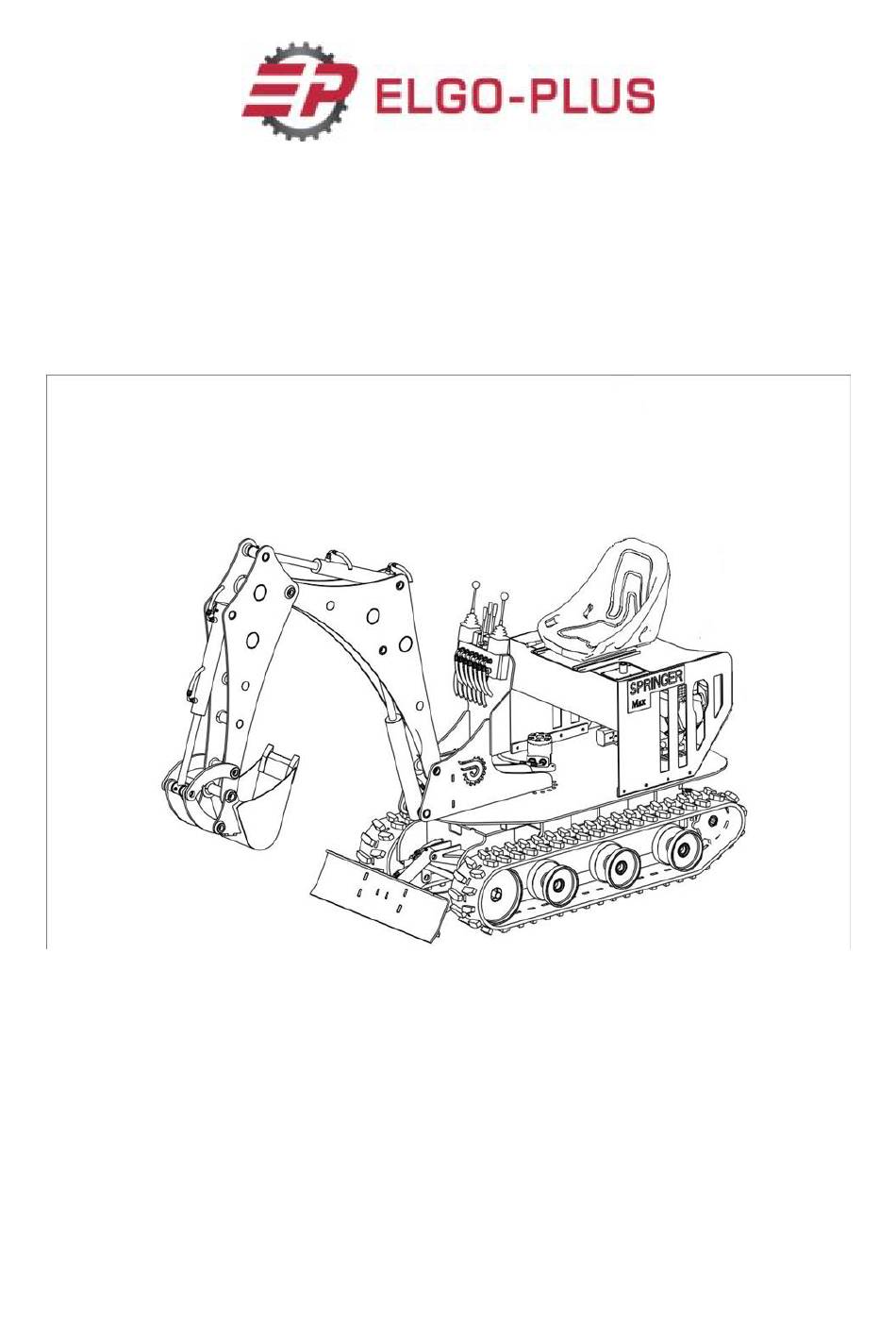

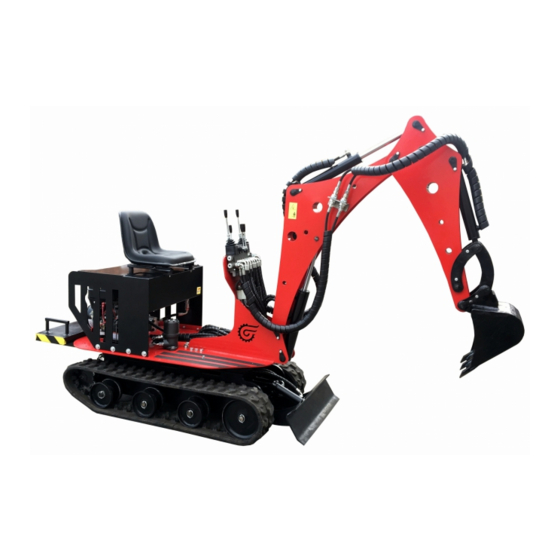

  • Page 1 Mini digger SpringerMAX-PRO INSTRUCTION...
  • Page 2 1. INTRODUCTION This instruction contains basic informations of usage and terms of use mini digger SpringerMAX-PRO. Proper maintenance and the correct way to use the machine condition the safe and reliable operation. The procedures described in this manual are the optimal methods of working with the machine and perform maintenance.
  • Page 3 Description of signs used in instruction: Warns that failure to follow instructions may result in serious injury, possibly death and/or destruction of equipment. Warns that failure to follow instructions will result in serious injury and / or equipment damage. Symbol draws attention to important informations. MACHINE FEATURES 2.1.
  • Page 4 PIC.2.1 General construction Steering levers Rubber track chassis Engine Rotatable body Seat Support Jib (Boom) Bucket – changable equipment Hydraulic pump Overweight (removable equipment) 2.2. Technical data Engine Briggs&Stratton XR2100 Engine power 13 HP Battery 12 V, 24 Ah with electrolyte Hydraulic pump CASAPPA 8cc Hydraulic tank capacity...
  • Page 5 Important: Detailed information about drive unit located in the Briggs&Stratton engine manual.
  • Page 6 PIC.2.MACHINES DIMENSIONS...
  • Page 7 2.3. Equipment Grading bucket (70 cm wide) Bucket (20cm wide) Bucket (30cm wide) Teeth ripper tool 2.4. Removable equipment Overweight (110 kg)
  • Page 8 2.5. Name plate PIC. 2.3 NAME PLATE 1.Name plate Contains information such as: - CE marking - The name and address of the manufacturer - Machines model - Serial number - Year of production - Weight of machine...

  • Page 9: Safety Instructions

    3. SAFETY INSTRUCTIONS The mini diggers user duties are knowledge of and compliance with applicable laws, therefore, included safety instructions are only recommendations. • The operator must be healthy and be at least 18 years of age. • Mini digger must be maintained in good condition. •...
  • Page 10 If someone is in the area of machine operation the operator must keep extra care. The operator can operate the machine only when you see this person, or if this person comprehensible signals to the operator, where it is located Warning: Do not sit or stand on the machine on site suitable for this operator which would prevent safe operation of the machine.
  • Page 11 Warning: When starting the engine from the battery of the other machine, do not allow the machine to touch. It could damage the electrical system of one of the machines. Warning: Do not start the machine with the starter battery, in which: •...
  • Page 12 Description of the marks on the machine Warns that before using, the operator must read the instruction manual. Warns against hot surfaces nearby engine and hydraulic pump. Symbol draws attention to take special care in time staying close to working mini digger. Symbol informs about the location where the hydraulic oil drain valve is located.
  • Page 13 4. STEERING ELEMENTS Warning: Do not start the mini digger before reading the exact location and function of all controls PIC.4.1 STEERING ELEMENTS Left track steering lever Right track steering lever Support position steering lever Arm position and rotation steering lever Jib position and bucket work steering lever Hydraulic hammer running lever...
  • Page 14 Left track steering ( A, Pic.4.1) 1 - forward – in order to move track forward, push steering lever forward (A, Pic.4.1) N - neutral – track stops (the lever returns to this position automatically) 2 - backward – in order to move track backwards push steering lever backwards (A, Pic.4.1) Right track steering ( B, Rys.4.1) 1 - forward –...
  • Page 15 Turning right Push forward the left steering lever (A, Pic.4.1), the left track starts to move forward, the machine will go forward turning right. Pull back right steering lever (B, Pic.4.1) the right track starts to move backwards, the machine will go back turning to the right.
  • Page 16 Jib position steering ( E, Pic.4.1) N - neutral position (jib and bucket stay in neutral position) 1 - jib lowering 2 - jib lifting 3 – bucket closing 4 – bucket opening Hydraulic hammer starting ( F, PIC.4.1) 1 - moving the lever to the left activates the hydraulic hammer N - neutral position - (jib and bucket stay in neutral position) 5.
  • Page 17 Warning: Do not adapting these rules may result an accident, serious injury or death. - Before starting the mini digger familiar with the contents of this manual. - Defects and damages that affect safety must be removed before use. - Do not operate the machine while under the influence of alcohol, drugs or other intoxicants. - Dress in appropriate clothing that allows for safe operation.
  • Page 18 RYS.5.1 ENGINE Rope pulling holder Fuel/ignitation lever Marking the position of the lever...
  • Page 19 PIC.5.2 KEY STARTER Marking of the direction of starting Important: For further information on the power unit, refer to the Briggs&Stratton engine manual. 5.2. Driving When driving on flat ground, set back attachments and lift it off the ground to avoid knocked out of the terrain elements.
  • Page 20 5.3. Stopping To park the machine choose flat terrain 1. Set steering levers in neutral position 2. Lower the bucket to the ground, keeping the bottom of the bucket parallel to the ground 5.4. Parking Important To park the machine choose flat terrain. If you can not avoid parking on a slope, under each of the tracks to put a block of wood and push the bucket teeth into the ground.
  • Page 21 Caution: 1. Do not use the work of inertia driving machine. 2. Do not dig, do not push the bucket teeth into the ground using the inertia of the driving machine. This can overload the back of the machine and damage the drive track.
  • Page 22 Warning: When the machine is on the platform do not pull any levers except the drive lever 6. Load the machine on a vehicle properly and ensure its secured 7. Turn off the engine. 8. After loading, put blocks under tracks and attached machine using transport belts 5.8.
  • Page 23 RYS.5.2 BUCKET CHANGING Bucket – removable equipment Hydraulic cylinder Pins with protection Hydraulic quick connect nipple...
  • Page 24 5.9.1 FITTING AND OPERATION OF HYDRAULIC HAMMER 5.9.1. The hydraulic hammer Atlas Copco SB52 is mounted in place of the bucket (pic.5.9.1) PIC.5.9.1 5.9.2. To use the hydraulic breaker, connect the hydraulic hoses and connect with quick couplings (PIC 5.9.2 - A,B).
  • Page 25 PIC 5.9.2 5.9.3 Operation of the hydraulic hammer 1. Before start using the hydraulic hammer machine need to run for around 15 minutes to let the hydraulic oil takes the right temperature. 2. Hydraulic hummer need to be lubricated before and during using. 3.
  • Page 26 Warning: Improperly executed service may be dangerous. In order to carry out the service in the right way, make sure that you have the relevant knowledge, correct information and the correct equipment. When draining / emptying avoid spilling oil. Oil spilled on the ground will harm the environment and can cause fire.
  • Page 27 Hydraulic cylinders and pins lubrication Hydraulic oil replenishment Replenishment and changing of engine oil 6.2. Hydraulic oil replenishment Take care of proper hydraulic oil level. The tank is located under the driver's seat and has got 24 liters of hydraulic oil. PIC.6.2 HYDRAULIC OIL REPLENISHMENT Hydraulic oil filler cap Oil tank cap...
  • Page 28 The hydraulic oil level is checked with a bayonet placed under the oil fill cap 6.3. Hydraulic oil changing It is recommended that the oil and oil filter were changed once a year, assuming that the machine is working 8 hours a day. In justified cases, the exchange should be carried out frequently. The oil filter is located under the oil tank cap B (Pic.6.2).
  • Page 29 PIC.6.5 HYDRAULIC PRESSURE CONTROL Hydraulic pressure controler 6.6. Tracks tension regulation Warning: Do not use the mini digger when her tracks are too much or too little strained. Doing so may destroy them. Tracks tension should be checked every time before working In case of too low tracks tension it is necessary to adjust it by using the adjustment screws on both sides of the mini digger.
  • Page 30 RYS.6.6 TRACKS TENSION REGULATION Bracket screws Regulation screws 6.7. Brass pins changing In the case of use of the brass pins, replace them with new ones. Knock out the pins out of the nest and embed new. PIC.6.7 BRASS PINS Brass pins...
  • Page 31 Warning: When knockig out the brass pins, there can break the metal debris and injured eyes. Always wear goggles, helmet and gloves 6.8. Hydraulic oli tank valve The hydraulic oil tank is equipped with shut-off valve. The valve is used when operating the hydraulic pump and preventing oil spills after disconnecting the hydraulic hose.
  • Page 32 Warning: Batteries contains substances hazardous to health and the environment. For this reason, retractable batteries must be disposed of in accordance with applicable regulations. Battery is mounted next to gasoline engine, under the operators seat. The replacement should begin with the disconnection of the black (-) mass lead. Then disconnect the positive (+) cable in red.
  • Page 33 6.10. Machine maintenance table Regular maintenance Each time After first 5 3 months 6 months hours of or 50 or 100 months using hours hours or 300 hours Hydraulic oil Check level X(1) Change Engine oil Check level Change Pins Check Screws and Check/...
  • Page 34 6.11. Pressure throttling Warning: Throttling the pressure in the hydraulic system is set at the factory. Adjustment should be made only in justified cases. The pressure in the hydraulic system can be throttled by a throttle valve (at hydraulic distributor). PIC.6.9 THROTTLING VALVE Throttling valve Loosen the lock nut...

  • Page 35: Spare Parts

    7. SPARE PARTS When ordering spare parts, always state the information on the name plate of the machine or enter the symbol of the part.

  • Page 36: Warranty Card

    10. In matters not covered by these warranty conditions apply to the Civil Code. 11. The buyer pays the transportation cost for the mini digger to and from the service point or cover the travel cost for a service technician to the service point. Mini digger SpringerMAX-PRO Purchase date:………………………………….. Serial number:…………………………….
  • Page 37 A person domiciled or resident in the community authorized to compile the technical file: Owner Andrzej Zieliński The undersigned hereby declares that the product:: TRADE MARK: MINI DIGGER SpringerMAX-PRO FUNCTION: MULTIFUNCTIONAL MINI DIGGER TYPE/MODEL: SpringerMAX-PRO complies with the following European directives: •...
