ELGO-PLUS SPRINGER MAX-EB Instruction Manual

Mini digger
Hide thumbs

Advertisement

Quick Links

Download this manual
MINI DIGGER
SPRINGER MAX-EB
INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPRINGER MAX-EB and is the answer not in the manual?

Questions and answers

Related Manuals for ELGO-PLUS SPRINGER MAX-EB

Summary of Contents for ELGO-PLUS SPRINGER MAX-EB

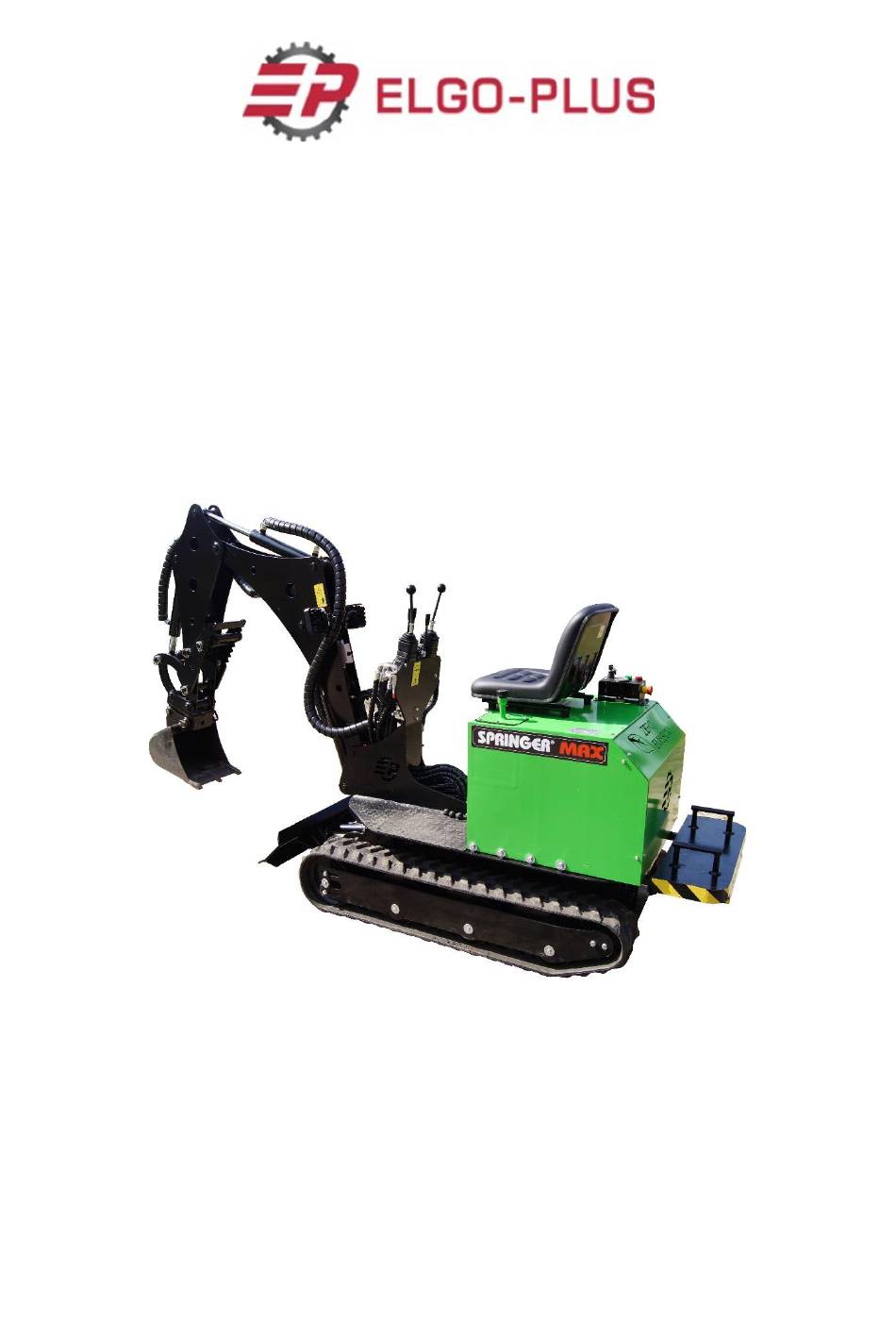

  • Page 1 MINI DIGGER SPRINGER MAX-EB INSTRUCTION...
  • Page 2 This manual must be easily accessible and always kept near the mini excavator! ELGO-PLUS reserves the right to introduce changes in technical data, construction, instructions, and expansion or modernization of the product without prior notice. ELGO-PLUS is not obliged to introduce these changes to previously manufactured machines.

  • Page 3: Machine Features

    and/or destruction of equipment. Warns that failure to follow instructions will result in serious injury and / or equipment damage. Symbol draws attention to important informations. 2. MACHINE FEATURES 2.1. General description The machine is intended for earthworks performed under normal daytime conditions. If the machine is to be used for other purposes or is to be operated in a potentially hazardous environment, special safety regulations must be followed and the machine itself should be equipped according to the working conditions.
  • Page 4 RYS.2.1 GENERAL CONSTRUCTION Steering levers Undercarriage Electric engine, battery and battery charger (under cover) Rotatable body Seat Support blade Boom Bucket Hydraulic pump Counter weight (110 kg) 2.2. Technical data Benevelli 51J13207532E8S50000 Engine Engine power 3.0 kW Danfoss Turolla shhark® 6cc Hydraulic pump Battery Li-Ion 5 kWh Briggs&Stratton Vanguard...
  • Page 5 Max digging depth 1,6 m Noise Not more than 85 dB(A) Important: Detailed information about the machine's components can be found in their operating manuals. RYS.2.DIMENSION 2.3. Standard equipment Grading bucket 70 cm wide...

  • Page 6: Safety Instructions

    20 cm wide bucket 30 cm wide bucket Ripper tool 2.4. Additional equipment Counter weight 110 kg 2.5. Name plate 1.Name plate Contains information such as: - CE marking - The name and address of the manufacturer - Machines model - Serial number - Year of production - Weight of machine...
  • Page 7 • Inspections and repairs may only be performed after the machine is turned off • • • It is prohibited to make arbitrary modifications to the machine without the manufacturer's consent • • It is forbidden to operate the machine in explosive atmospheres or in closed rooms without adequate ventilation •...
  • Page 8 Warning: Do not sit or stand on the machine in a place not intended for this purpose, which would prevent the operator from safely operating the machine. Damage It is the user's responsibility to report any damage or wear that could impair operational safety. During inspections, maintenance and repairs, only a person with appropriate knowledge of operating the machine and the control elements is allowed to be in the operator's seat.
  • Page 9 machines to touch each other. It could damage the electrical system of one of the machines. Warning: Do not use the starter battery to start a machine in which: • the battery is frozen, • the maintenance-free battery status indicator point is yellow or light, •...
  • Page 10 Symbol informs about the location where the hydraulic oil drain valve is located.. Warns that before using, the operator must read the instruction manual. 4. URUCHAMIANIE I WYŁĄCZANIE MINIKOPARKI Warning: Electrical circuits contain voltages that are dangerous to health and life, which may cause shock or death.
  • Page 11 RYS.4.1 CONTROL PANEL Ignition Key Emergency shut down button Operation light - green Red light – warns about low battery status Battery capacity and hours meter RYS.4.2 Steering levers...
  • Page 12 Left track steering lever Right track steering lever Support position steering lever Arm position and rotation steering lever Jib position and bucket work steering lever 4.2 Turning on Information: Each time before starting work, check the battery charge status. The battery charge status is displayed on the mini excavator's display.
  • Page 13 4.4 Battery charging Warning: When charging from the 230 V network, it is not recommended to use the machine in any other way than described below. Warning: While charging, the mini excavator must be protected against snow, rain and other factors that may cause excessive humidity. Charging should take place under cover.
  • Page 14 „CHARGE” CONNECT 230V LED on LED pulse DISCONNECT 230V CHARGING COMPLETE → LED on RYS.4.3 Connecting 230V chargning 4.5 Emergencu shut down Warning: Emergency stop should be used whenever the machine may cause injury to persons or damage to nearby equipment. Warning: In the event of an emergency shutdown, do not start the mini excavator until the cause of the stop has been eliminated and the machine is safe to operate.
  • Page 15 4.5.1 Emergency stop button The emergency stop button is located on the mini excavator's control panel. When pressed, the power supply to the electrical circuits is immediately cut off, which results in the complete shutdown of the machine. Restart after pressing the emergency stop button The restart procedure is described below: 1.
  • Page 16 DOWN RYS.4.10 Turnig off pkt 3-4 4.7 Problem solving Below are the problems that may occur during operation and their solutions. If the procedure described below turns out to be ineffective or other problems occur on the machine, please contact the manufacturer.
  • Page 17 5.1 Steering elements Left track steering ( A, Pic.4.1) 1 - forward – in order to move track forward, push steering lever forward (A, Pic.4.1) N - neutral – track stops (the lever returns to this position automatically) 2 - backward – in order to move track backwards push steering lever backwards (A, Pic.4.1) Right track steering ( B, Rys.4.1) 1 - forward –...
  • Page 18 Caution! It is forbidden turning in opposite movement of the two tracks, doing so may cause damage to the mini digger. Support position steering ( C, Pic.4.1) 1 – support lowering N – neutral position – support stops (the lever returns to that position automatically) 2 –...
  • Page 19 Jib position steering ( E, Pic.4.1) N - neutral position (jib and bucket stay in neutral position) 1 - jib lowering 2 - jib lifting 3 – bucket closing 4 – bucket opening 6. USAGE 6.1. Before working Warning: Failure to follow the rules below may result in an accident, serious bodily injury or death.
  • Page 20 - Check for damaged or loose parts that could cause damage. - Check if there is hydraulic oil in the tank. - Before moving away, check that there are no other people near the machine. - When it is very cold, do not use the machine for heavy work immediately after starting. - Check the battery attachment.
  • Page 21 RYS.6.2 light switch 6.4. Driving When driving on flat ground, set back attachments and lift it off the ground to avoid knocked out of the terrain elements. When driving on uneven terrain should move the machine so as not tilted to one side more than 10⁰. Riding uphill If the tracks are sliding on the slope, push the bucket into the ground and pull the arm backwards to facilitate the uphill drive.
  • Page 22 Important Choose a flat area to park the machine. If parking on a slope cannot be avoided, place a wooden block under each track and press the bucket teeth into the ground. Pay attention to the prevailing weather conditions and take the necessary steps to prevent the machine from freezing to the ground, sinking into it or suffering other consequences.
  • Page 23 shortening of the life of the machine. Leaving to work as much as possible backlash. 4. Do not use the work of inertia of the falling bucket. 5. Do not dig by dropping the boom or bucket to use as a pick. Digging combined with stroke or continuous hitting can damage the operating system.
  • Page 24 6.Load the machine onto the vehicle correctly and ensure that it is securely fastened. 7.Turn off the mini excavator. 8. After loading, place blocks under each track and secure the machine with tie rods appropriate to the load so that it cannot move. 1.4.
  • Page 25 RYS.5.2 Equipment chainging Removeable equipment Hydraulic cylinder Pins Hydraulic quick couplings 2. SERVICE Warning: A person who does not apply to the safety instructions and who ignore included warnings, must be sure that its approach work is safe. 1.1. Service position Warning: If you need to start working on the machine before it cools, watch for hot liquids and bands machine, which can cause burns.
  • Page 26 1. Set the machine on a flat, sturdy and level ground. 2. Working system should rest on the ground. 3. Allow machine to cool Warning: Improperly executed service may be dangerous. In order to carry out the service in the right way, make sure that you have the relevant knowledge, correct information and the correct equipment.
  • Page 27 PINS GREASING HYDRAULIC OIL FILLING 2.1. Hydraulic Oil filling Make sure the hydraulic oil level is correct. The tank used is located under the driver's seat and holds approximately 24 liters of oil. RYS.6.2 HYDRAULIC OIL FILLING OIL TANK CAP The hydraulic oil level is checked using the dipstick located under the oil filler cap.
  • Page 28 RYS.6.4 Greasing Grease nipple 1.1. Hydraulic pressure control Warning: Working pressure of the hydraulic system is factory-set to 160 atm. Regulatory made only in justified cases. Changing the operating pressure is not recommended for unexperienced users.. PIC.6.5 HYDRAULIC PRESSURE CONTROL Hydraulic pressure controler 1.2.
  • Page 29 In case of too low tracks tension it is necessary to adjust it by using the adjustment screws on both sides of the mini digger. To tension rubber tracks, first loosen support screws on sides of bracket (A), than regulate the tension by regulation screws (B). RYS.6.6 TRACKS TENSION REGULATION Bracket screws Regulation screws...
  • Page 30 PIC.6.7 BRASS PINS Brass pins Warning: When knockig out the brass pins, there can break the metal debris and injured eyes. Always wear goggles, helmet and gloves 1.4. Hydraulic oli tank valve The hydraulic oil tank is equipped with shut-off valve. The valve is used when operating the hydraulic pump and preventing oil spills after disconnecting the hydraulic hose.
  • Page 31 PIC.6.8 TANK VALVE Hydraulic oil tank valve Warning : During operation, the valve should always be in the open position, otherwise it may cause damage to the hydraulic pump. The valve should be closed only during the work-related hydraulic pump and while transportng the machine...
  • Page 32 1.1. Machine maintenance table Regular maintenance Each time After first 5 3 months 6 months hours of or 50 or 100 months using hours hours or 300 hours Hydraulic oil Check level X(1) Change Engine oil Check level Change Pins Check Screws and Check/...
  • Page 33 Important: For detailed information on fuel quality, lubrication instructions and servicing of the power unit, refer to the Briggs&Stratton engine manual. 1.1. Pressure throttling Warning: Throttling the pressure in the hydraulic system is set at the factory. Adjustment should be made only in justified cases. The pressure in the hydraulic system can be throttled by a throttle valve (at hydraulic distributor).

  • Page 34: Spare Parts

    PIC.6.9 THROTTLING VALVE Throttling valve Loosen the lock nut To throttle the pressure, turn the valve to the right 3. SPARE PARTS When ordering spare parts, please provide the information contained on the machine's nameplate or the symbol of the given part.

  • Page 35: Warranty Card

    10. In matters not covered by these warranty conditions apply to the Civil Code. 11. The buyer pays the transportation cost for the mini digger to and from the service point or cover the travel cost for a service technician to the service point. Mini digger SPRINGER MAX-EB Purchase date:………………………………….. Serial number:…………………………….
  • Page 36 A person domiciled or resident in the community authorized to compile the technical file: Owner Andrzej Zieliński The undersigned hereby declares that the product:: TRADE MARK: MINI DIGGER SPRINGER MAX-EB FUNCTION: MULTIFUNCTIONAL MINI DIGGER TYPE/MODEL: SPRINGER MAX-EB complies with the following European directives: •...
