Bugaboo child restraint in
collaboration with Nuna

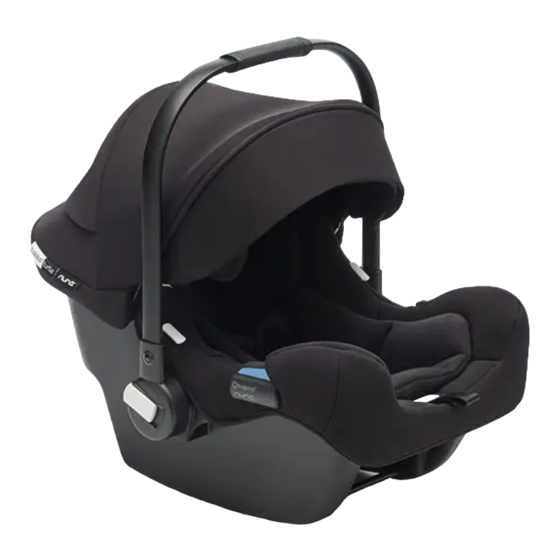

Bugaboo Turtle by Nuna
INSTRUCTIONS FOR INSTALLATION
BUGABOO SEAT AND BASE ITEM NUMBER 84701ZW01
/ BASE ONLY 84702ZW01
NUNA SEAT AND BASE MODEL NUMBER CF05703
/ BASE ONLY IF05701
IMPORTANT: KEEP THIS INSTRUCTION BOOKLET IN THE
PLACE PROVIDED ON THE CHILD RESTRAINT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bugaboo Turtle and is the answer not in the manual?

Questions and answers

Related Manuals for Nuna Bugaboo Turtle

Summary of Contents for Nuna Bugaboo Turtle

  • Page 1 Bugaboo Turtle by Nuna INSTRUCTIONS FOR INSTALLATION BUGABOO SEAT AND BASE ITEM NUMBER 84701ZW01 / BASE ONLY 84702ZW01 NUNA SEAT AND BASE MODEL NUMBER CF05703 / BASE ONLY IF05701 IMPORTANT: KEEP THIS INSTRUCTION BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT...
  • Page 2 Bugaboo when used with additional Bugaboo adapters for designated bugaboo strollers, compatible with: bugaboo fox bugaboo cameleon bugaboo bee bugaboo donkey bugaboo lynx Bugaboo turtle by Nuna is based on the Nuna KLIK plus model...

  • Page 3: Table Of Contents

    Contents IMPORTANT: Before installation and use of this child restraint Quick Reference check that it is suitable for the size of your child. WARNINGS See pages 4 & 7 of the USE Instructions. Additional Warnings Features Installation - General Installation - Vehicle Belts IMPORTANT: This is a rear facing child restraint.
  • Page 4 Carry Handle Tether Strap must always be locked must always be used when the into position. restraint is installed in a vehicle. Store end of tether in bag. See page 20 - 22 Secure Latching restraint must be securely latched into base.

  • Page 5: Warnings

    ADDITIONAL WARNINGS ADDITIONAL WARNINGS Only install child restraint TO BE USED WITH A LAP-SASH/LAP ONLY SEATBELT in a forward facing vehicle OR ISOFIX LOW ANCHORAGES IN THE BACK OF MOST seat. Never install in a seat CARS WITH FORWARD FACING SEATS. that faces the rear or the This restraint is 700 mm long, 440 mm wide and 500 mm side of the vehicle.

  • Page 6: Features

    Features Installation - General Where to install the child 1 Tether Strap 7 Instruction Manual restraint? Storage 2 Child Restraint Release Only install the child re- Lever 8 Recline Foot straint in a forward facing 3 Tether Strap Anchorage 9 ISOFIX connector vehicle seat.

  • Page 7: Installation - Vehicle Belts

    Installation - Vehicle Belts 1 Position base on a forward facing vehicle seat. Use the Belt Path labels as a guide for Adjust base so bubble correct belt placement. REARWARD-FACING is between the black BELT PATH patches. 2 Use recline adjustment, if needed, to achieve correct angle for installation.

  • Page 8: Checklist - Vehicle Belt Installation

    Installation - Vehicle Belts 5. Hold vehicle belts tight and engage the belt 1. Place the base on the lockoff. vehicle seat and pass BELTS MUST BE the vehicle belt through TIGHT. the openings in the base LOOSE BELTS ARE labeled ‘BELT PATH’...

  • Page 9: Installation - Isofix Compatible Connectors

    Installation - ISOFIX Some vehicles sourced from LATCH the USA may be marked Compatible Connectors LATCH. Some vehicles are fitted ISOFIX and LATCH low with ISOFIX low anchorage anchorage points are the points. same. These are are found at the bottom of the back seat WARNING backrest.
  • Page 10 Installation - ISOFIX 4 Indicator will show green when connected. Compatible Connector Guides Before fitting see general installation instructions on pages 7 & 8 TO FIT: 5 Pull the base back to en- 1 Press the release button sure both lower connec- under the front of the tors are engaged.

  • Page 11: Checklist - Isofix Installation

    Checklist - ISOFIX Installation ISOFIX Compatible Connector Guides 1 Some models come with guides for the ISOFIX compatible connectors. 1 Check the bubble level indicator to see These are for use in cars if recline level is still where the anchorage bar correct.

  • Page 12: Fitting Restraint To Base

    Fitting Restraint to Base WARNINGS – Top Tether To Install THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE POINT IN THE CAR. First make sure there is "CLICK" REFER TO CAR OWNERS HANDBOOK FOR LOCATION nothing in or on the base OF ANCHORAGE POINTS.
  • Page 13 Tether Strap - Use Tether Strap - Use Always use the tether strap. When the restraint is in a Connect the tether strap to the built-in anchorage fitting vehicle always fit the tether in the vehicle, or if there is not one available, install the into the guide at the back.
  • Page 14 Tether Strap - Use Tether Anchorage - Installation Most cars have several Do not adjust so tight that The threaded hole for it lifts the child restraint off threaded holes to fit the the anchorage bolt the vehicle seat. tether anchorage to. may have a plastic cover over it Refer to the vehicle owners...
  • Page 15 Tether Anchorage - Installation Tether Anchorage - Installation If the car is fitted with a Attachment If the car is not fitted with Attachment Bolt Bolt child restraint anchorage a child restraint anchorage Anchor point: point: Lock Fitting Locate the anchorage point For sedans only - drill a 9 Washer behind the rear seating...

  • Page 16: Use With Strollers

    Use with Strollers Cleaning and Maintenance Seat Cover This Bugaboo child restraint can attach to Bugaboo strollers ™ using adapters. Instructions are included with the adapters, Use mild soap or upholstery shampoo. which are sold separately. Wash separately. Do not bleach. Do not soak.
  • Page 17 © 2019 Bugaboo International BV. BUGABOO, BUGABOO FOX, BUGABOO CAMELEON, BUGABOO BEE, BUGABOO DONKEY, BUGABOO BUFFALO, RUNNER, BUGABOO BOXER and the Bugaboo logos are registered trademarks. The Bugaboo® strollers are patented and design protected. ©2019 Nuna International B.V. Nuna and all associated logos are trademarks.
