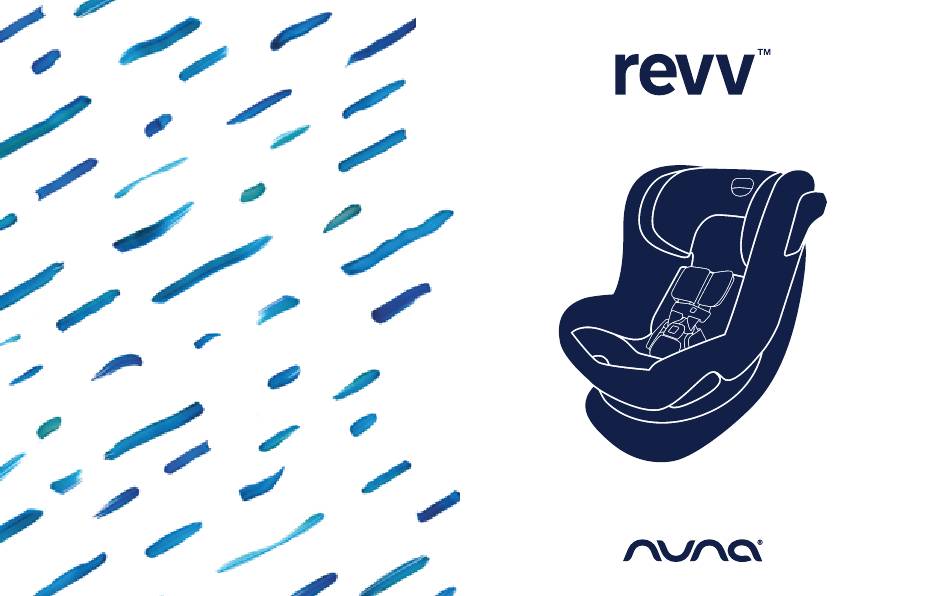

Nuna revv Instructions Manual

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the revv and is the answer not in the manual?

Questions and answers

Summary of Contents for Nuna revv

Page 2 Our products are expertly engineered for safety, with luxury fabrics and sophisticated style. Whatever made you fall in love with Nuna, rest assured your adventures with your little one will be easier from now on, freeing you to enjoy more happy family moments together.
Page 3: Table Of Contents
Child Restraint Installation instructions. Failure to do so can result in serious injury or death. Store instructions in the slot on the back of the seat shell for future use. REVV ™ instructions REVV ™...
Page 4: Product Information/Registration
Send your name, address, e-mail address if available and the In the USA: restraint’s model number and manufacturing date to: infousa@nunababy.com Nuna Baby Essentials Inc. www.nunababy.com 70 Thousand Oaks Blvd. For recall information, call the U.S. Government’s 1.855.NUNA.USA...
Page 5: Child Usage Requirements
The AAP recommends children should ride rear facing for as long as possible, until they reach the maximum weight or height allowed by their seat. For this seat, that maximum is 40 lb (18 kg) or less than 43 in. (1100 mm) REVV ™ instructions REVV ™...
Page 6 DO NOT modify your child restraint or use any accessories or parts WARNING supplied by other manufacturers unless they are approved by Nuna for use with this child restraint. Doing so may be unsafe and may void the DEATH OR SERIOUS INJURY CAN OCCUR, warranty.
Page 7: Car Seat Use After A Crash
Information from nhtsa.gov NEVER leave luggage or other objects unsecured in a vehicle, as they are liable to cause injuries in the event of a collision. REVV ™ instructions REVV ™...
Page 8: Vehicle Compatibility
(LATCH system) to attach this child restraint when restraining a child weighing owner's manual for child restraint installation properly restrained in the rear more than 30 lb (13.6 kg) rear facing or forward facing. instructions. seating positions than in the front seating positions. REVV ™ instructions REVV ™ instructions...
Page 9 (consult your vehicle manual): Other common tether locations move freely. Vehicle (consult your vehicle manual): Tether If the belt cannot be locked using one of these methods, contact Nuna Customer Service Anchor Points for a locking clip. Rear Shelf Back Wall Vehicle...
Page 10 This belt locks only in a crash or sudden stop and should only be used with a belt shortening clip. Contact your vehicle manufacturer if needed. 4 - Airbag/Inflatable Belts 5 - Door Mounted Belts 6 - Lap Belts forward of Seat Bight (where the seat bottom and back meet) REVV ™ instructions REVV ™...
Page 11: Head Support
12 Cup Holder (x2) Head Insert 13 Adjustable Harness Shoulder Harness Buckle Pad (x2) 14 Harness Release Infant Insert (x2) Button Hip Harness Pad (x2) 15 Harness Adjustment Crotch Pad Strap Recline Handle 16 Infant Insert Wedge REVV ™ instructions REVV ™ instructions...
Page 12 30 Lower Anchor Storage Tongue Holder 31 Lower Anchor 21 Belt Positioner Connectors 22 Rotate Position 32 Lower Anchor Belt Button 33 Lower Anchor 23 Recline Position Adjuster Indicator 24 Recline Position Window 20 REVV ™ instructions REVV ™ instructions...
Page 13: Features Usage
To Fasten Buckle, insert buckle tongues firmly into buckle until they click. (2) Pull up on tongues to ensure they are locked. - To Tighten Harness, pull on harness adjustment strap. (1) Place chest clip at child's armpit level after tightening. (2) 22 REVV ™ instructions REVV ™...
Page 14 The infant insert (p.26) is recommended for use with infants who weigh between 5–11 lb (2.3–5 kg). DO NOT use the insert for a child who weighs more than 11 lb. 24 REVV ™ instructions REVV ™...
Page 15 - Pull harness buckle up through slot in bottom of insert. When properly installed, the infant insert will not - Route harness straps through sides of insert. interfere with harness - Push insert firmly into child restraint. straps or harness buckle. 26 REVV ™ instructions REVV ™ instructions...
Page 16 - To remove infant insert wedge, pull the top section of the infant insert forward. - Undo all of the snaps on the infant insert wedge. - Pull up to remove. 28 REVV ™ instructions REVV ™...
Page 17 - Pull out to remove. DO NOT place glass or metal containers or hard or sharp objects in cup holder. In a crash they could cause serious injury. NEVER use cup holder for hot beverages. 30 REVV ™ instructions REVV ™...
Page 18 WARNING: If you are using a lap only belt, you MUST use recline position 5 in both rear facing and forward facing modes. 32 REVV ™ instructions REVV ™...
Page 19 Store lower anchors when not in use. Place one lower anchor connector in each half of the storage compartment. Fold excess belt webbing into compartment. DO NOT cut the lower anchor attachment strap. It permanently secures the lower anchors to the child restraint. 34 REVV ™ instructions REVV ™...
Page 20 - Cover the tether adjuster with tether cover. WARNING: ALWAYS USE TETHER for rear facing forward facing installation, if vehicle is equipped with a tether anchor point and vehicle requirements are met (see vehicle owner's manual). 36 REVV ™ instructions REVV ™ instructions...
Page 21 Ensure the seat is locked in your chosen position by releasing the rotate button and moving side-to-side slightly until you hear a click. NEVER use seat in an unlocked side position when traveling in vehicle. 38 REVV ™ instructions REVV ™...
Page 22 - Lift door release button to open the True Tension ™ door. Follow instructions for vehicle belt routing on p.42. - Close True Tension ™ door by pressing firmly on door until it latches in place. 40 REVV ™ instructions REVV ™ instructions...
Page 23: Child Restraint Installation
- Open the True Tension door. ™ Complete installation using your vehicle's Lap/Shoulder belt (p.44), a compatible vehicle Lap belt only (p. 46), or the Lower Anchor belt (p. 50) 42 REVV ™ instructions REVV ™ instructions...
Page 24 ™ adjustment strap (2). WARNING: Check that child restraint is securely installed before each use. Hold seat at the belt path and move seat in all directions. Seat should move less than 1 inch. 44 REVV ™ instructions REVV ™...
Page 25 - Check the vehicle seat belt, make sure it is not twisted and is laying flat across the rebound panel. - While pushing down firmly on the car seat, pull on the vehicle belt to remove the slack. - Close the True Tension ™ door. 46 REVV ™ instructions REVV ™ instructions...
Page 26 WARNING: Check that child restraint is securely installed before each use. Hold seat at the belt path and move seat in all directions. Seat should move less than 1 inch. 48 REVV ™ instructions REVV ™...
Page 27 - Check the lower anchor belt, make sure it is not twisted and is laying flat across the rebound panel. - While pushing down firmly on the car seat, pull up on the lower anchor adjuster strap to remove the slack. 50 REVV ™ instructions REVV ™...
Page 28 WARNING: Check that child restraint is securely installed before each use. Hold seat at the belt path and move seat in all directions. Seat should move less than 1 inch. WARNING: DO NOT install with both the vehicle seat belt and lower anchor belt. 52 REVV ™ instructions REVV ™...
Page 29: Rear Facing Installation
Tether is properly used and attached to vehicle tether anchor. Seat is securely installed. Hold seat at the belt path and move seat in all directions. Seat should move less than 1 inch. 54 REVV ™ instructions REVV ™ instructions...
Page 30: Forward Facing Installation
Tether is properly used and attached to vehicle tether anchor. Seat is securely installed. Hold seat just below the belt path and move seat in all directions. Seat should move less than 1 inch. 56 REVV ™ instructions REVV ™...
Page 31 (p.32) to position harness AT or just above shoulders. Position harness over child’s shoulders and around child’s waist, and buckle harness. Rear Facing: Forward Facing: Harness AT or just Harness AT or below shoulders just above shoulders 58 REVV ™ instructions REVV ™ instructions...
Page 32 Fasten and position chest clip (p.22) level with child’s armpits (3). A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child's flesh or push the child's body into an unnatural position. 60 REVV ™ instructions REVV ™...
Page 33: Cleaning And Maintenance
Towel dry excess water and allow to air dry. DO NOT use bleach or other harsh chemicals to clean any part of the seat. DO NOT attempt to iron the covers or pads. DO NOT attempt to lubricate the spin mechanism. 62 REVV ™ instructions REVV ™...
Page 34: Softgoods Removal
- Pull head support fabric up and over the head support frame sides. At the same time guide the elastic strap up the back of the head support frame. Remove the head support fabric. 64 REVV ™ instructions REVV ™...
Page 35 - Lift up on the seat cover and remove it from the car seat shell. Nuna Baby Essentials, Inc. Nuna and all associated logos are trademarks. 66 REVV ™...
