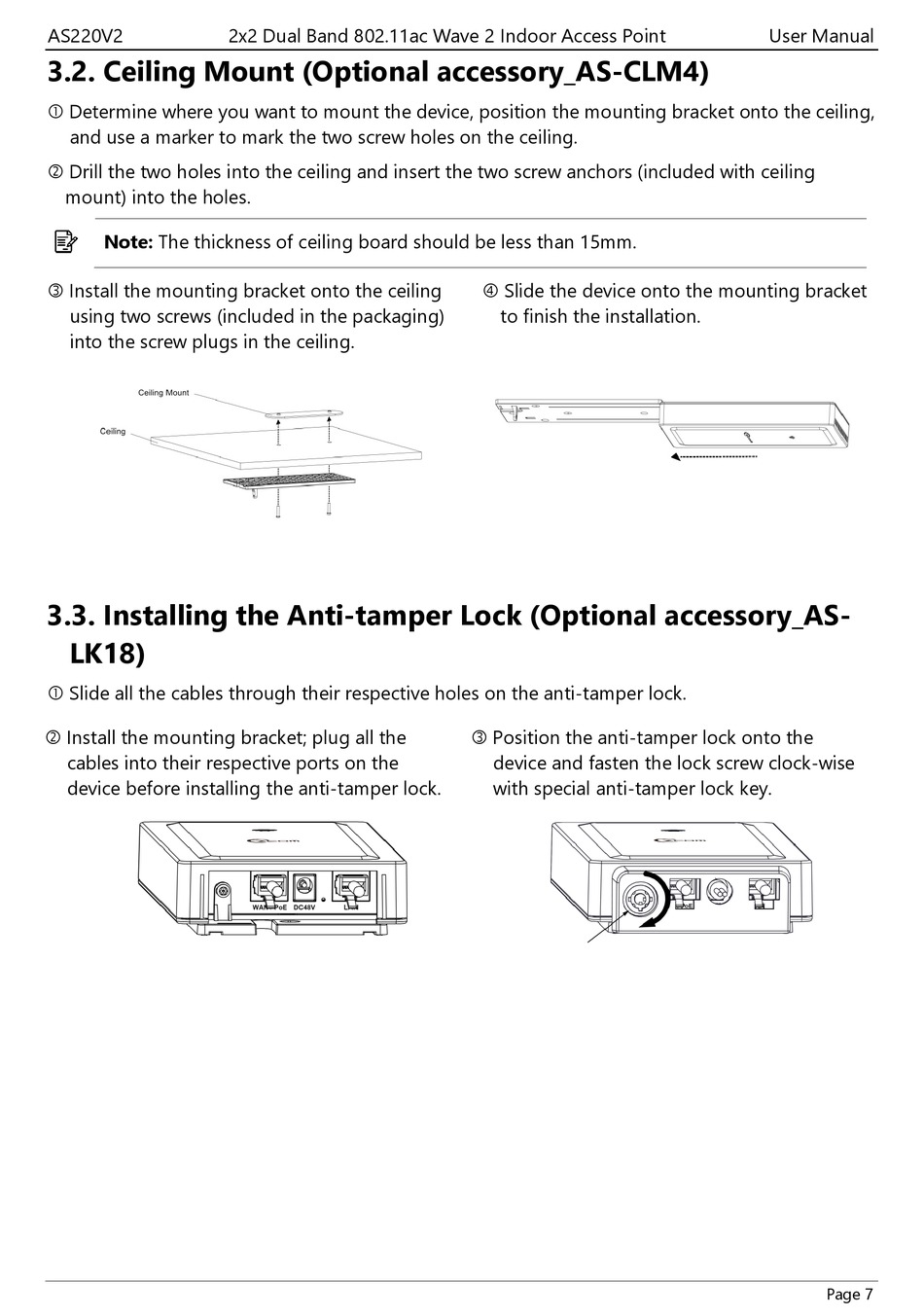

3.2.

Ceiling Mount (Optional accessory_AS-CLM4)

 Determine where you want to mount the device, position the mounting bracket onto the ceiling,
and use a marker to mark the two screw holes on the ceiling.
 Drill the two holes into the ceiling and insert the two screw anchors (included with ceiling
mount) into the holes.
Note: The thickness of ceiling board should be less than 15mm.
 Install the mounting bracket onto the ceiling
using two screws (included in the packaging)
into the screw plugs in the ceiling.
3.3. Installing the Anti-tamper Lock (Optional accessory_AS-
LK18)
 Slide all the cables through their respective holes on the anti-tamper lock.
 Install the mounting bracket; plug all the
cables into their respective ports on the
device before installing the anti-tamper lock.
2x2 Dual Band 802.11ac Wave 2 Indoor Access Point
 Slide the device onto the mounting bracket
to finish the installation.
 Position the anti-tamper lock onto the
device and fasten the lock screw clock-wise
with special anti-tamper lock key.
