Original Operating Instructions
BPR 35/60 D
S/N 101 695 24 1001>

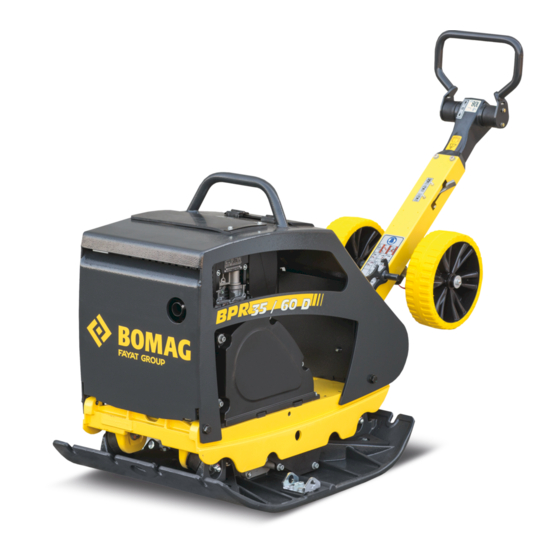

Reversible vibratory plate
www.discount-equipment.com
008 204 48 EN
© 03/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOMAG BRP 35/60 D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fayat Group BOMAG BRP 35/60 D

  • Page 1 Operating Instruction Maintenance Instruction Original Operating Instructions BPR 35/60 D S/N 101 695 24 1001> Reversible vibratory plate www.discount-equipment.com 008 204 48 EN © 03/2019...
  • Page 2 Discount-Equipment.com is your online resource for quality parts & equipment. Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101 Need parts? Click on this link: http://www.discount-equipment.com/category/5443-parts/ choose one of the options to help get the right parts and equipment you are looking for.
  • Page 3 WARNING: Breathing diesel engine exhaust exposes you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always start and operate the engine in a well-ventilated area. If in an enclosed area, vent the exhaust to the outside. Do not modify or tamper with the exhaust system.
  • Page 4: Table Of Contents

    Table of contents Table of contents Introduction............................7 1.1 Foreword............................8 1.2 Machine type plate and engine type plate................10 Technical data............................11 2.1 Noise and vibration data......................14 2.1.1 Noise data..........................14 2.1.2 Vibration data..........................14 Concerning your safety........................15 3.1 Basic prerequisites........................
