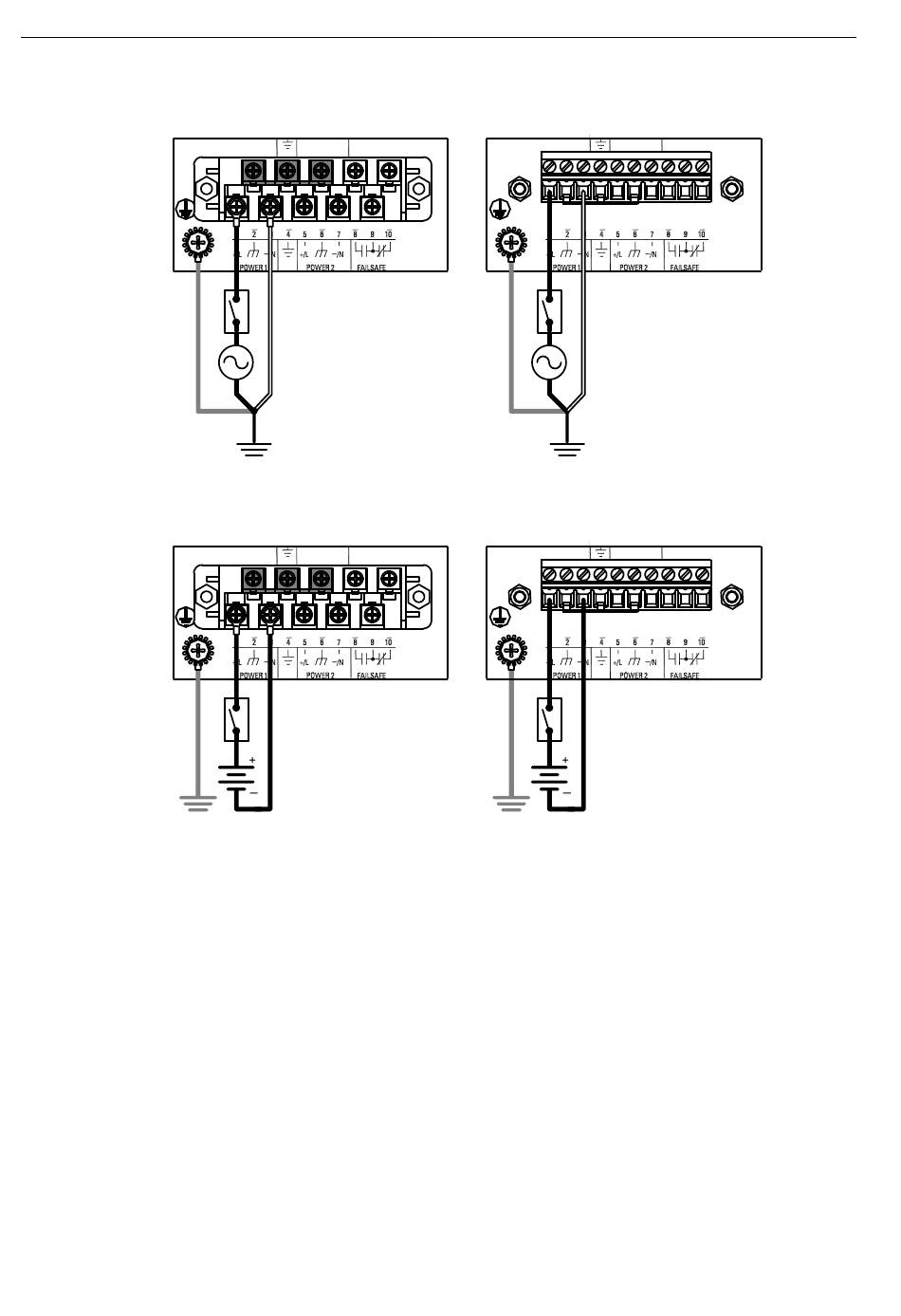

Figure 2.7
Figure 2.8
RUGGEDCOM RSG2200F
Installation Manual, 01/2020, C79000-G8976-1346-06
Single AC Power Supply
Single DC Power Supply
Installing the Device
2.5.2 Wiring Examples
17
