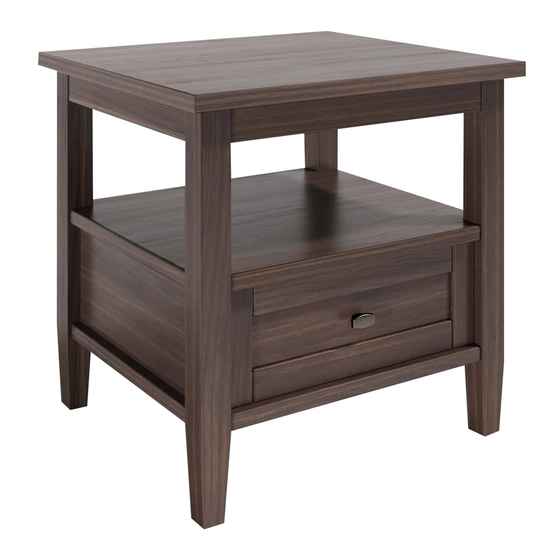

Simpli Home WARM SHAKER END TABLE AXWSH002 Manual
  1. Manuals
  2. Brands
  3. Simpli Home Manuals
  4. Indoor Furnishing
  5. WARM SHAKER END TABLE AXWSH002
  6. Manual

Simpli Home WARM SHAKER END TABLE AXWSH002 Manual

Hide thumbs Also See for WARM SHAKER END TABLE AXWSH002:

Advertisement

Quick Links

Download this manual
S IMP
I
I
H O M E
L I F E B Y D E S I G N
WARM SHAKER / NORFOLK / LEXINGTON
END TABLE
MODEL #
AXWSH002
1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the WARM SHAKER END TABLE AXWSH002 and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home WARM SHAKER END TABLE AXWSH002

Summary of Contents for Simpli Home WARM SHAKER END TABLE AXWSH002

  • Page 1 S IMP H O M E L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON END TABLE MODEL # AXWSH002 1/14...
  • Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/14...
  • Page 3 L I F E B Y D E S I G N ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/14...

  • Page 4: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXWSH002 PARTS DESCRIPTION SIDES TOP SHELF QTY 1 QTY 1 PAIR QTY 1 BOTTOM SHELF BACK DRAWER FRONT QTY 1 QTY 1 QTY 1 DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 1 PAIR QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXWSH002 HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 14 QTY 8 SETS Required - Flathead screwdriver Phillips screwdriver HANDLE WOOD DOWEL Rubber mallet M4 X 25 mm Ø8 X 30 mm Not Included QTY 1 SET...
  • Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH002 7/14...
  • Page 8 ASSEMBLY MODEL # AXWSH002 STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front F . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides G . 3. Insert 2 Cam Lock 2 into pre-drilled holes on each Drawer Side G . 4.
  • Page 9 ASSEMBLY MODEL # AXWSH002 STEP 3 1. Align Drawer Back H with Drawer Bottom I and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
  • Page 10 ASSEMBLY MODEL # AXWSH002 STEP 5 1. Insert 4 Dowels 5 into pre-drilled holes on the Back E . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align Dowels 5 with pre-drilled holes of Sides B . 4.
  • Page 11 ASSEMBLY MODEL # AXWSH002 STEP 6 1. Attach Bottom Shelf D to Sides B using Allen Key Screws 1 through pre-drilled holes. 11/14...
  • Page 12 ASSEMBLY MODEL # AXWSH002 STEP 7 1. Insert 2 Dowels 5 into pre-drilled holes on each Side B . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach 4 Cam Lock Pins 2 to Top A . 4.

  • Page 13: Warranty

    L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
  • Page 14 S IMP H O M E L I F E B Y D E S I G N Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
